DeVilbiss TLC-555 - Warranty

Page 4 SB-4-391-N
Apply sealant to
first two threads
(Loctite #262).
7
1
2
3
4
5
6
Parts List
Ind.
Ref. Replacement Parts
No. Part No. Description Req.
1*  Adapter,1/2"NPS(M) 1
 2*  Nut,3/8"NPS(F) 1
3* Cam 1
 4* TGC-407-1-K3 DripFreeValve&Gasket(Kitof3) 1
 5* TGC-9-K5 **TriSeal®LidGasket(Kitof5) 1
 6 TGC-404 LidAssembly(Quart) 1
  TGC-431 LidAssembly(Pint)
 7 KR-428-2 SuctionCupAssy.(Quart) 1
  TLC-401 SuctionCupAssy.(Teon®,Quart)
  TGC-432 SuctionCupAssy.(Pint)
*KK-5007RepairKitincludesRef.Nos.1-5.Repairkitcontainsenough
parts to repair one complete assembly.
Sufx-K3designatesakitofmultipleparts.Example:TGC-407-1-K3isa
kit of 3 drip free valves.
** Registered Trademark of Tri-Seal International.
Yoke

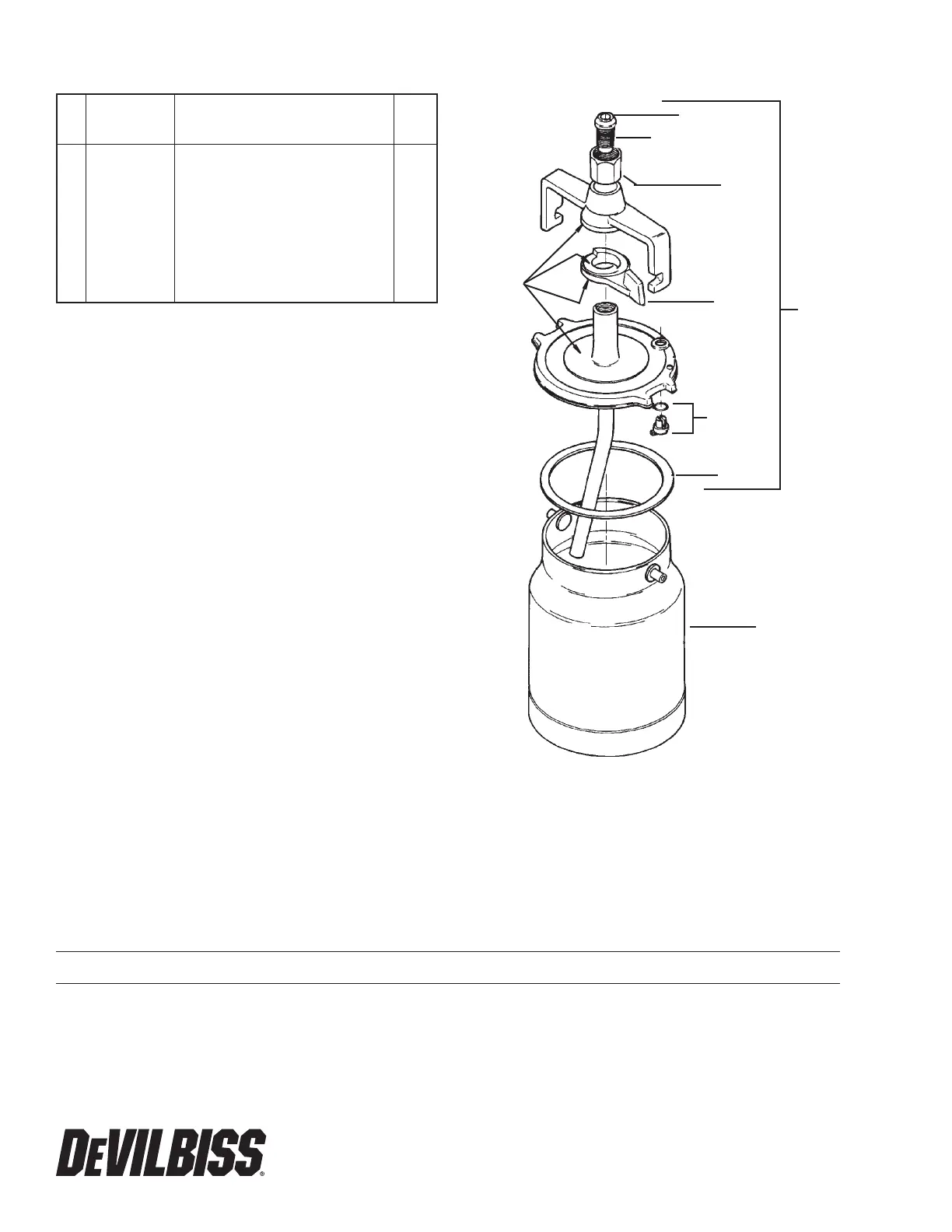

Figure 4
Keep
these
surfaces
clean.
