C1200 DVB-C Meter Operation Manual
8

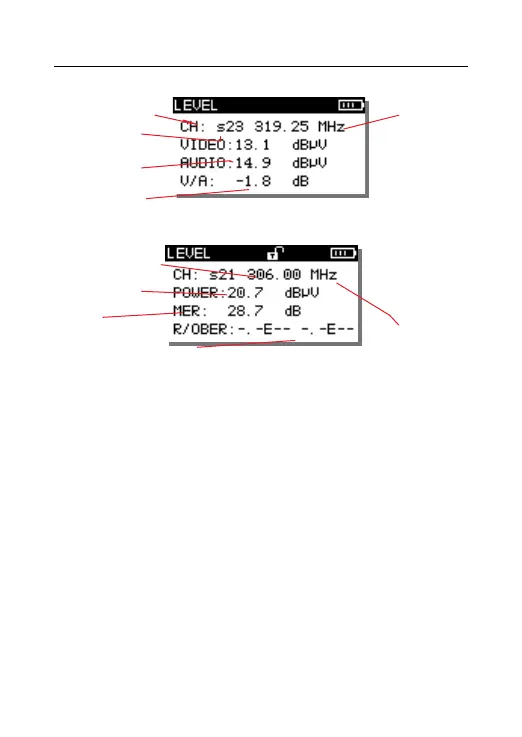

Figure 4-1-1 Analog Signal Measurement
Figure 4-1-2 Digital Signal Measurement Interface
Press “Up and Down” to select CH,press “Left and
Right” to edit the Channel parameters.
4.2 Tilt
Tilt/Level list test is the effective solution to check the
flatness and splitter’s attenuation of cable system,
C1200 can get levels of 8 channels and observe the
measurement result and graph easily.
Frequency
Channel Name
Video Level
Audio Level
Video/Audio
Channel Name
Power Level
MER
PRE
-BER/POST-BER
Frequency
