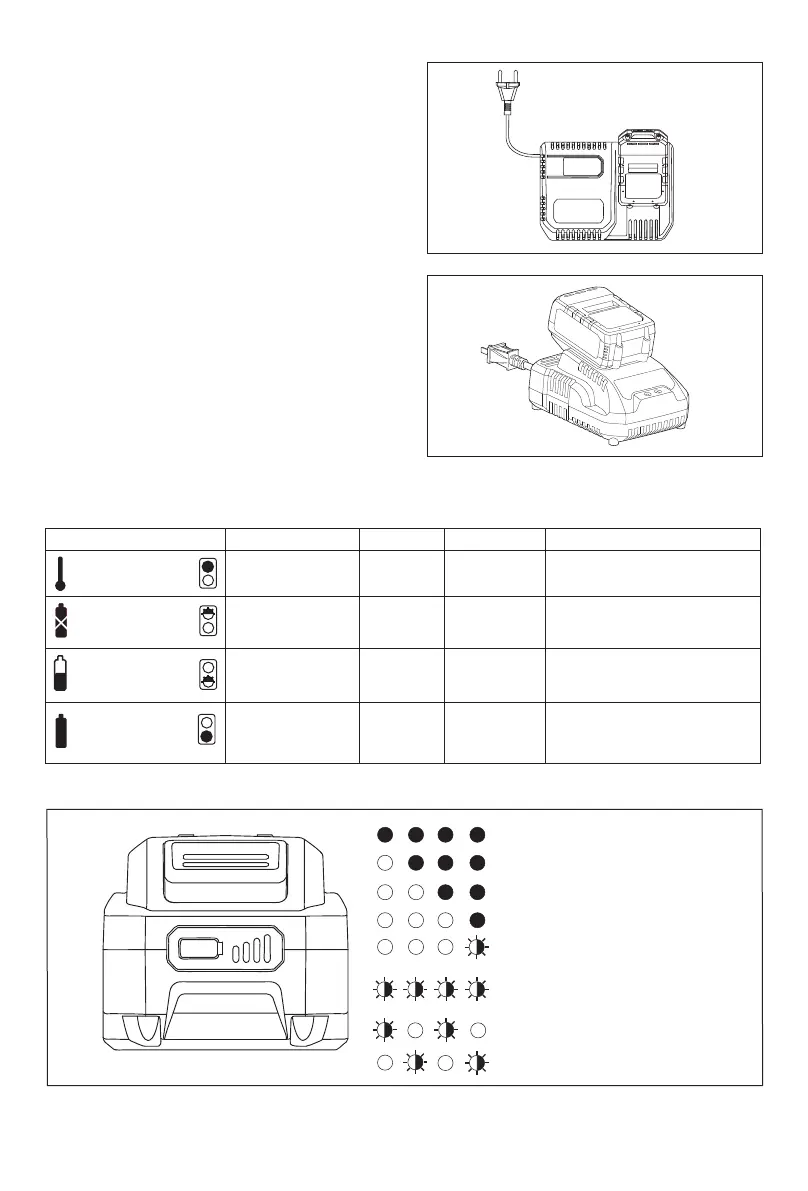

LED FUNCTIONS OF CHARGER 5340
3) Align the raised ribs of the battery pack with
the slot in the charger.
4) Slide the battery pack onto the charger .
5) The charger will communicate with the
battery pack to evaluate the condition of the
battery pack.
6) The POWER BAR LED lights will cycle from
left to right during charging. This is part of
the normal charging operation. (With 5339
Charger) During the charging,the green
LED on the charger will frash. (With 5340
Charger)
7) After charging is completed, the power bar
LED on the charger will show OK.(With 5339
Charger) After charging is completed, the
green LED on the charger will be ON.(With
5340 Charger)
8) The battery pack will fully charge if left on
the charger, but it will not overcharge.
LED INDICATOR BATTERY PACK RED LED GREEN LED ACTION
HI/LO TEMP.
(SEE MANUAL)
Hot/Cold battery On Off
Charging will begin when
battery returns to 5
o
C-40
o
C
DEFECTIVE
BATTERY
Defective Flashing Off
Battery pack or Charger is
defective
BATTERY
CHARGING
Charging Off Flashing Charging
BATTERY
FULL
Fully charged Off On
Charging is complete
Maintenance charging
80% - 100% charge
60% - 79% charge
40% - 59% charge
20% - 39% charge
Under 20% charge
Completely discharged
or overloaded
High/low temperature
5339-Li-20F
5340-Li-20R
Remarks: chargers choose one from two
