DeWalt D24000 User Manual

English
5

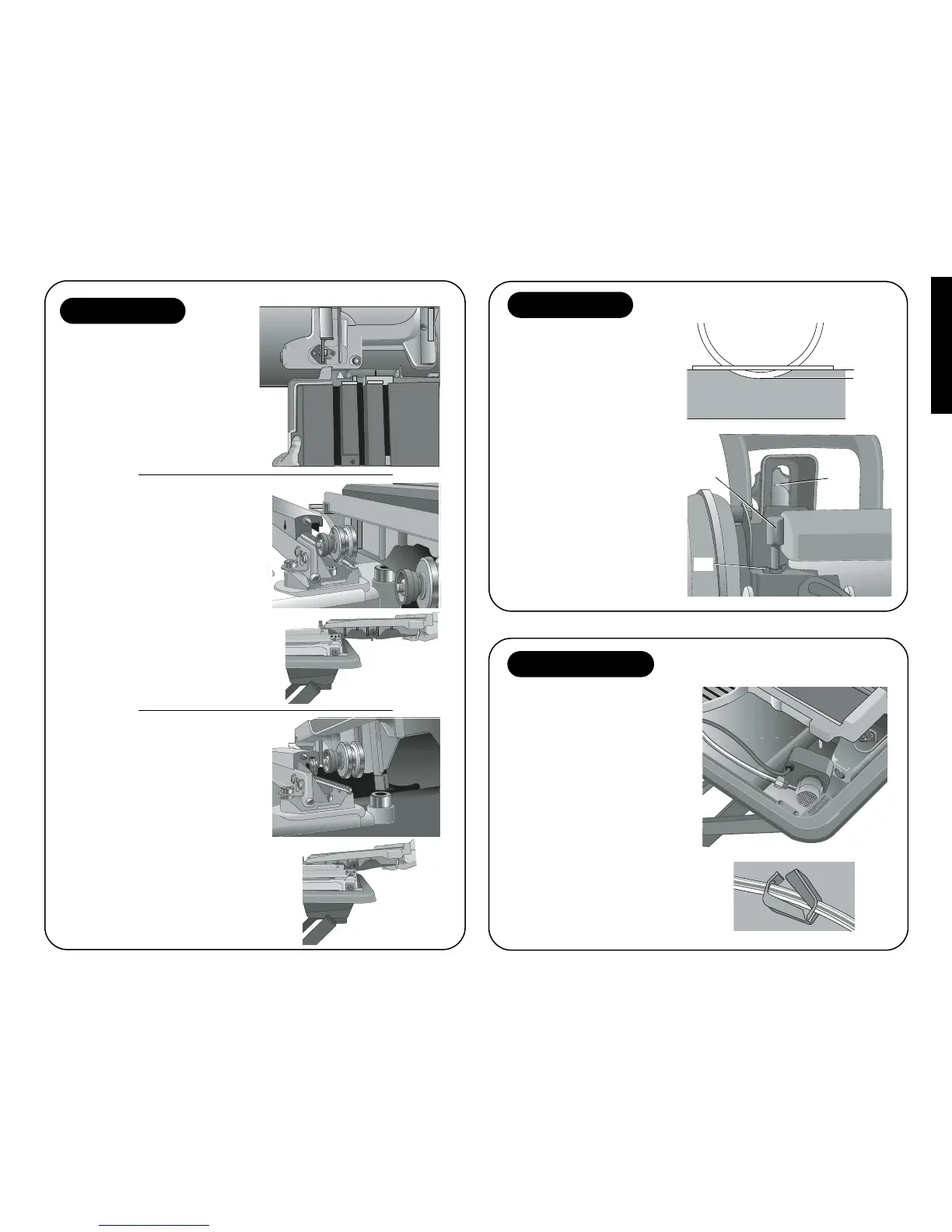

3. Attach the cutting cart to the rails.
For further details, refer to
Assembly in the
Instruction Manual.
NOTE: Make sure the cart lock is
in full open position.
a. Align the arrow on the rear of
the cutting cart with the round
rail on the frame of the saw.
b. Place the rear roller assembly
onto the round rail.
c. Slide the cutting cart assembly
onto the rail system. Tilt the
front of the cart upward slightly
to clear the cart stop.
Step 3
5. Place the saw in the water pan.
The water pan drain hole should
be in the front position.
6. Attach the water pump to the
water line and insert pump power
cord into the socket. Position
pump properly in pan, as shown.
7. Fill the pan with 5 gallons of
water. The pump should be sub-
merged.
NOTE: For longer pump life,
always place the pump in a clean
water source.
8. Turn saw on. If lower water flow is
desired, use the flow restrictor on
the water line.
Step 4
Steps 5, 6, 7, 8
4. The outer rim of the cutting
wheel should always be at
least 3/16" (5mm) below the
cart surface. Push cart entirely
through the cutting wheel
before cutting to be sure that
the cutting wheel depth is
properly adjusted to avoid
cutting the cart. Adjust the
depth of cut knob (BB) and
tighten the locking wing nut
(MM), then the head lock knob
(D).
For further details, refer
to Adjustments in
the Instruction Manual.
3/16" (5MM)
BB
MM
D

DeWalt D24000 Specifications

General

Input power	1600 W
Power source	AC
Blade bore	25.4 mm
Blade diameter	250 mm
Idle speed (max)	4200 RPM
Sound pressure level	103 dB

Weight and Dimensions

Depth	860 mm
Width	690 mm
Weight	32000 g
