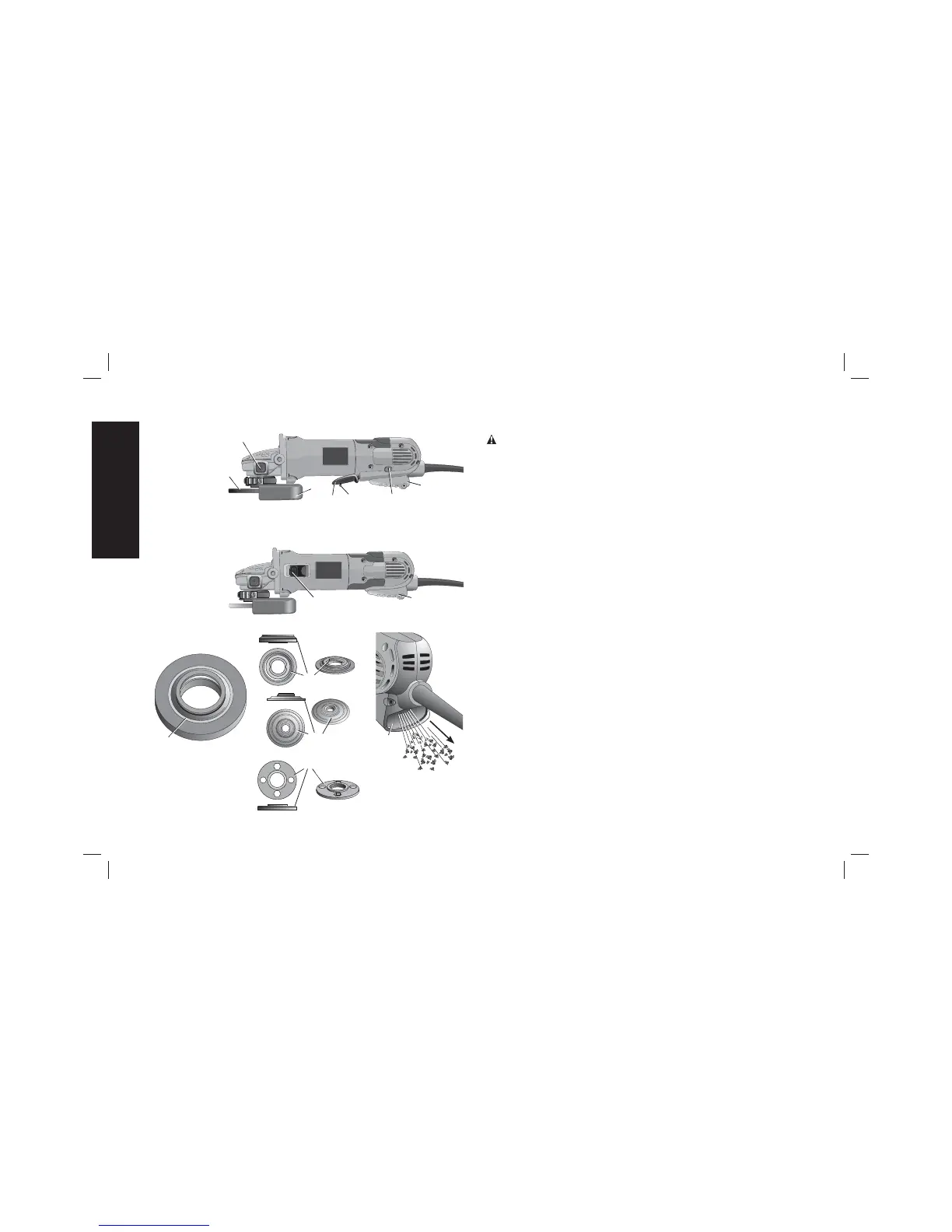

COMPONENTS (Fig. 1)
WARNING: Never modify the power tool or any part of it. Damage
or personal injury could result.
A. Paddle Switch: D28114, G2. Stamped Steel Quick-Change
D28144, D28144N Backing Flange (depressed
B. Lock-Off Lever center wheels only):
C. Spindle Lock Button D28140, D28144, D28144N
D. Yellow Rubber Ring H. Threaded Clamp Nut
E. Anti-Vibration Side Handle I1. Type 27 Guard
(not shown) I2. Type 1 Guard (not shown):
F. 5" (127mm) Grinding Wheel D28140, D28144, D28144N
(Type 27): D28114, J. Lock On Button:
D28131, D28114N D28114, D28144
F1. 6" (152mm) Grinding Wheel K. Dust Ejection System™ (DES)
(Type 1): D28140, L. Slider Switch: D28131, D28140
D28144, D28144N
G1. Quick-Change Backing
Flange
INTENDED USE
The D28114, D28114N, D28131, D28140, D28144, D28144N heavy-
duty angle grinders have been designed for professional grinding at
various work sites (i.e., construction sites). DO NOT use under wet
conditions or in presence of flammable liquids or gases.
These heavy-duty angle grinders are professional power tools. DO
NOT let children come into contact with the tool. Supervision is
required when inexperienced operators use this tool.
G1
A
B
C
F
I
J
FIG. 1
D28114
D28114N
D28144
D28144N
D28131
D28140
L
K
K
K
D
H
G2
