DeWalt D28114 User Manual

English
12
(Type 27 and 29) and wire brushes. Grinding and cutting with wheels
other than Type 27 and 29 require different accessory guards not
included with tool. Mounting instructions for these accessory guards
are included in the accessory package.

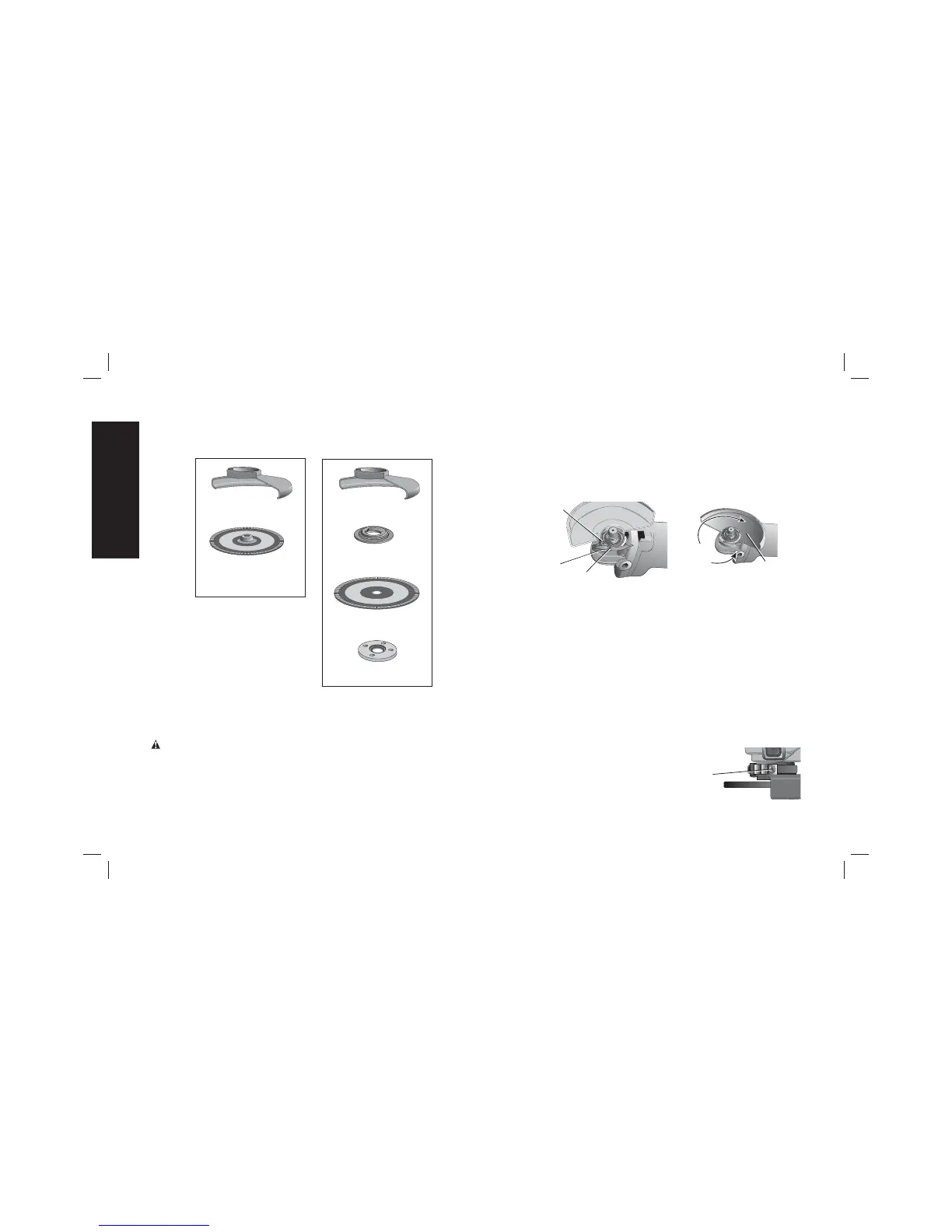

1. Open the guard latch (M). Align the lugs (N) on the guard with the
slots (O) on the gear case.
FIG. 3
M
O
N
I
2. Push the guard down until the guard lugs engage and rotate freely
in the groove on the gear case hub.
3. With the guard latch open, rotate the guard (I) into the desired
working position. The guard body should be positioned between
the spindle and the operator to provide maximum operator
protection.
4. Close the guard latch to secure the guard on the gear case. You
should not be able to rotate the guard by hand when the latch
is closed. Do not operate the grinder with a loose guard or the
clamp lever in open position.
5. To remove the guard, open the guard latch, rotate the guard so
that the arrows are aligned and pull up on the guard.
NOTE: The guard is pre-adjusted to the
P
FIG. 4
diameter of the gear case hub at the factory.
If, after a period of time, the guard becomes
loose, tighten the adjusting screw (P) with
clamp lever in the closed position.
(114.3mm) and 5" (127mm)
Sanding Flap Discs
hubbed sanding
flap disc
Quick-Change
backing flange
non-hubbed sanding
flap disc
threaded clamp nut
Type 27 guard
Type 27 guard
Mounting Guard
MOUNTING AND REMOVING GUARD (FIG. 3, 4)
CAUTION: Guards must be used with all grinding wheels, sanding
flap discs, wire brushes, and wire wheels. The tool may be used
without a guard only when sanding with conventional sanding discs.
Some D
EWALT models are provided with a guard intended for use
with depressed center wheels (Type 27) and hubbed grinding wheels
(Type 27). The same guard is designed for use with sanding flap discs
