DeWalt D55273 User Manual

2
English
200
180
160
140
120
100
80
60
40
20
A. Pump Air Intake Filter
B. Engine Air Filter
C. Engine On/Off Switch
D. Air Tank Pressure Gauge
E. Regulated Pressure Gauge
F. Pressure Regulator
G. Air Outlet
H. Unloader Valve
I. Safety Valve
J. Air Tank Drain Valve
Pump Specifi cations
Inline, vertical twin cylinder, aluminum head
Single stage
Oil lubricated
Cast iron crankcase, cylinder and head
Bore: 2.756" (70 mm)
Stroke: 2.26" (57.5 mm)
Weight: 46 lbs. (20.86 kg)
Oil Capacity: 24.7 oz. (730 mL)
D55273 Air Compressor
K. Throttle Control
L. Pump Oil Dipstick
M. Pump Oil Drain Plug
N. Belt Tensioning Bolt
O. Low Oil Shut Down
P. Handle
Q. Handle Bracket
Engine Specifi cations
Honda GX160
Internal Combustion
4-stroke
3450 RPM
I
B
A
E
C
K
O
M
L
G
F
D
H
Q
P

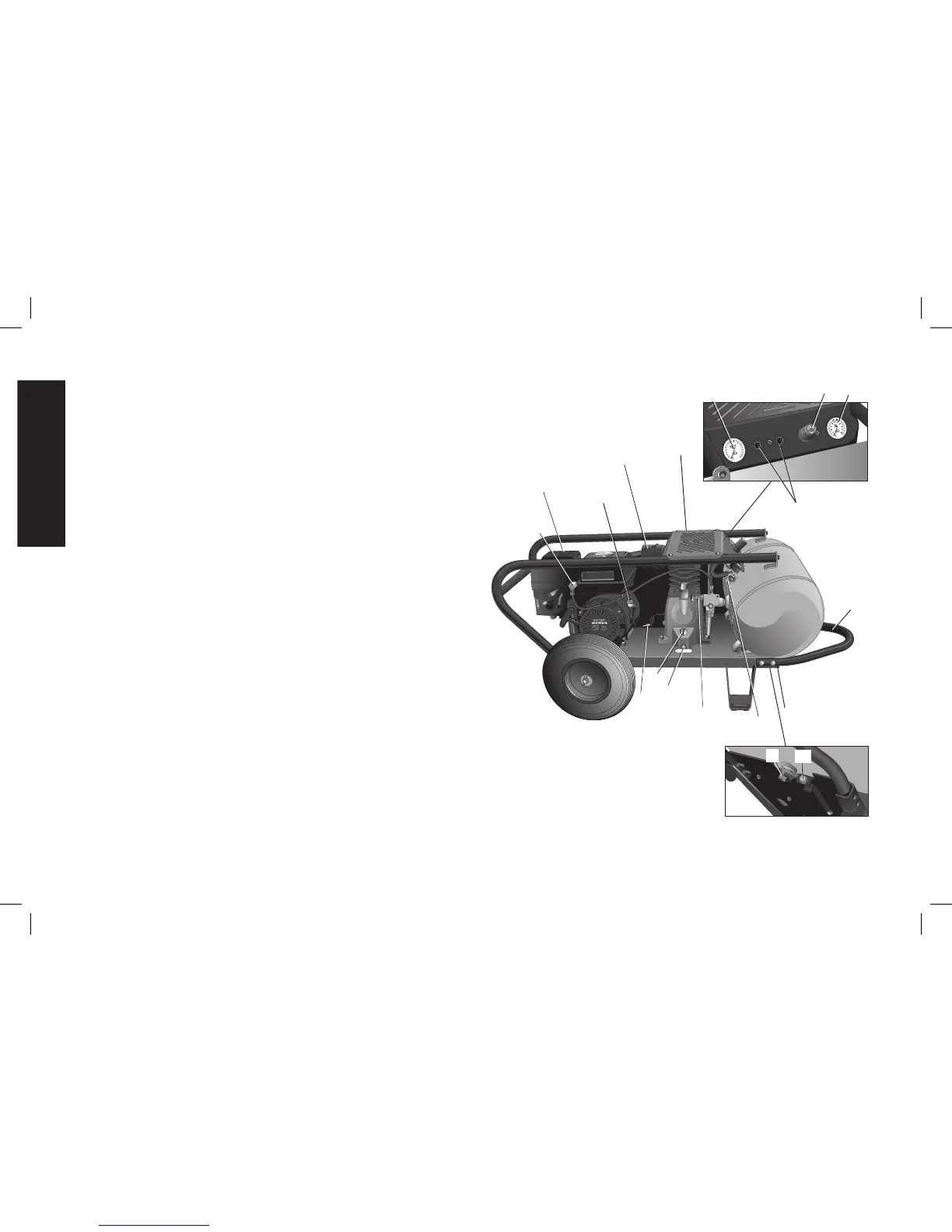

FIG. 1
NOT A
STEP
N
J

DeWalt D55273 Specifications

General

Brand	DeWalt
Model	D55273
Category	Air Compressor
Language	English
