Replacing the Saw Chain (Fig. A, H)

CAUTION: Sharp chain. Always wear protective
gloves when handling the chain. The chain is sharp
and can cut you when it is notrunning.

WARNING: Sharp moving chain. To prevent
accidental operation, ensure that battery is removed
from the tool before performing the following
operations. Failure to do this could result in serious
personalinjury.
• Flip up locking tab and rotate the bar adjust locking
knob
8
counterclockwise to release chaintension.
• Remove sprocket cover
6
as described in Installing the
Guide Bar and Saw Chainsection.
• Lift the worn saw chain
5
out of the groove in the
guide bar
4
.
• Place the new chain in the slot of the guide bar, making
sure the saw teeth are facing the correct direction by
matching the arrow on the chain with the graphic on
the sprocket cover
6
shown in FigureH.
• Follow instructions for Installing the Guide Bar and
SawChain.

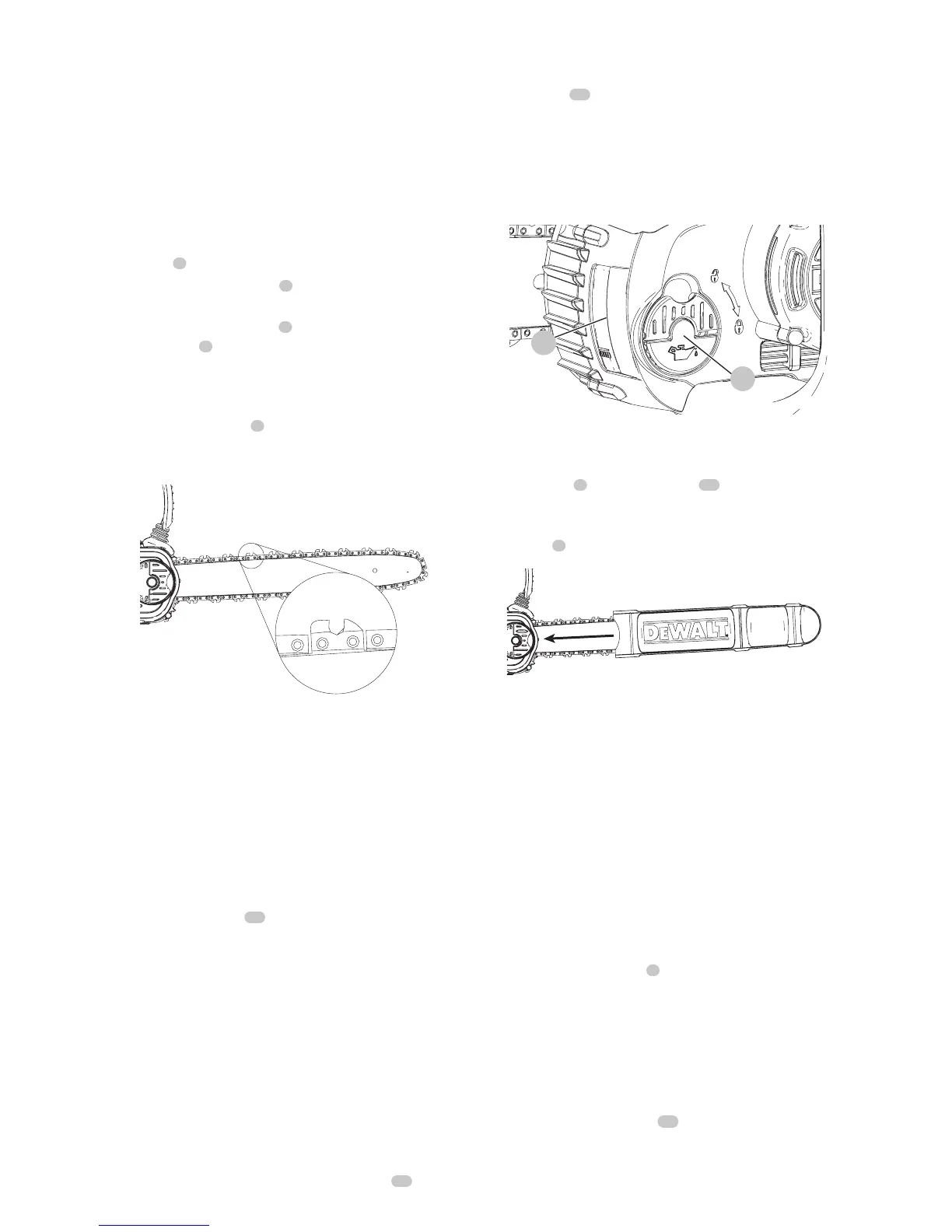

Fig. H
Replacement chain and bar are available from your
nearest
DeWALT servicecenter.
• DCCS670 requires replacement chain # DWRC1600,
service part number 90618541. Replacement 16” bar,
service part number90618542.
Saw Chain and Guide Bar Oiling (Fig. I)
Auto Oiling System
This chain saw is equipped with an auto oiling system that
keeps the saw chain and guide bar constantly lubricated.
The oil level indicator
10
shows the level of the oil in the
chain saw. If the oil level is less than a quarter full, remove
the battery from the chain saw and refill with the correct
type of oil. Always empty oil tank when finishedcutting.
NOTE: Use a high quality bar and chain oil for proper chain
and bar lubrication. As a temporary substitute, a non-
detergent SAE30 weight motor oil can be used. The use of
a vegetable based bar and chain oil is recommended when
pruning trees. Mineral oil is not recommended because it
may harm trees. Never use waste oil or very thick oil. These
may damage yourchainsaw.
Filling the Oil Reservoir
• Flip down locking lever and unscrew counterclockwise
a quarter turn and then remove the oil cap
16
. Fill
the reservoir with the recommended bar and chain oil
until the oil level has reached the top of the oil level
indicator
10
.
• Refit the oil cap and tighten clockwise a quarter turn.
Flip up locking lever to its lockedposition.
• Periodically switch the chain saw off and check the oil
level indicator to ensure the bar and chain are being
properlyoiled.
Fig. L
16
10
Transporting Saw (Fig. A, J)
• Always remove the battery from the tool and cover the
guide bar
4
with the scabbard
11
(see FigureJ) when
transporting thesaw.
• Engage chain brake by pushing chain brake / front hand
guard
3
forward.
Fig. J
OPERATION

WARNING: To reduce the risk of serious personal
injury, turn unit off and remove the battery pack
before making any adjustments or removing/
installing attachments or accessories. An
accidental start-up can causeinjury.
Installing and Removing the Battery Pack
(Fig. K, L)
NOTE: For best results, make sure your battery pack is
fullycharged.
To Install the Battery Pack into the Tool
1. Align the battery pack
7
with the rails inside the tool
(see FigureK).
2. Slide it into the tool until the battery pack is firmly
seated and ensure that you hear the lock snap
intoplace.
To Remove the Battery Pack from the
Tool
1. Press the release button
15
and firmly pull the battery
pack out of the toolhandle (see FigureL).
2. Insert battery pack into the charger as described in the
charger section of thismanual.

DeWalt DCCS670 Specifications

General

Bar Length	16 inches
Power Source	Battery
Battery Voltage	60 V
Chain Pitch	3/8 inch
Automatic Oiler	Yes
Tool-Free Chain Tensioning	Yes
Battery Compatibility	DeWalt 60V FlexVolt
Chain Speed	25.2 m/s
Weight	12.2 lbs (without battery)
Chain Gauge	0.043 inch
