Always start a cut with
the chain running at full
speed.
• Placethebottomspike
(R) of the chain saw
behind the area of the
initial cut as shown in
.
• Turnthechain sawon
then rotate the chain
and bar down into the
tree, using the spike as a hinge.
• Oncethechainsawgetstoa45degreeangle,levelthechainsaw
again and repeat steps until you cut fully through.
• make a
cut from the top (overbuck), but avoid cutting the earth as this will
dull your saw quickly.
•   

First, cut 1/3 the
diameter from the
underside (underbuck).
Then make the finishing
cut by overbucking to
meet the first cut.
•   When
  
ends
First, cut 1/3
down from the
top overbuck.
Then make the
finished cut by
underbucking
the lower 2/3 to
meet the first cut.
•  always stand on the uphill side of the log. When
“cutting through”, to maintain complete control reduce the cutting
pressure near the end of the cut without relaxing your grip on the
chain saw handles. Don’t let the chain contact the ground. After
completing the cut, wait for the saw chain to stop before you move
the chain saw. Always stop the motor before moving from cut to cut.

Use only mild soap and damp cloth to clean the tool. Do not use
solvents to clean the plastic housing of the saw. Never let any liquid
get inside the tool; never immerse any part of the tool into a liquid.
IMPORTANT: To assure product SAFETY and RELIABILITY,
repairs, maintenance and adjustment should be performed
by a DeWALT authorized service center, always using identical
replacement parts.
Regular maintenance ensures a long effective life for your chain saw.

After every few hours of use, remove the sprocket cover, guide bar
and chain and clean thoroughly using a soft bristle brush. Ensure oiling
hole on bar is clear of debris. When replacing dull chains with sharp
chains it is good practice to flip the chain bar from bottom to top.

CAUTION: 
The chain is sharp and can cut
you when it is not running.
WARNING:

 Failure to do
this could result in serious personal injury.
NOTE: The cutters will dull immediately if they touch the ground or
a nail while cutting.
R
CUT FROM TOP
(OVERBUCK)
AVOID CUTTING EARTH

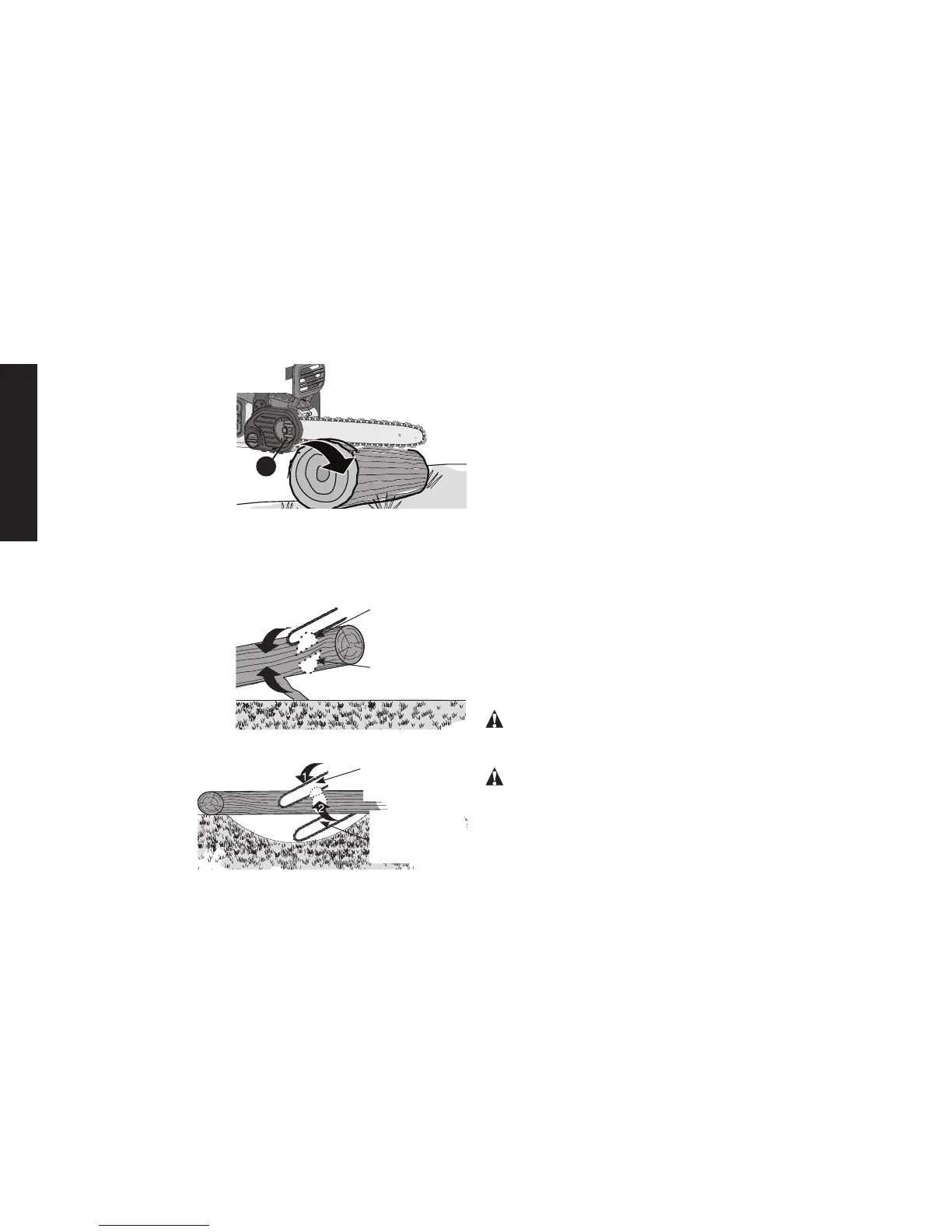

FIG. 20
1
1
2
2nd CUT OVERBUCK
(2/3DIAMETER)
TO MEET 1st CUT
(TO AVOID PINCHING)
1st CUT UNDERBUCK
(1/3 DIAMETER)
AVOID SPLINTERING
FIG. 21
2nd CUT UNDERBUCK
(2/3 DIAMETER)
TO MEET 1st CUT
(TO AVOID PINCHING)
1st CUT OVERBUCK
(1/3 DIAMETER)
TO AVOID SPLINTERING
FIG. 22
