ENGLISH
31
squeeze the trigger, the faster the tool will operate.
For maximum tool life, use variable speed only for starting
holes orfasteners.
NOTE: Continuous use in variable speed range is not
recommended. It may damage the switch and should
beavoided.
Forward/Reverse Control Button (Fig. A)
A forward/reverse control button
2
determines the
direction of the tool and also serves as a lock off button.
To select forward rotation, release the trigger switch and
depress the forward/reverse control button on the right side
of the tool.
To select reverse, depress the forward/reverse control
button on the left side of the tool. The center position of
the control button locks the tool in the off position. When
changing the position of the control button, be sure the
trigger isreleased.
NOTE: The first time the tool is run after changing the
direction of rotation, you may hear a click on start up. This is
normal and does not indicate aproblem.
Worklight (Fig. A)
There is a worklight
3
located under the torque adjustment
collar
4
. The worklight will be activated when the trigger
switch issqueezed.
NOTE: The worklight is for lighting the immediate work
surface and is not intended to be used as aflashlight.
Torque Adjustment Collar (Fig. C)
The torque adjustment collar
4
is clearly marked with
numbers and a drill bit symbol. The collar should be rotated
until the desired setting is located at the top of the tool.
Locators are provided in the collar to eliminate the guess
work when selecting fastening torque. The higher the
number on the collar, the higher the torque and the larger
the fastener which can be driven. To lock the clutch for
drilling operations, move to the drill bitposition.
NOTE: When using the drill/driver for drilling holes, be sure
that the torque adjusting collar is set so the figure of the drill
is aligned with the center line on the top of the tool. Failure
to do this will allow the clutch to slip while attempting
todrill.

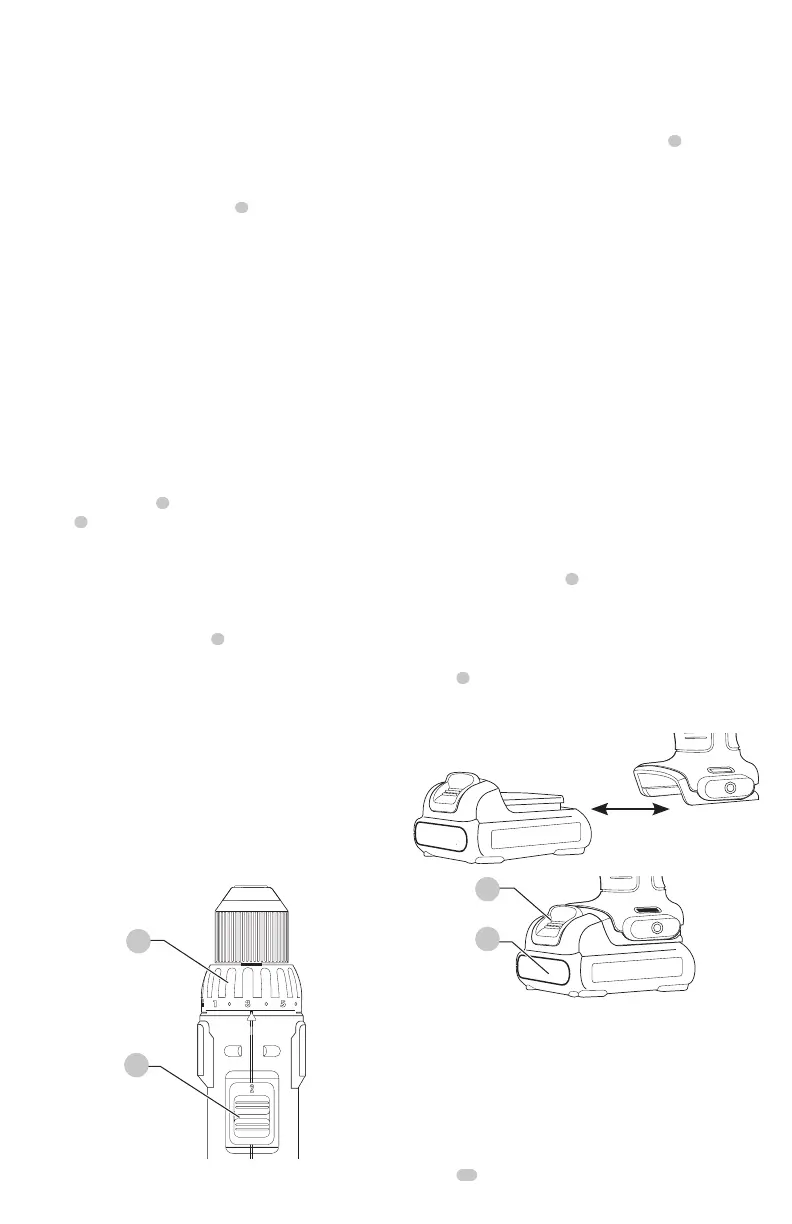

Fig. C
4
5
Dual Range Gearing (Fig. C)
The dual range feature of your driver/drill allows you to shift
gears for greaterversatility.
To select the low speed, high torque setting, turn the tool
off and permit to stop. Slide the gear shifter
5
forward
(towards the chuck). To select the high speed, low torque
setting, turn the tool off and permit to stop. Slide the gear
shifter back (away from chuck).
NOTE: Do not change gears when the tool is running. If you
are having trouble changing gears, make sure that the dual
range gear shifter is either completely pushed forward or
completely pushedback.
OPERATION
WARNING: Always observe the safety instructions
and applicableregulations.
WARNING: To reduce the risk of serious personal
injury, turn unit off and remove the battery pack
before making any adjustments or removing/
installing attachments or accessories. An
accidental start-up can causeinjury.
Installing and Removing the Battery Pack
(Fig. D)
NOTE: For best results, make sure your battery pack is
fullycharged.
To install the battery pack
8
into the tool handle, align the
battery pack with the rails inside the tool’s handle and slide
it into the handle until the battery pack is firmly seated in
the tool and ensure that it does notdisengage.
To remove the battery pack from the tool, press the release
button
7
and firmly pull the battery pack out of the tool
handle. Insert it into the charger as described in the charger
section of thismanual.
Fig. D
7
8
Proper Hand Position (Fig. E)
WARNING: To reduce the risk of serious personal injury,
ALWAYS use proper hand position asshown.
WARNING: To reduce the risk of serious personal
injury, ALWAYS hold securely in anticipation of a
suddenreaction.
Proper hand position requires one hand on the main
handle
11
.
