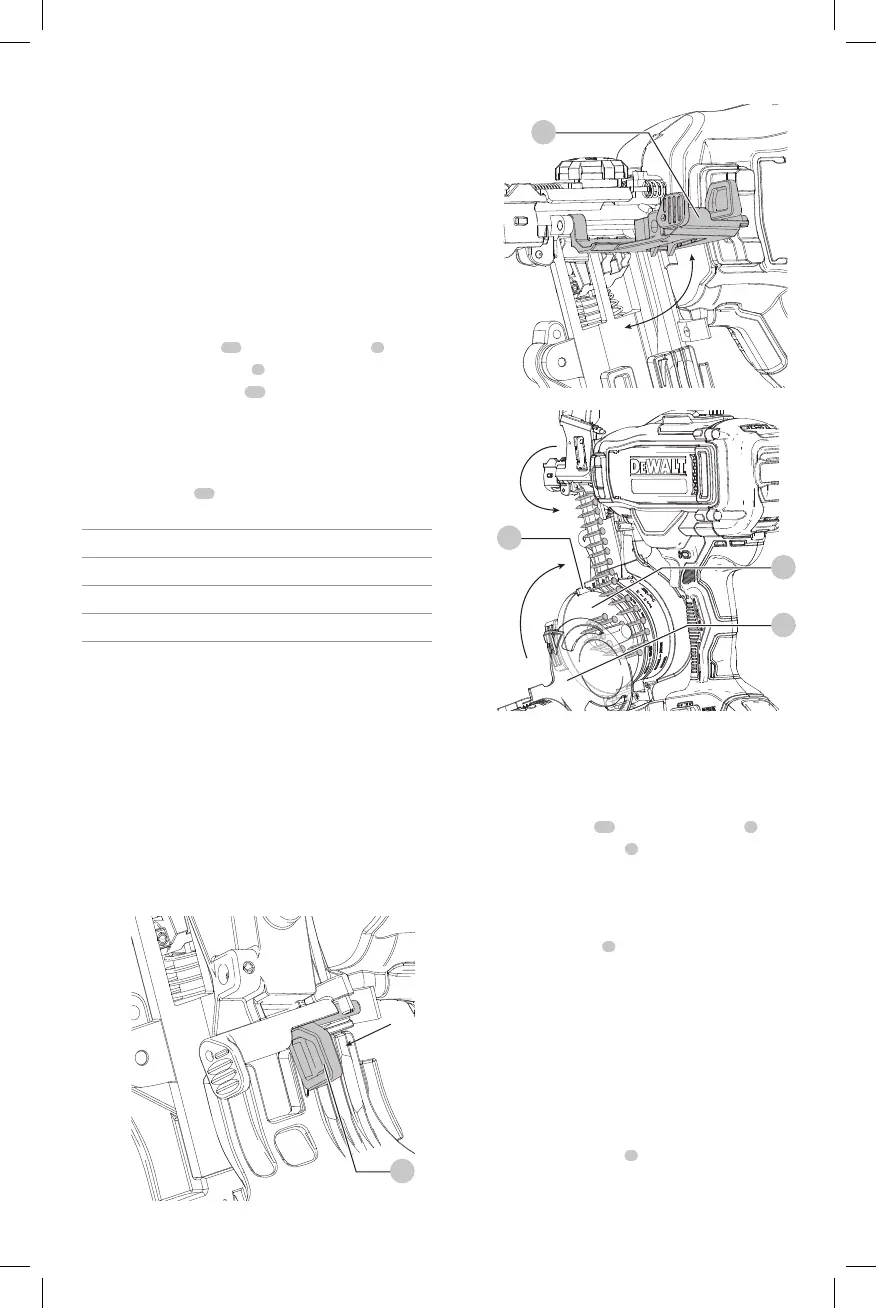

Loading the Tool (Fig.E–G)

WARNING: Keep the tool pointed away from yourself
andothers.

WARNING: Never load nails with the contact trip or
triggeractivated.

WARNING: Always remove battery pack before
loading or unloadingnails.

CAUTION: Keep fingers clear of pusher latch track to
preventinjury.

WARNING: The trigger lock-off should always be
engaged whenever any adjustments are made or
when tool is not inuse.
1. Push the door latch
11
to open the nail door
8
.
2. Rotate the canister cover
6
open.
3. Adjust the nail platform
13
according to the length of
nails being used.
a. Swing the nail platform out and move it along the
rail to set it for one of three postions.
b. Move the nail platform back into position making
sure the tab
14
its securely into one of the three
numbered slots.
Nail platform Nail length
Position 1 3/4" (22 mm)
Position 2 1"–1-1/4" (25 mm–33 mm)
Position 3 1-1/2"–1-3/4" (38 mm–45 mm)
4. Place the coil on the nail platform. Insert fasteners with
points down. IMPORTANT: Fasteners must point in the
same direction as they will be driven.
5. Uncoil enough nails [approximately 3” (76mm)] to
reach the nose of the tool.
6. Insert the first nail into the nose and the second nail
between the two rails of the feed pawl.
NOTE: Be careful not to deform the coil of nails during
the loading process. Otherwise, the nail door will not
close and the nails might not feed consistently.
7. Close the nail door making sure the door latch is
completely engaged.
8. Close the canister cover completely.
Fig.E
11
Fig.F
8
6
Fig.G
13
14
Unloading the Tool (Fig.E–G)

WARNING: The trigger lock-off should always be
locked off whenever any adjustments are made or
when tool is not inuse.
1. Push the door latch
11
to open the nail door
8
.
2. Rotate the canister cover
6
open.
3. Remove the coil from the nail platform.
Adjusting Depth (Fig.H)
The depth that the nail is driven can be adjusted using the
depth adjustment wheel
5
on the nose of thetool.

WARNING: To reduce risk of serious injury from
accidental actuation when attempting to adjust
depth, ALWAYS:
• Remove batterypack.
• Engage trigger lock-off.
• Always point the nose of the nailer away
fromyou.
• Avoid contact with trigger duringadjustments.
The depth that the fastener is driven can be adjusted using
the depth adjustment wheel
5
on the nose of the tool. The
depth of drive is factory adjusted to a nominal setting. Test
fire a fastener and check depth. If a change is desired:
