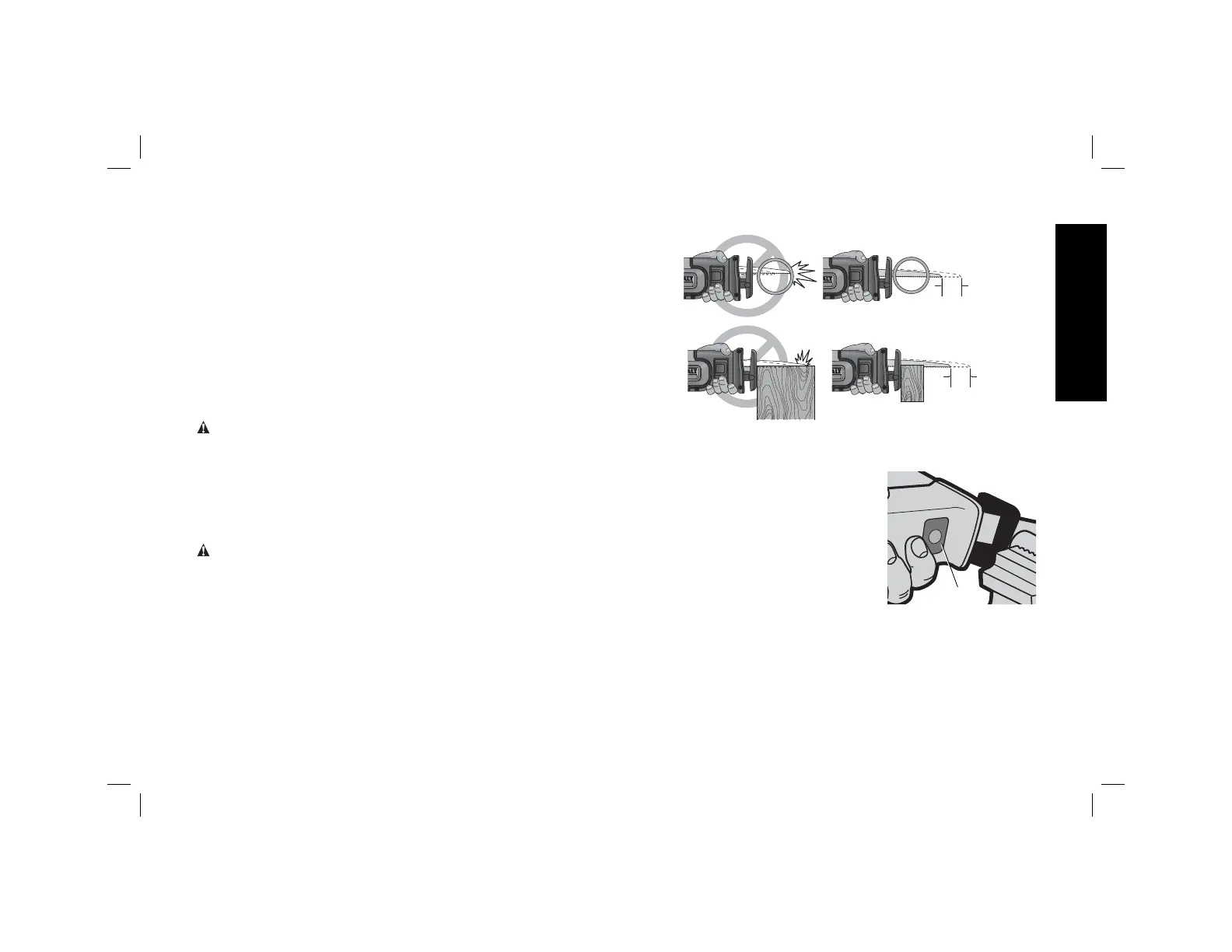

FIG. 5
TO INSTALL BLADE INTO SAW
1. Pull blade clamp release lever (C) up
FIG. 6
C
(Fig. 6).
2. Insert blade shank from the front.
3. Push blade clamp release lever down.
NOTE: The blade can be installed in four
positions as shown in Figure 7.
level of charge left. When the level of charge in the battery is below the
usable limit, the fuel gauge will not illuminate and the battery will need
to be recharged.
NOTE: The fuel gauge is only an indication of the charge left on the
battery pack. It does not indicate tool functionality and is subject to
variation based on product components, temperature and end-user
application.
For more information regarding fuel gauge battery packs, please call
1-800-4-D
EWALT (1-800-433-9258) or visit our website www.dewalt.
com.
Blade Installation and Removal
(Fig. 5–7, 11)
WARNING: To reduce the risk of serious personal injury,
turn tool off and disconnect tool from power source before
making any adjustments or removing/installing attachments or
accessories. An accidental start-up can cause injury.
Different blade lengths are available. Use the appropriate blade for
the application. The blade should be longer than 3-1/2" (89 mm)
and should extend past the shoe and the thickness of the workpiece
during the cut. Do not use jigsaw blades with this tool.
WARNING: Cut hazard. Blade breakage may occur if the blade
does not extend past the shoe and the workpiece during the cut
(Fig.5). Increased risk of personal injury, as well as damage to the
shoe and workpiece may result.
