Replacement Accessories
Replacing Spool Assembly (Fig. A, N)
1. Rotate the spool housing
10
until the hole
31
in
the spindle plate aligns with notch
32
in the motor
housing. Insert a screwdriver through the notch and into
the hole, to prevent the spindle fromturning.
2. Unscrew and remove the spool housing by turning the
spool grip cover
29
clockwise.
NOTE: Do not try to remove the spool by turning the
spool housing
28
.
3. Remove spindle plate
34
before installing a new spool.
Remove any dirt and grass from the motor housing and
spindleplate.
4. Install spindle plate
34
onto the spindle
33
, so the
double D shaped retaining nut on the spindle sits inside
the base of the spindleplate.
5. Align the spindle plate hole and notch, insert a
screwdriver back into the hole and thread the new
spool housing counterclockwise. Securely tighten the
new spool housing onto the spindle
33
.

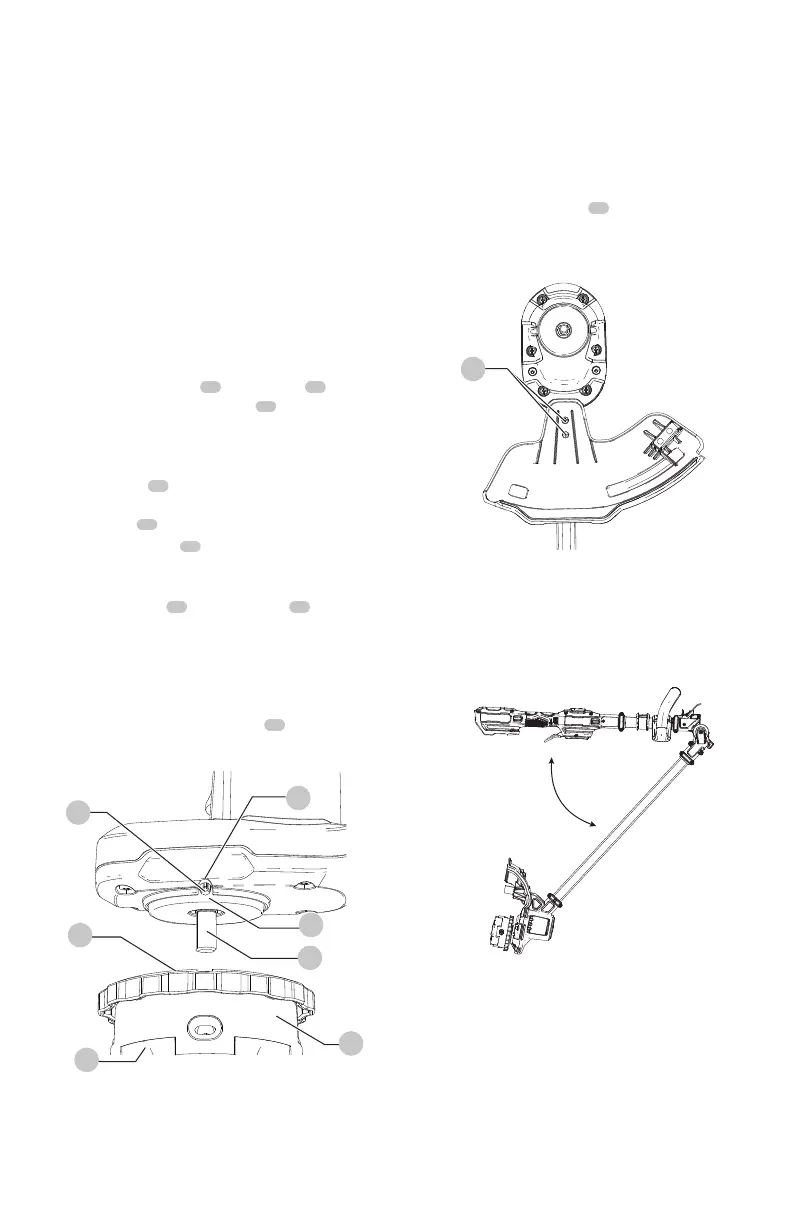

Fig.N
33
29
28
32
30
34
Replacing Guard (Fig. O)
An extended coverage guard is available (soldseparately)
for extra coverage if desired.Use DeWALT replacement
guard Part NumberN890579.

WARNING: Never operate appliance
without guard firmly inplace.
1. Remove the 2guard screws
21
.
2. Attach the new guard as described in the Attaching
Guardsection.
Repairs
The charger and battery pack are notserviceable. There are
no serviceable parts inside the charger or battery pack.

WARNING: To assure productSAFETY
and RELIABILITY, repairs, maintenance and
adjustment (including brush inspection and
replacement, when applicable) should be performed
by a DeWALT factory service center or a DeWALT
Fig.O
21
Folding for Storage or Transportation (Fig. P)
The string trimmer can be folded for storage or
transportation. To put the string trimmer in the folded
position, please refer to Extending and Folding thePole.
Fig.P
Accessories

WARNING: Since accessories, other than
those offered by DeWALT, have not been tested with
this product, use of such accessories with this tool
could be hazardous. To reduce the risk of injury, only
DeWALT recommended accessories should be used
with thisproduct.
Recommended accessories for use with your tool are
available at extra cost from your local dealer or authorized
service center. If you need assistance in locating any
accessory, please contact DeWALT call 1‑800‑4‑DeWALT
(1‑800‑433‑9258) or visit our website: www.dewalt.com.
