1

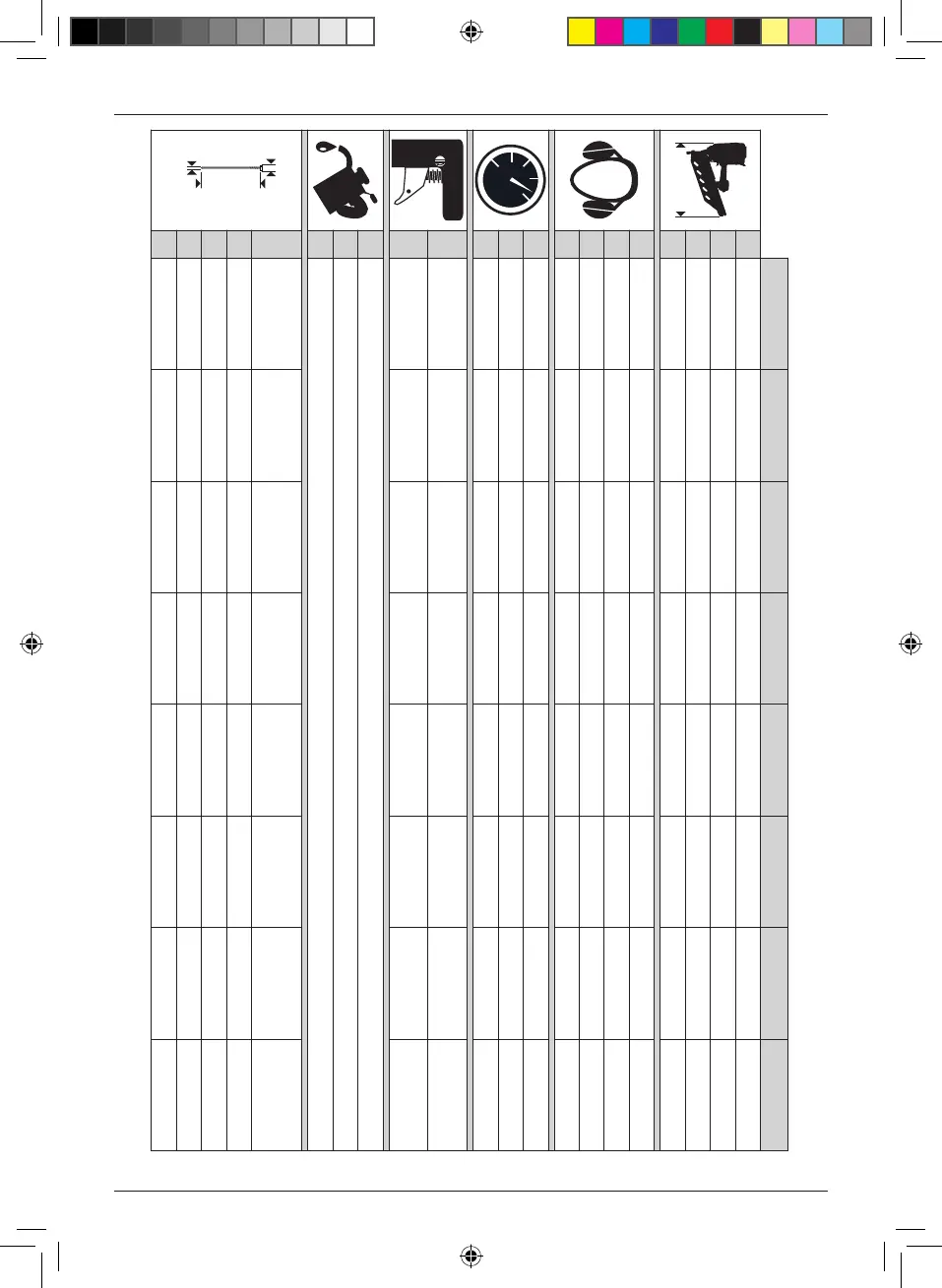

DPN9033-XJ DPN9033SM-XJ DPN10033-XJ DPN9021PL-XJ DPN9017PL-XJ DPN64C-XJ DPN75C-XJ DPN90C-XJ
Xmm
A 457 mm 360 mm 493 mm 517 mm 500 mm 266.7 mm 264 mm 311 mm B 355 mm 355 mm 371 mm 355 mm 355 mm 269.9 mm 356 mm 355 mm
C 133 mm 133 mm 151 mm 133 mm 133 mm 117.5 mm 124 mm 133 mm
D 3.6 kg 3.5 kg 3.9 kg 3.7 kg 3.6 kg 2.21 kg 2.49 kg 3.6 kg
E 83.9 dB / 4 dB 90.8 dB / 4 dB 93.1 dB / 4 dB 95.7 dB / 2.5 dB 91 dB / 4 dB 91.5 dB / 4 dB 90.6 dB / 4 dB 90.7 dB / 4 dB
F 90.7 dB / 4 dB 99.7 dB / 4 dB 98.7 dB / 4 dB 100.1 dB / 2.5 dB 99.8 dB / 4 dB 97.3 dB / 4 dB 99.3 dB / 4 dB 99.5 dB / 4 dB
G 77.7 dB / 4 dB 86.7 dB / 4 dB 85.7 dB / 4 dB 87.1 dB / 2.5 dB 86.8 dB / 4 dB 84.3 dB / 4 dB 86.3 dB / 4 dB 86.5 dB / 4 dB H 3.62 / 1.81 m/s
2
3.02 / 1.51 m/s
2
3.76 / 1.88 m/s
2
3.31 / 1.66 m/s2 3.51 / 1.76 m/s2 3.261 / 1.63 m/s
2
3.048 / 1.52 m/s
2
3.604 / 1.80 m/s
2
BAR/
LTR
I 8.3 Bar 8.3 Bar 8.4 Bar 8.3 Bar 8.3 Bar 8.3 Bar 8.3 Bar 8.3 Bar
J 4.8 Bar 4.8 Bar 4.9 Bar 4.8 Bar 4.8 Bar 4.8 Bar 4.8 Bar 4.8 Bar
K 2.47 l 2.47 l 2.57 l 2.47 l 2.47 l 1.46 l 1.53 l 2.33 l
L(a) 2 2 2 2 2 2 2 2
L(b) 1 1 1 1 1 1 1 1
M DEWALT Pneumatic Tool Oil
N DEWALT Pneumatic Tool Winter Oil
O DEWALT Oring Lubricant
Q(b)
R
Q(a)
P DNPT / DT99 / DNW DNPT / DT99 / DNW DNPT / DT99 / DNW DNP21 DNP17 DNN20 / DNN23
DNF23 / DNF25 /
DNF28 / DNF31
DNF25 / DNF28 /
DNF31
Q(a) 2.5-3.3 mm 2.5-3.3 mm 2.8-3.4 mm 2.5-3.3 mm 2.8-3.3 mm 2.0-2.5 mm 2.3-3.1 mm 2.5-3.1 mm
Q(b) 50-90 mm 50-90 mm 57-100 mm 45-90 mm 50-90 mm 32-64 mm 38-75 mm 50-90 mm
R 7.2 mm 7.2 mm 7.2 mm 6.7-7 mm 6.7-7 mm 6.0 mm 7.2 mm 6.5-7.2 mm
S 38-75 38-50 38-50 25-75 50-75 225 225-300 225-300
