Step 8
The DW618 router does not have a clamp for attaching a cord, like the other routers do. You could
still install your own cord using hot glue, I want to show you how to reuse the connector. Cut the black
wire off the switch and the red wire from the speed controller module.

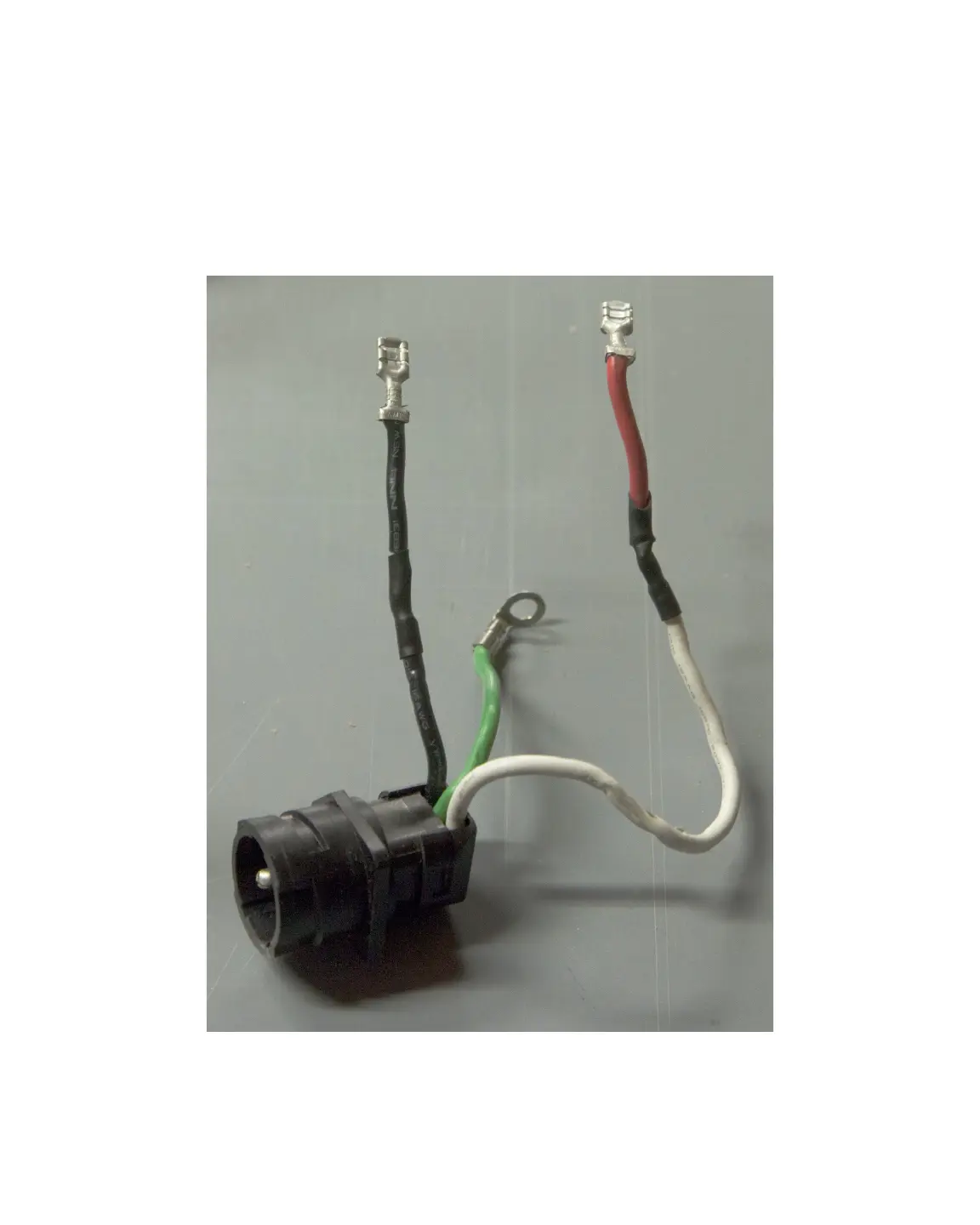

Solder the red wire to the white wire, and the black wire to the black wire, as shown in Figure 10.
Be sure to seal the connection with heat shrink or black tape.
Figure 10
