12
Kronos Robotics
Dewalt DW618 Super-PID Conversion
Step 9

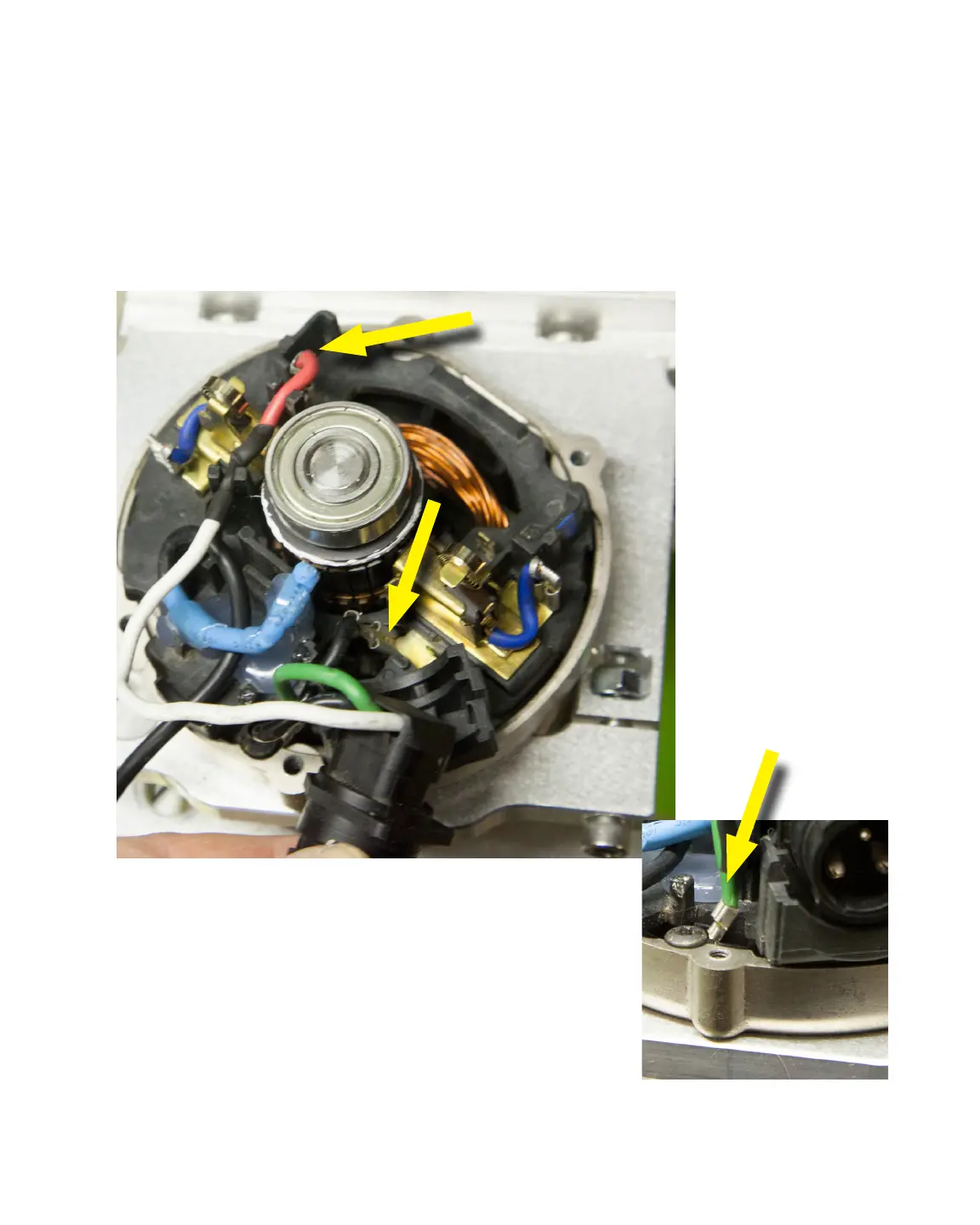

Attach the red and black connectors to the positions shown in Figure 11. Connect the green ground
wire back to its original position, as shown in Figure 12.
Figure 11
Figure 12
