Dewalt DW618 Super-PID Conversion
Step 5

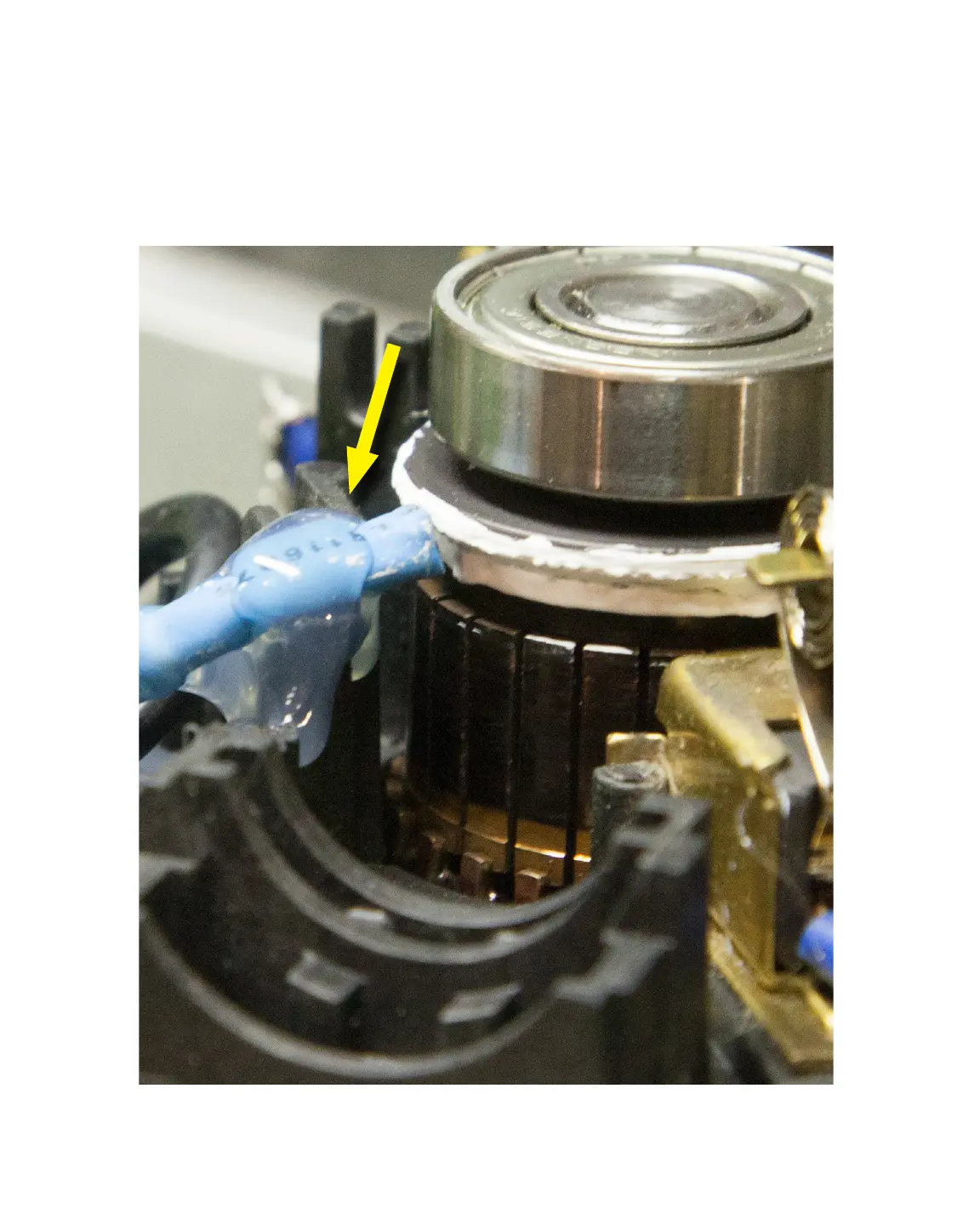

Attach the sensor end of the cable to the plat form using hot glue. The goal is to get the sensor as
close to the white mark as possible without touching. Before gluing refer to the hookup in Step 6. Use
the SuperPID to help you get the perfect angle. Once you happy with the position glue it in place and
hold until the glue is hard.
Figure 6
