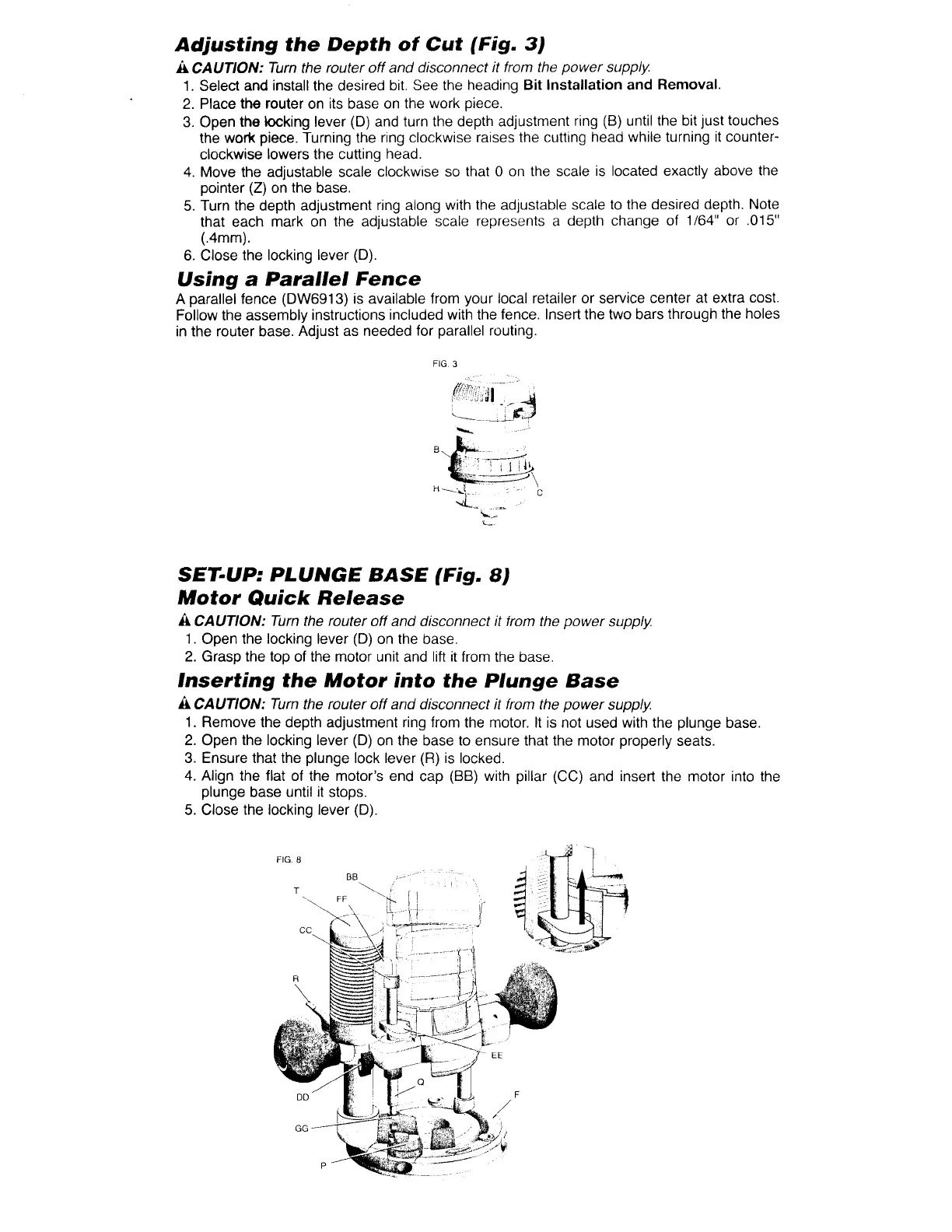

Adjusting the
Depth ol Cut
(Fig.
3)
LCAUTION:
Turn
the
router off and disconnect
it
from
the
power
supply.
1. Select
and install the desired bit.
See the
heading Bit lnstallation and
Removal.
2. Place
the router
on
its
base
on the
work
piece.
3. Open
the locking lever
(D)
and
turn the depth adjustment
ring
(B)
until
the bit
just
touches
the work
piece.
Turning the
ring
clockwise
raises
the cutting
head while turning it counter-
clockwise
lowers the cutting
head.
4. Move the adjustable scale
clockwise so
that
0
on the scale
is located exactly above
the
pointer (Z)
on
the
base.
5. Turn
the
depth
adjustment
ring along with
the
adjustable
scale to
the desired depth.
Note
that
each
mark on
the adjustable scale
represents a
depth change of
1/64" or.015"
(.4mm).
6. Close
the locking lever
(D).
Using
a
ParaIIeI Fence
A
parallel
fence
(DW6913)
is
available
from
your
local retailer or service center
at extra
cost.
Follow the assembly
instructions
included with the
fence. Insert the two bars
through the
holes
in the router base.
Adjust as needed
for
parallel
routing.
SET-UP: PLUNGE BASE
(Fig.
8)
Motor
Quick
Fefease
A,CnUnOlt: Turn the router
off and disconnect
it
from the
power
suppty.
'1.
Open the
locking
lever
(D)
on the base.
2.
Grasp
the top
of the
motor
unit and
lift it
from the base.
Inserting
the Motor into the Plunge Base
ACAUTION: Turn
the router off and disconnect it from the
power
supply.
1. Remove the
depth adjustment
ring from
the motor. lt is not used with
the
plunge
base.
2.
Open
the locking lever
(D)
on the base to ensure that the motor
properly
seats.
3. Ensure that the
plunge
lock lever
(R)
is locked.
4. Align
the
flat
of the motor's end
cap
(BB)
with
pillar (CC)
and insert the motor into the
plunge
base until
it
stops.
5. Close
the locking lever
(D).
FIG.8
