ENGLISH
6
3. Insert the cutter
25
with pilot pin
26
and turn until
the flat meets the locking pin. When the flat meets the
locking pin the collar will snapdown.
4. Check that the cutter is securely held in thearbor.
5. Lift the collar to release thecutter.
2
1

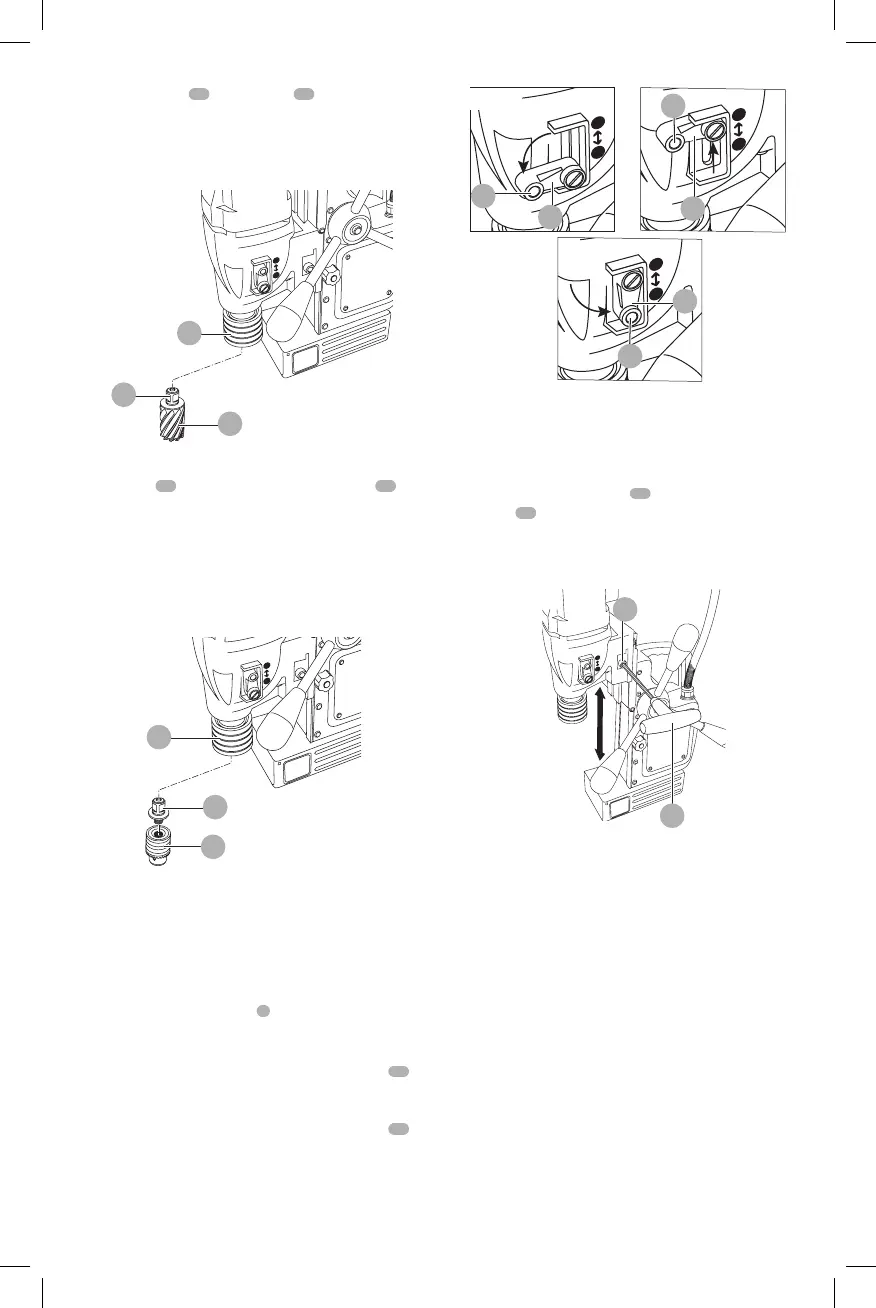

Fig. F
24
26
25
Three-Jaw Chuck (Fig. G)
A 3-jaw chuck
27
can be installed using an adaptor
28
to
fit the drill press for various bit sizes. Refer to Inserting and
Removing an Accessory for installationinstructions.
NOTE: It may be necessary to adjust the motor position
when chuck is installed. Please refer to Adjusting the Motor
Height forinstructions.
Refer to the Accessories section for further information on
appropriateaccessories.
2
1
Fig. G
24
28
27
Setting the Speed (Fig. H)

CAUTION: Do not change speeds while motor
isrunning.
The machine is equipped with a two-gear selector to vary
the speed/torqueratio.
1. Rotate the gear selector tab
4
out of the detent slot
and shift into the desiredmode.
2. Lock the selector tab back into thedetent.
LOW SPEED AND HIGH TORQUE: The yellow dot
29
should be aligned with position 1 for low speed and
high torque (holes from 32 to 50 mm).
HIGH SPEED AND LOW TORQUE: The yellow dot
29
should be aligned with position 2, for high speed and
low torque (holes from 12 to 30 mm).
NOTE : It may be necessary to slightly turn the spindle by
hand a little to complete the gearchange.
2
1
Fig. H
2
1
2
1
4
29
4
29
29
4
Adjusting the Motor Height (Fig. I)
The motor height can be adjusted
to accommodate the need for more or less bit clearance
over theworkpiece.
1. Loosen the motor slide bolt
30
with the supplied hex
key tool
31
.
2. Position the motor to the desiredheight.
3. Tighten the bolt firmly with the hex tool to secure the
motor in position.
2
1
Fig. I
30
31
OPERATION

WARNING: To reduce the risk of serious personal
injury, turn unit off and disconnect it from
power source before making any adjustments or
removing/installing attachments or accessories.
An accidental start-up can causeinjury.

WARNING:
• Apply only a gentle pressure to the tool. Excessive
force does not speed up drilling but decreases tool
performance and may shorten toollife.
• It the accessory jams, stop the motor and gently
raise the accessory out of the workpiece before
resumingwork.
• Always use the safetychain.
Prior to operation

WARNING: Inspect the chain before each use, for
wear or damage. Replace ifnecessary.
