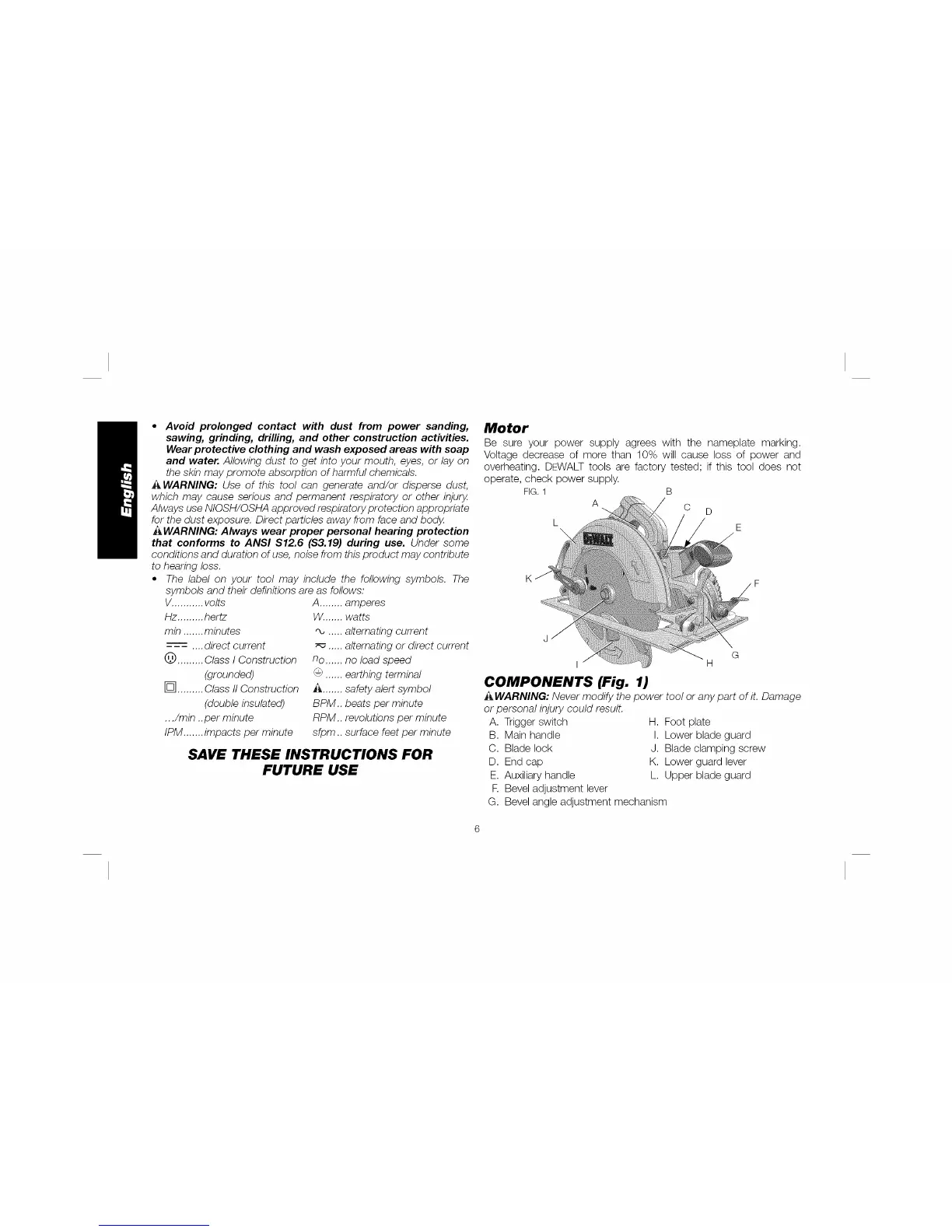

• Avoid prolonged contact with dust from power sanding,
sawing, grinding, drilling, and other construction activities.
Wear protective clothing and wash exposed areas with soap
and water. Allowing dust to get into your mouth, eyes, or lay on
the skin may promote absorption of harmful chemicals.
_ WARNING: Use of this tool can generate and/or disperse dust,
which may cause serious and permanent respiratory or other injury.
Always use NIOSH/OSHA approved respiratory protection appropriate
for the dust exposure. Direct particles away from face and body.
A WARNING: Always wear proper personal hearing protection
that conforms to ANSI $12.6 ($3.19) during use. Under some
conditions and duration of use, noise from this product may contribute
to hearing loss.
• The label on your tool may include the following symbols. The
symbols and their definitions are as follows:
V........... volts
Hz......... hertz
min ....... minutes "_ .....
- -- ....direct current _ .....
(_)......... Class I Construction no ......
(grounded) _ ......
[] ......... Class II Construction A .......
(double insulated) BPM..
.../min.. per minute RPM..
IPM .......impacts per minute sfpm..
A ........ amperes
W....... watts
alternating current
alternating or direct current
no load speed
earthing terminal
safety alert symbol
beats per minute
revolutions per minute
surface feet per minute
SAVE THESE INSTRUCTIONS FOR
FUTURE USE
Motor
Be sure your power supply agrees with the nameplate marking.
Voltage decrease of more than 10% will cause loss of power and
overheating. DEWALT tools are factory tested; if this tool does not
operate, check power supply.
FIG.1 B
A C
D
L E
G
H
COMPONENTS (Fig. 1)
i_,WARNING: Never modify the power tool or any part of it. Damage
or personal injury could result.
A. Trigger switch
B. Main handle
C. Blade lock
D. End cap
E. Auxiliary handle
F. Bevel adjustment lever
H. Foot plate
I. Lower blade guard
J. Blade clamping screw
K. Lower guard lever
L. Upper blade guard
G. Bevel angle adjustment mechanism
To Next Page
