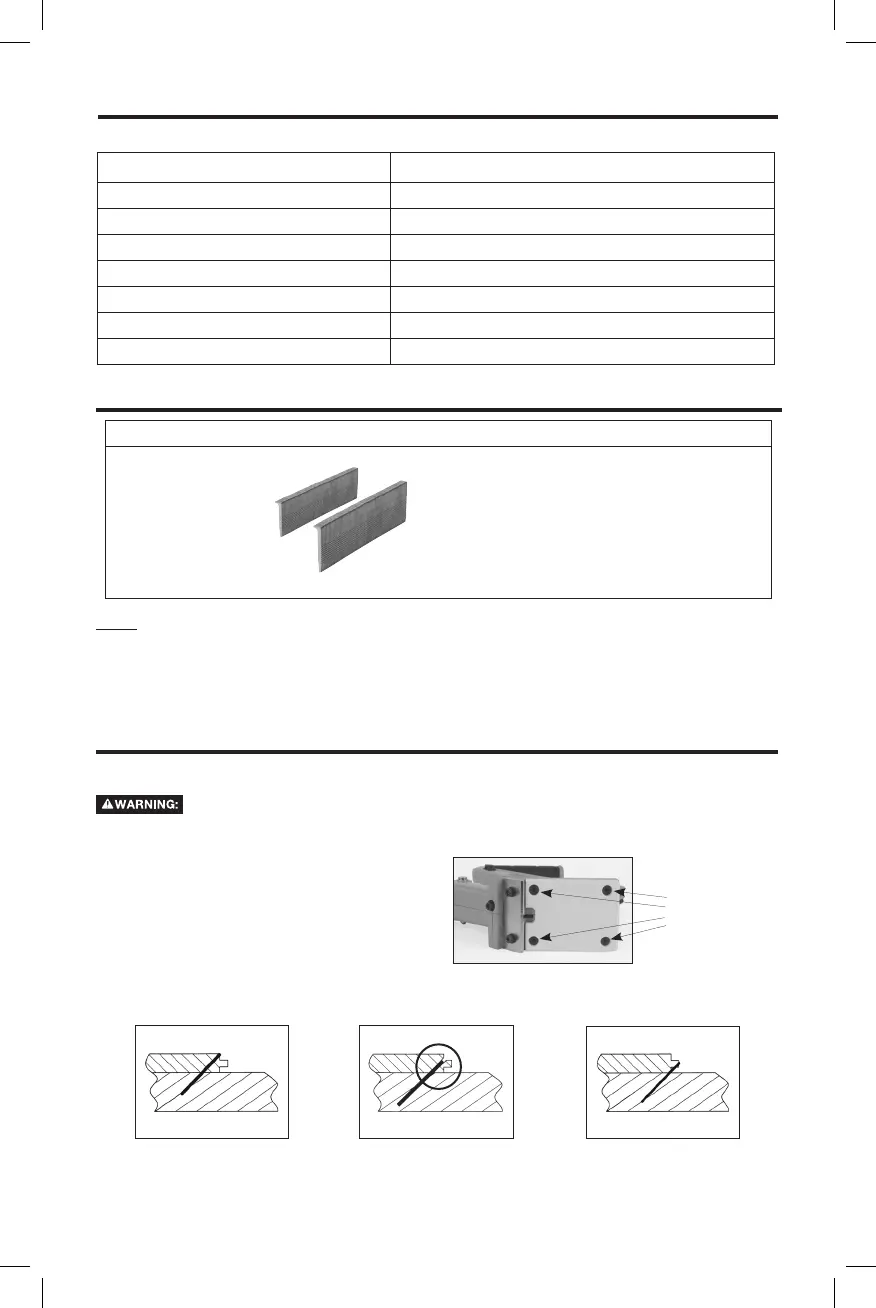

DWMFN-201 TOOL SPECIFICATIONS
DWMFN-201 FASTENER SPECIFICATIONS
TOOL SETUP
The DWMFN-201 was designed to install 1/2” to 3/4” tongue and groove hardwood flooring. The tool is factory set for
3/4” flooring. Two additional foot plates are included with this tool to accommodate 1/2” and 5/8” flooring.
Flooring products will vary and the user must ensure the tool is properly adjusted each time
flooring is being installed. Dimensions listed on the footplates are suggestions. Test fastener
placement on scrap pieces of wood before installing floor.
To change footplates:
1. Remove 4 flat head cap screws.
2. Change to desired plate.
3. Replace 4 flat head cap screws.
FASTENER PLACEMENT:
Too High Correct Too Low
Flat head
cap screws
DWMFN-201
Description Manual Flooring Nailer
Fastener Type “L” Type 16 Gauge Flooring Cleats
Magazine Capacity 120 cleats
Length 13-7/16" (340mm)
Width 3-1/2" (89mm)
Height 17-1/2" (444mm)
Weight 8.6 lbs (3.9kg)
Tool Model Fastener Type Fastener SKU Gauge Length
DWMFN-201 Manual DWFLN-150 16 1-1/2” (38.1mm)
DWFLN-200 16 2” (50.8 mm)
To Next Page
