Spindle Lock Button (Fig. 1)
WARNING: To reduce the risk of serious personal injury, turn tool off and disconnect
tool from power source before making any adjustments or removing/installing
attachments or accessories. Before reconnecting the tool, depress and release the
trigger switch to ensure that the tool is off.
In order to prevent the spindle of the tool from rotating while installing or removing
accessories, a spindle lock button has been provided in the gear head of the machine.
To lock the spindle, depress and hold the lock button. NEVER DEPRESS THE SPINDLE
LOCK BUTTON WITH THE TOOL RUNNING OR COASTING.
Wool Ingestion Shields (Fig. 1, 2)
The wool ingestion shields are designed to reduce the amount of wool, dust, and
debris that gets ingested by the motor during normal use. The goal of the ingestion
shields is to improve durability as compared to a unit without the ingestion shields.
Each ingestion shield can be easily removed for cleaning by removing the mounting
screw, followed by sliding the shield back towards the trigger end of the tool and then
lifting it off.
The wool ingestion shields can be cleaned with soap and water and a soft bristle
brush in the event they get clogged with polish and debris. Clean the shields as soon
as you start to see buildup on the outside.
Your tool may come with a set of wool ingestion shields. The wool ingestion shields
are available at extra cost from your local dealer or authorized service center.

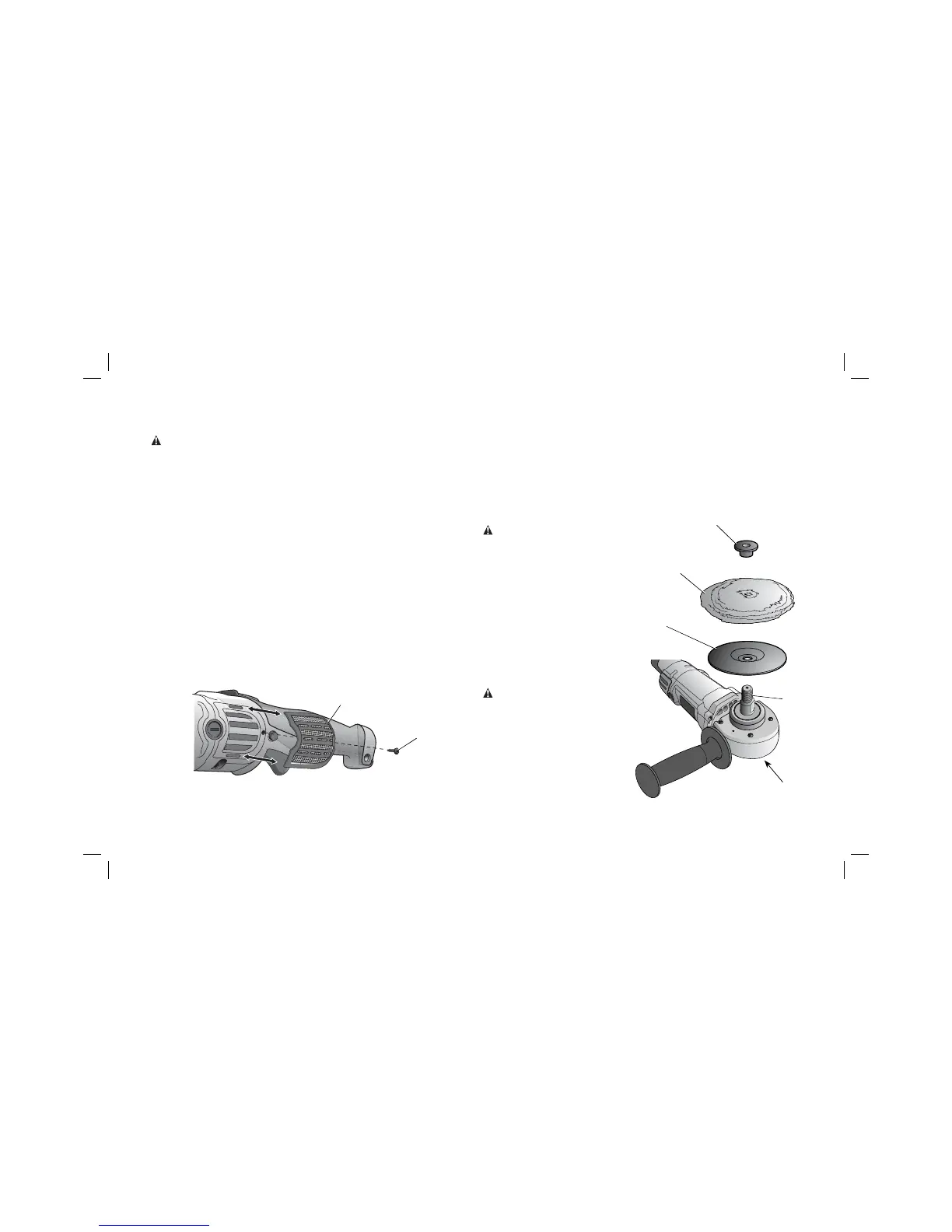

FIG. 2
J
K
Soft Rubber Gear Case Cover (Fig. 1)
The soft rubber gear case cover is designed to eliminate metal gear case scuffs on
painted or polished surfaces.
The soft rubber gear case cover can be removed if required. To take off the cover,
remove the three mounting screws and lift the cover over the gear case.
Your tool may come with a soft rubber gear case cover. The soft rubber gear case
cover is available at extra cost from your local dealer or authorized service center.
OPERATION
WARNING: To reduce the risk of
FIG. 3A
L
M
N
H
D
serious personal injury, turn tool off
and disconnect tool from power
source before making any
adjustments or removing/installing
attachments or accessories. Before
reconnecting the tool, depress and
release the trigger switch to ensure
that the tool is off.
Polishing pads with a diameter of
15.2, 17.8 or 22.9 cm (6", 7" or 9")
may be used with the DWP849X-XE.
Attaching and Removing
Polishing Pads (Fig. 3A, 3B)
WARNING: To reduce the risk of
serious personal injury, do not allow
any loose portion of the polishing
bonnet or its attachment strings to
spin freely. Tuck away or trim any
loose attachment strings. Loose and
spinning attachment strings can
entangle your fingers or snag on the
workpiece.
