Definitions: Safety Alert Symbols and Words
This instruction manual uses the following safety alert symbols and words to alert you to hazardous situations and your risk of personal injury or property damage.

DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or seriousinjury.

WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or seriousinjury.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderateinjury.

(Used without word) Indicates a safety related message.
NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in propertydamage.

WARNING! Read all safety warnings and all
instructions. Failure to follow the warnings and
instructions may result in electric shock, fire and/or
seriousinjury.
WARNING: To reduce the risk of injury, read the
instructionmanual.
If you have any questions or comments about this or any
DeWALT
tool, call us toll free at:
1-800-4-
DeWALT
(1-800-433-9258).

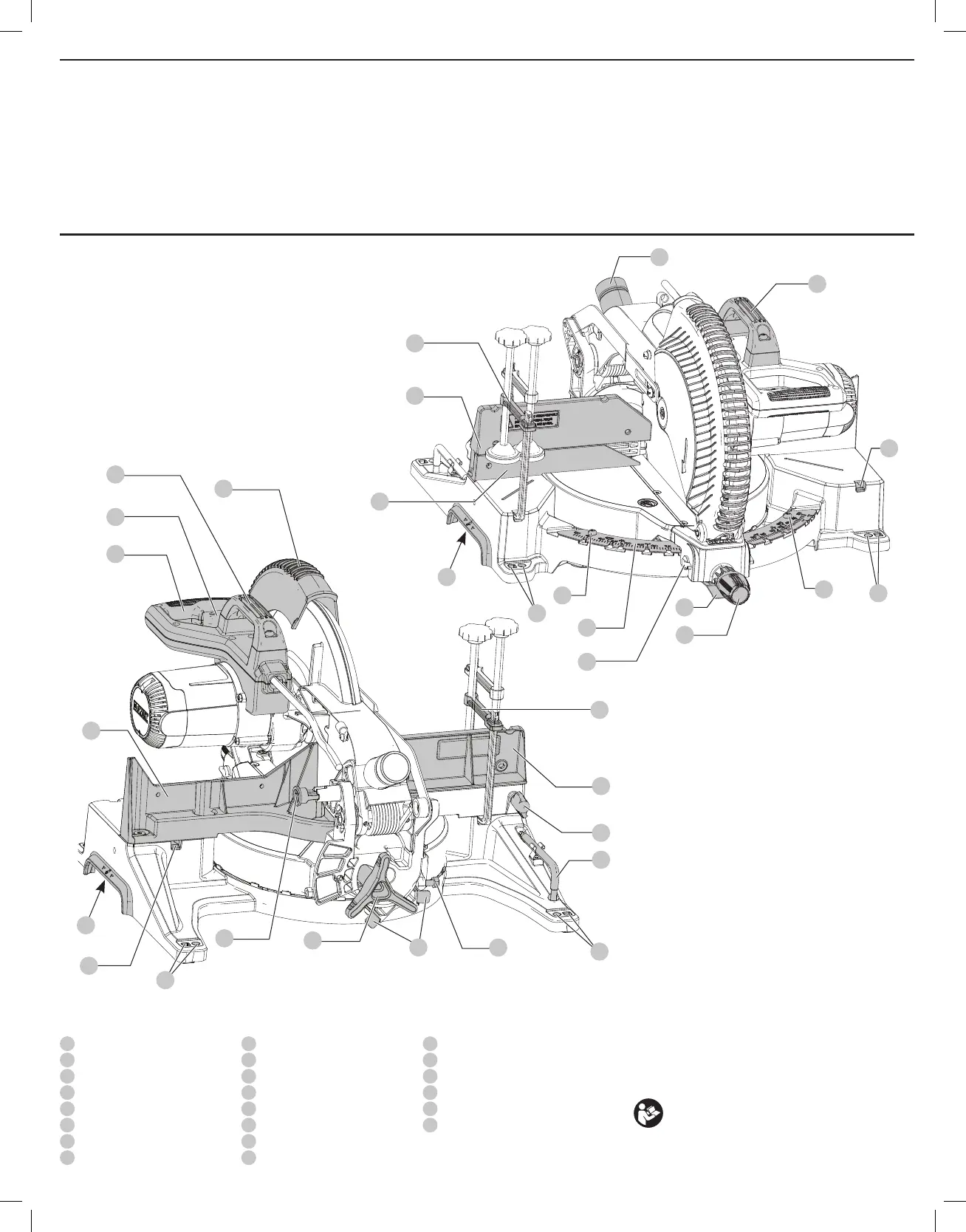

1
Trigger switch
2
Operating handle
3
Mounting holes
4
Lower guard
5
Miter lock knob
6
Miter detent latch
7
Miter scale
8
Miter scale screws
9
Hand indentations
10
Sliding fence
11
Bevel lock knob
12
Dust port
13
Carrying handle
14
Fence lock knob
15
Clamp mounting hole
16
6 mm hex wrench
17
Head lock knob
18
Base fence
19
0° bevel stop adjustment screw
20
0°/45° bevel stop override levers
21
Clamp
22
Miter detent override switch
