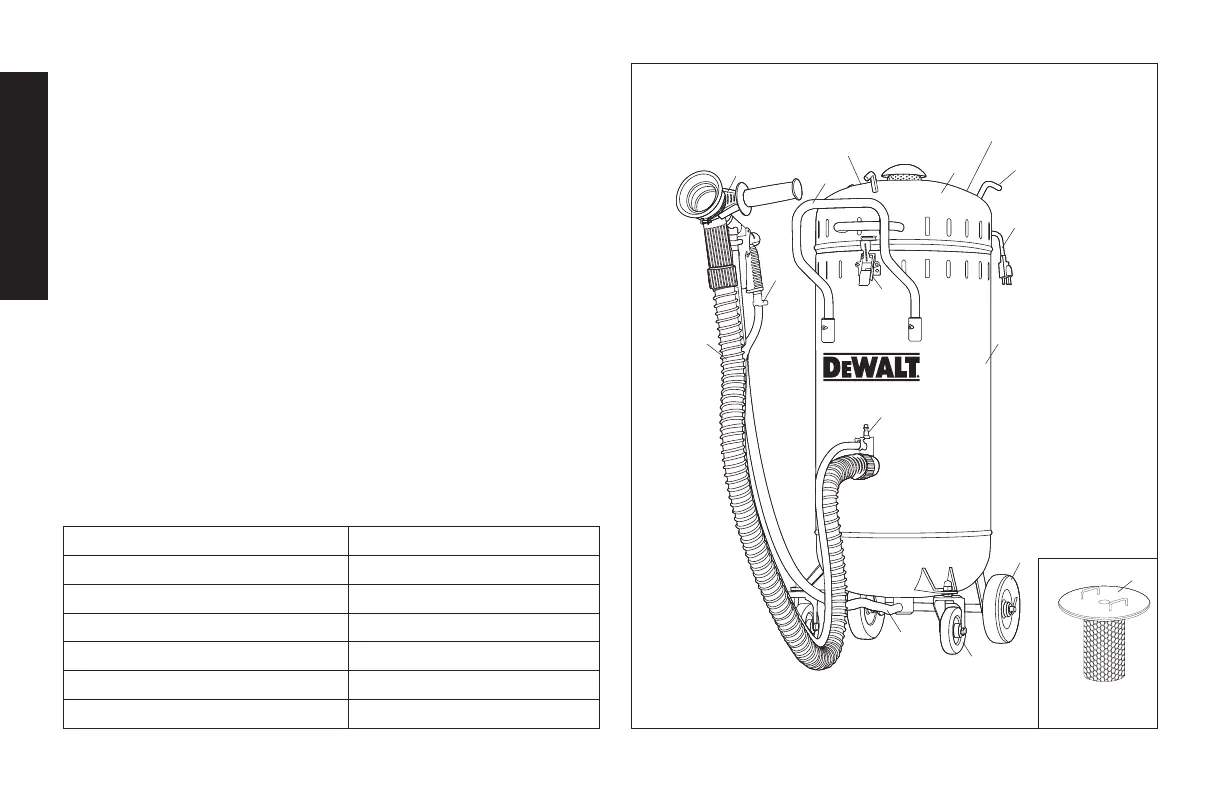

DXCM009-0369 Abrasive Blast Vacuum
A. On / Off Power Switch
B. Lid
C. Latch
D. Handle
E. Blast Gun with Brush
F. Air Line Gun
G. Vacuum Hose
H. Air Line In From Compressor
I. Abrasive Media Hose
J. Caster (2x)
K. Wheel (2x)
L. Tank
M. Power Cord
N. Power Cord Wrap
O. Filter Assembly
Filter Assembly
Shown In FIG 2
Abrasive Blast
Vacuum Filter
Assembly
FIG 2
FIG 1
O
K
J
I
Abrasive Blast
Vacuum
H
F
G
E
D
C
B
A
N
M
L
Specifications
MODEL DXCM009-0369
NET WEIGHT 64 lbs. (29.02 kg)
AVERAGE AIR CONSUMPTION 5.5-6.5 SCFM @ 115 PSI
MAX. WORKING PRESSURE 140 PSI
ABRASIVE CAPACITY 20-35 LBS
INPUT Single Phase 120V
OVERALL DIMENSIONS 19.6" x 16.5" x 38.7"
