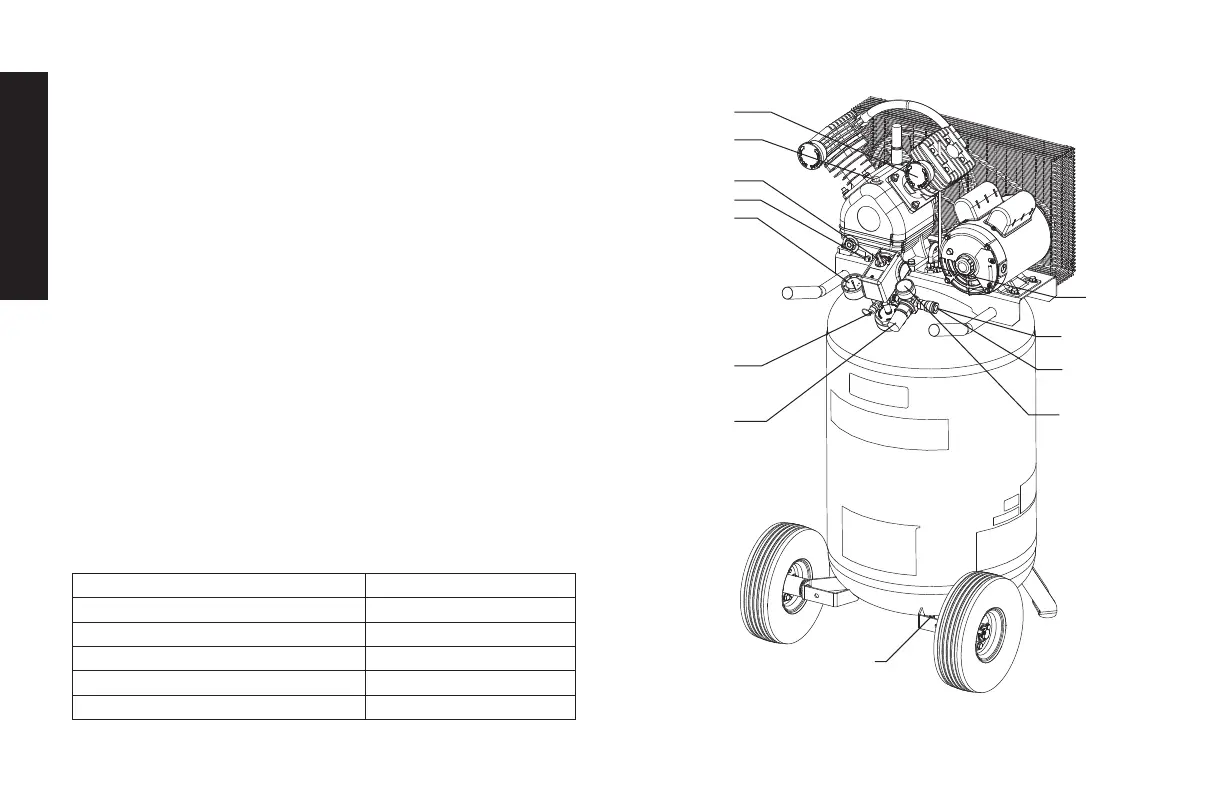

Air Compressor
A. Pump Air Intake Filter
B. Auto(-)/Off(O) Switch
C. Air Tank Pressure Gauge
D. Regulated Pressure Gauge
E. Pressure Regulator
F. Air Outlet
G. Safety Valve
H. Air Tank Drain Valve
I. Pump Oil Fill Plug
J. Pump Oil Drain Plug
K. Check Valve
L. Quick Connect
Pump Specifications
2 Cylinder
Single Stage
Oil Lubricated
Cast iron crankcase, cylinder, and aluminum head
Weight: 28.0 lbs (12.7 kg.)
Oil Capacity: 11.35 fl. oz. (336 mL)
Specifications
MODEL DXCM301
WEIGHT 152 lbs. (68.9 kg)
HEIGHT 45.75" (1162 mm)
WIDTH 23" (584,2 mm)
AIR TANK CAPACITY 30 gallons (113.6 liters)
APPROX. CUT OUT PRESSURE
155 PSI
A
E
I
D
G
K
B
F
J
C
H
L
