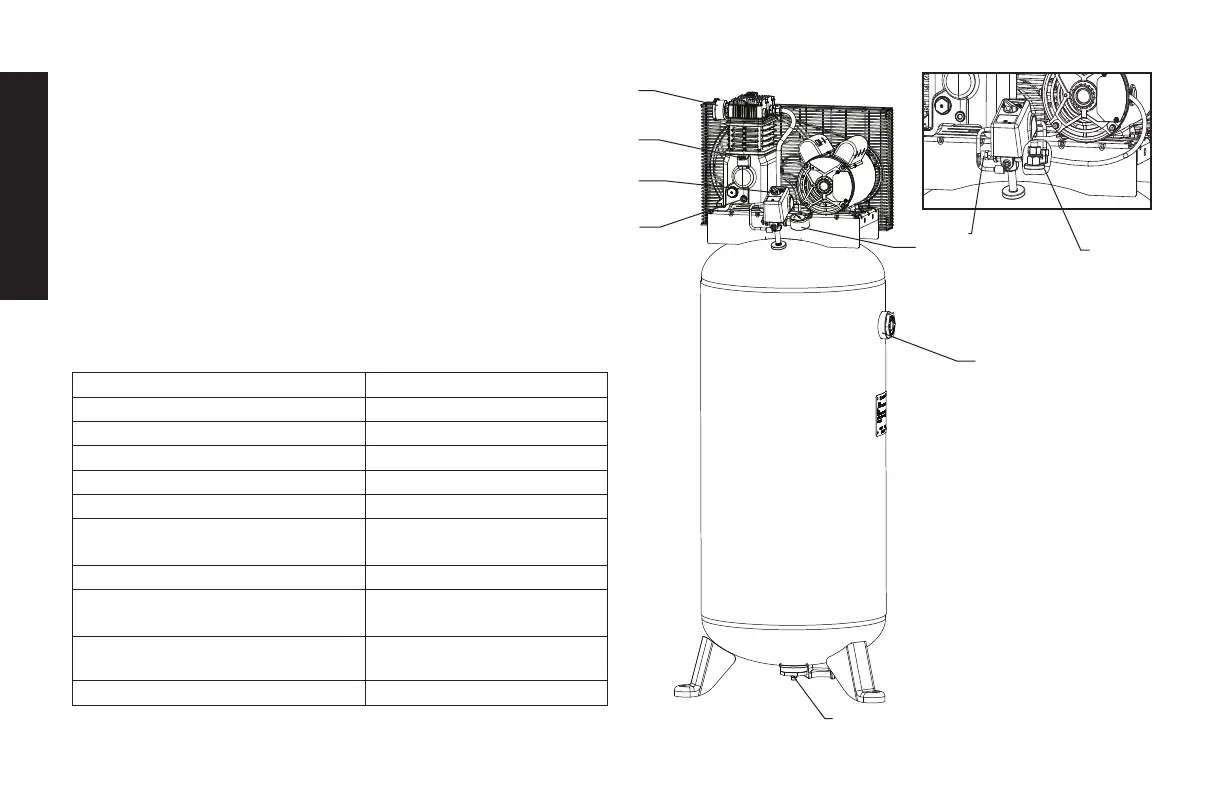

Air Compressor
A. Pump Air Intake Filter
B. Auto(-)/Off(O) Switch
C. Air Tank Pressure Gauge
D. Air Outlet
E. Safety Valve
F. Air Tank Drain Valve
G. Pump Oil Fill Plug
H. Pump Oil Drain Plug
I. Check Valve
Specifications
MODEL DXCM602
WEIGHT Approximate 200 lbs (91 kg)
HEIGHT 65"
WIDTH 22.5"
AIR TANK CAPACITY 60 gallons (227.1 liters)
APPROX. CUT OUT PRESSURE 175 PSI
AIR DELIVERY 13.4 SCFM at 40 PSI
11.5 SCFM at 90 PSI
TANK FILL TIME 7 MINUTES
INPUT 240V, 60Hz, Single Phase
AC only, 15 Amps
MINIMUM BRANCH CIRCUIT
REQUIREMENT
20 AMPS
FUSE TYPE Time Delay
Fig. 0
A
D
I
G
B
F
E
C
H
Pump Specifications
2 Cylinder
Single Stage
Oil Lubricated
Cast iron crankcase, cylinder,
and aluminum head
Weight: 27.0 lbs (12.2 kg.)
Oil Capacity: 16 fl. oz. (473 mL)
