Components and Controls (cont.)
The following are descriptions of the controls
on the control panel. Your generator has
sockets to power your products with circuit
breakers to protect the voltage flow.

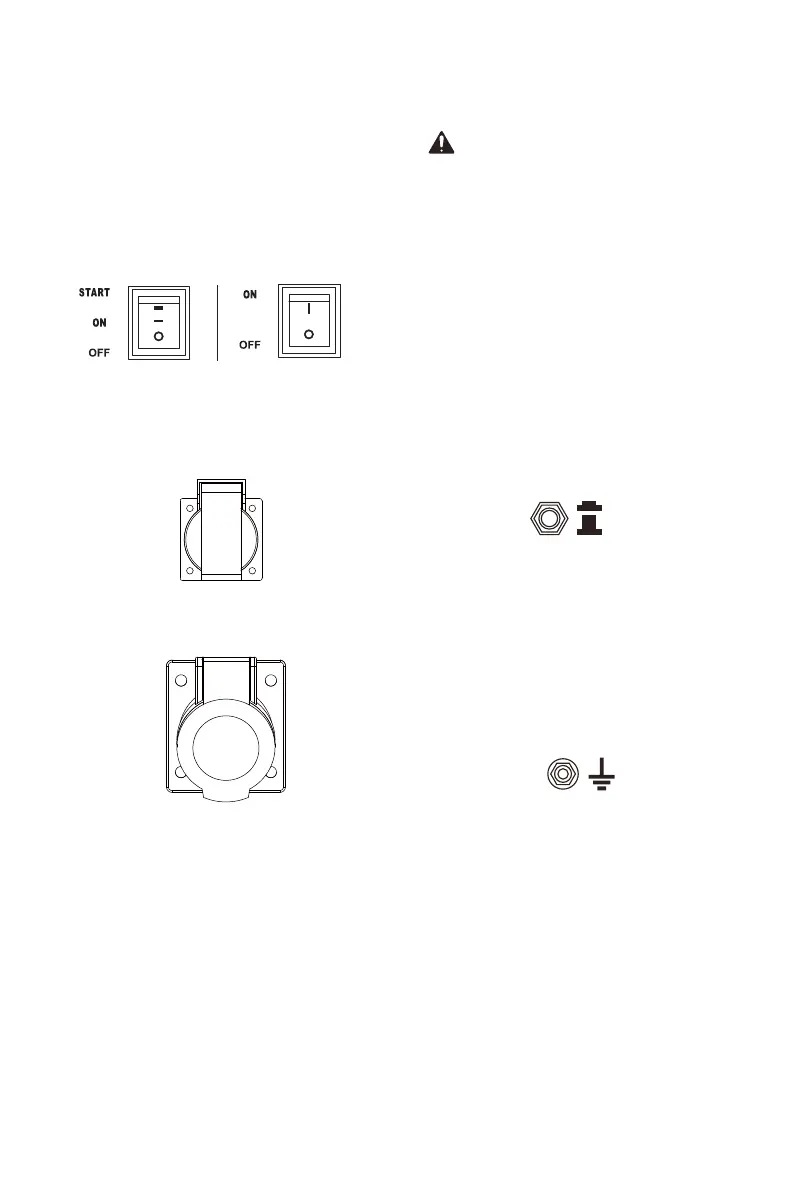

1. Engine Switch: Used to start and stop the Engine.
2. AC Receptacles: The Generator contains several
AC Receptacles to power tools and equipment.
a.
European-style socket
b.
European industrial socket
WARNING! Connect tools and equipment
only to the Receptacle (230 volt or 400 olt)
that is compatible with the electrical
characteristics and rated capacities of the
tools and equipment being used.
3.
ON
OFF
Circuit Breakers: The circuit breaker protects
the Generator from overloading. The rating of
the breaker and the load it protects are marked
near the breaker. Should any of the Circuit
Breakers trip, the Generator will stop the electricity
output. If this happens, unplug all loads from
the Generator. Allow the Generator to cool down.
Then, press the tripped Circuit Breaker, restart
the Engine, and re-attach loads.
4. 12V DC Receptacle: 12VDC Receptacle provides
a power source for 12
volt DC items.
5.
Grounding Terminal: Prior to each use, set
up the ground wire (not included) connection
to the Grounding Terminal to properly ground
the Generator. See Set up instructions
to properly ground the Generator.
