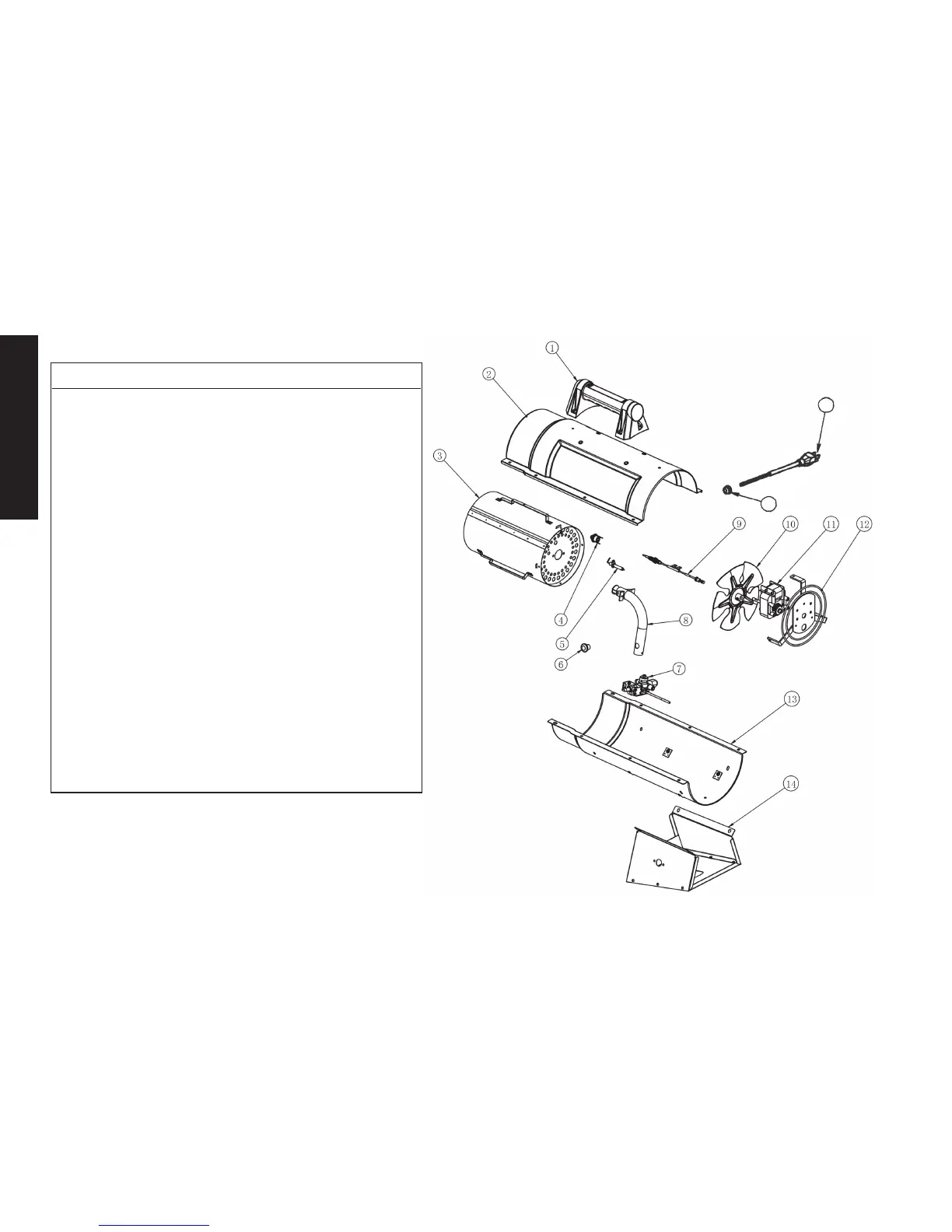

Parts List DXH40FA
R E F. # ..............ITEM#............ DESCRIPTION
1 ...................40801 ............ handle
2 ...................40860 ........... barrel, upper, assy
3 ...................40862 ........... radiation, shield, assy
4 ...................40883 ........... Switch, High, Limit, 85C
5 ...................27951 ............. electrode, ignition
6 ...................40667 ........... knob, valve
7 ...................40866 ........... valve, gas, main
8 ...................40868 ........... burner, assy
9 ...................28082 ............thermocouple
10 ................... 28077 ............ fan blade, 6.75*0.75 pitch
11 ...................28076 ............ motor 0.74 A
12 ................... 40865 ........... guard, rear, assy
13 ................... 40861 ............ barrel, lower, assy
14 ................... 40864 ........... base, assy
15 ................... 2 2113 ............. power cord
16 ................... 82136 ............ strain relief bushing
* ...................21007-20 ........ hose & regulator assembly, 20 ft.
*not shown on exploded view
