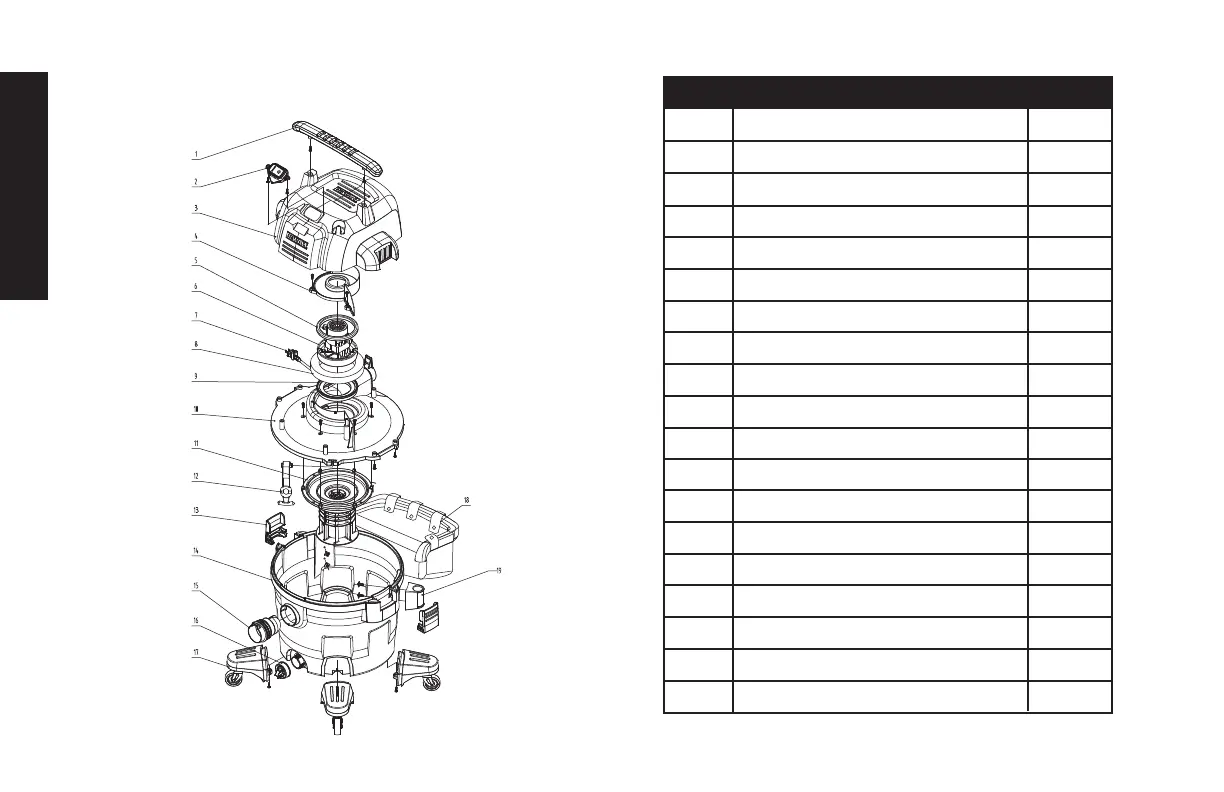

EXPLODED VIEW / PARTS LIST
1 1
1
1
1
1
1
Handle
On/off Switch
Top Cover
Thermal Baffle
Motor Sealing Ring
Motor
2
3
4
5
6
PART DESCRIPTION QTY
Power Cord
Sponge
Motor Support Sealing Ring
7 1
1
1
1
1
2
1
1
1
1
4
2
1
Lid
Filter Cage Assy
Hose Strap
8
9
10
11
12
Lid Latche13
Dust Tank14
Vacuum Port15
Drain Port16
Heavy-duty Rubberized Caster
17
Accessory Bag with Holder18
Bag Holder Bracket19
