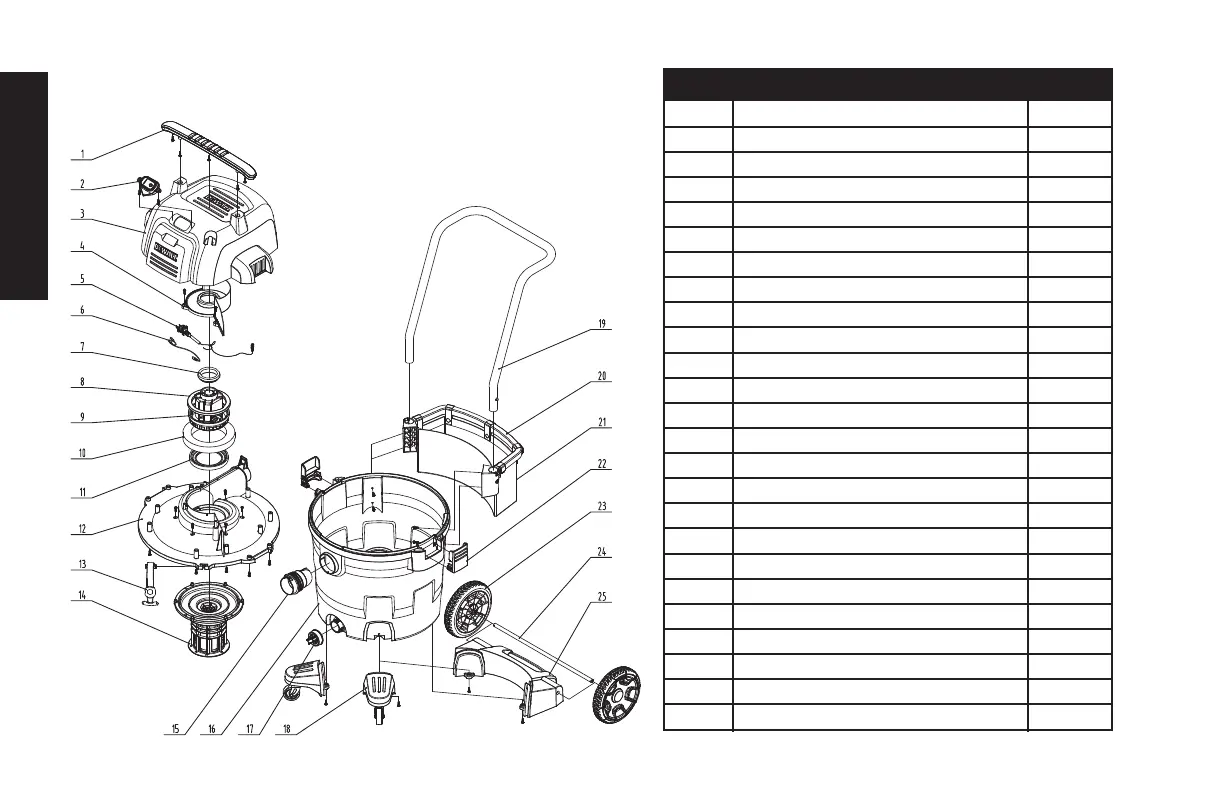

EXPLODED VIEW / PARTS LIST
1 1
1
1
1
1
1
1
1
Handle
3 Top Cover
2 On/off Switch
4 Thermal Baffle
5 Power Cord
6 Internal Wire
7 Motor Cover Seals
8 Motor Sealing Ring
9 Motor
10 Sponge
11 Motor Support Sealing Ring
12 Lid
13 Hose Strap
14 Filter Cage Assy
15 Vacuum Port
16 Dust Tank
17 Drain Port
18 Heavy-duty Rubberized Caster
Putter Assembly
20
19
Accessory bag holder
21 Accessories bag
22 Lid Latche
23 Wheel
24 Shoulder Bolt
25 Wheel Bracket
PART DESCRIPTION QTY
1
1
1
1
1
1
1
1
2
2
2
1
1
1
1
1
1

DeWalt DXV16P Specifications

General

Brand	DeWalt
Model	DXV16P
Category	Vacuum Cleaner
Language	English
