1. Red Switch: Power Main Switch and Overload Protection.
2. Timer Mode Switch: Change the Timer Mode to Always ON or Always
OFF or Timer Control.
3. Timer Dial.
4. Outlets: 4 “TIMER control” outlets.
5. Outlets: 4 “SWITCH control” outlets.
Installation
This indoor mechanical power strip has 48 pins with 24 hours daily repeat
function. Full 15 Amp rating will handle lighting and heavy-duty loads.
Operation Instructions
Set the current time:

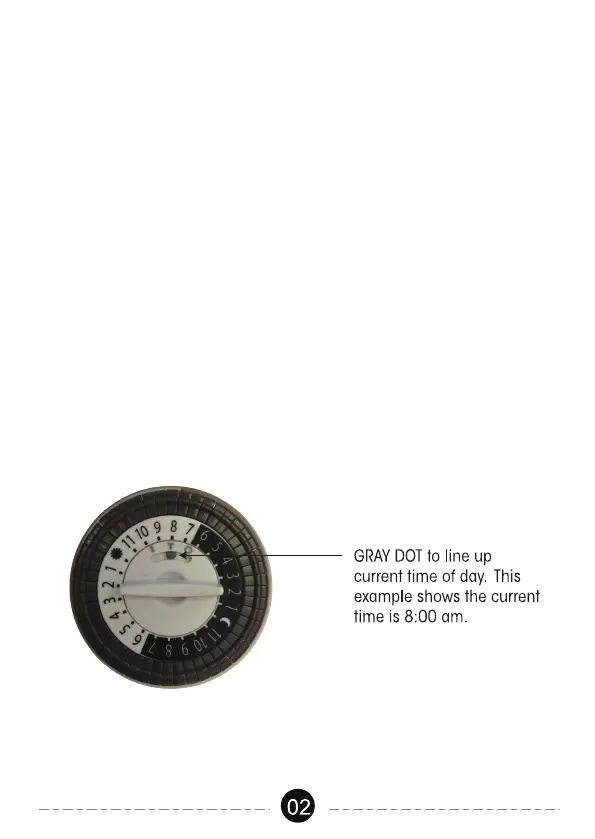

Turning dial clockwise until the gray dot lines up with the current time. The
pins (slices around the dial) are in the increments of 30 minutes. The
white semicircle stands for 7am - 6pm and the black semicircle stands for
7pm - 6am, shown as picture.
