Specifications:
Input Voltage:
- 125VAC, 60Hz.
Max Power Rating:
- 125VAC, 15A, 60Hz, 1875W,
Cord:
- 6FT SJT 14/3 AWG.
Set the ON/OFF time:

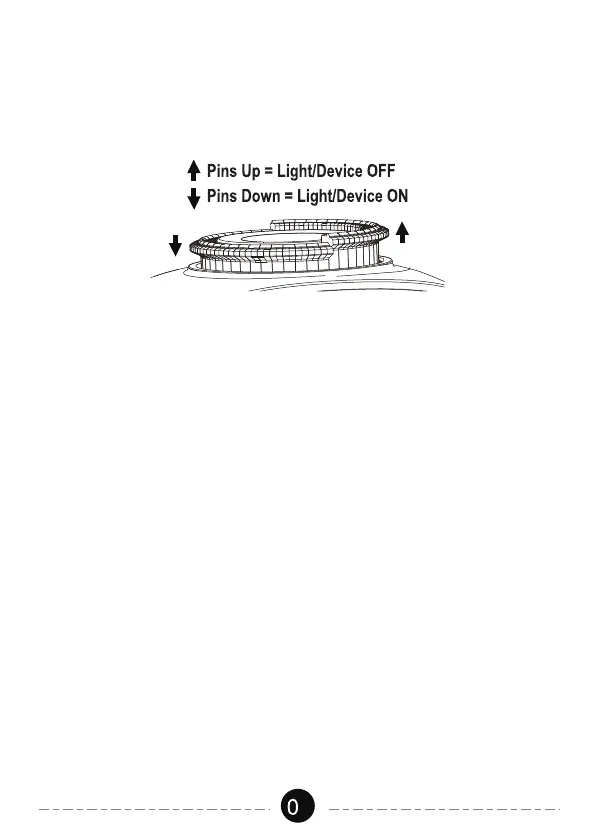

Begin with all pins pulled up. Push the pins down for the periods of time you
want the timer to be ON. Pins in down position represents ON and up position
represents OFF, shown as picture.
Install the power strip
1. Plug the power strip into a 125VAC outlet.
2. Push the “Red Switch” to “RESET” mode.
NOTE: The 4 “SWITCH control” outlets on the right of the power strip are
controlled by the main switch, when it is ON, the 4 outlets are ON,
or it is OFF.
3. The 4 “TIMER control” outlets: Change the timer mode by turning the inner
dial and aligning the gray dot with the symbol.
“ O ” for the 4 “TIMER control” outlets always OFF.
“ I ” for the 4 “TIMER control” outlets always ON.
“ T ” for the 4 “TIMER control” outlets to follow your programmed settings.
