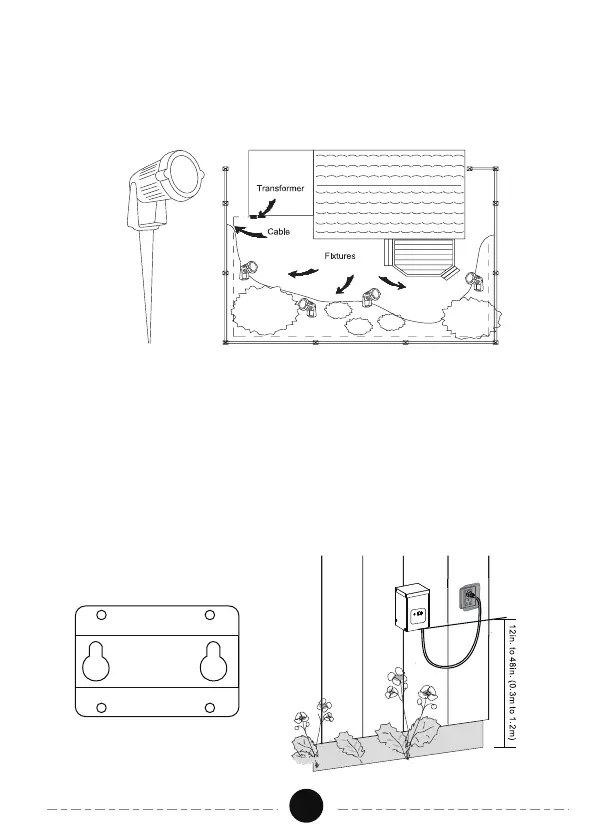

Lay your fixtures (not included) to your desired location. Be sure they do not
exceed the 300-watt rating of the transformer. Coil the rest of the cable after
connecting the last fixture.
3.Placing Your Fixtures and Routing the cable
Turn the transformer on. Use the cable connectors to attach your fixtures
with the cable. Then it will light up.
4.Attaching Your Fixtures
Mount the transformer directly to a solid wall surface using supplied screws
and mounting bracket with slotted holes. 12 inches to 48 inches (0.3m to
1.2m) height from the ground would be recommended.
5.Mounting the Transformer
03
