Operating Instructions
04

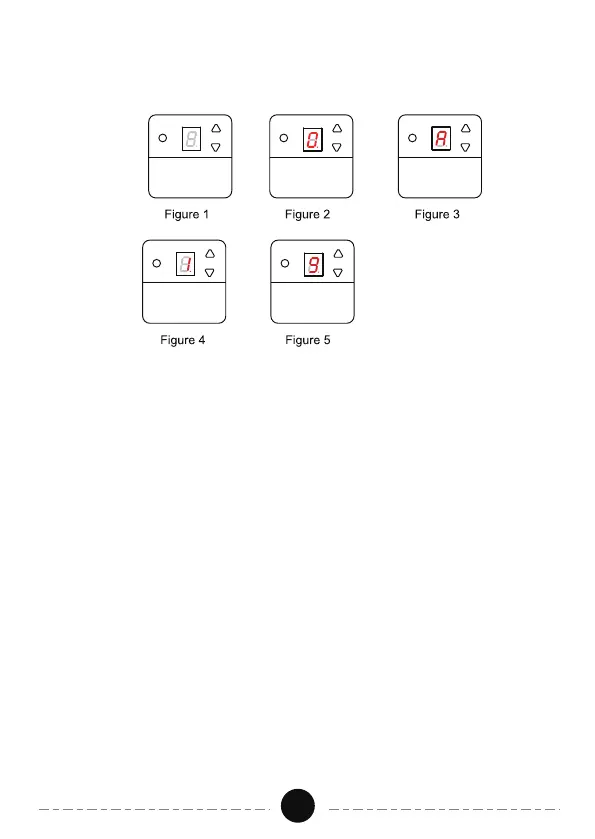

Figure 1: OFF MODE
The transformer does not work, there is no output voltage, and the load
lamps will not light.
Figure 2: ON MODE
The transformer will maintain the output throughout the day, and the load
lamps will always be on.
Figure 3: AUTO MODE
In this mode, the transformer will take 30s to detect the external
environment firstly. If it is night, the transformer will start output 30s later,
then the load lamps will light on automatically and off at dawn. If it is during
the day, the transformer will have no output and the load lamps will not light.
Note: If the light emitted by the load lamps shines on the sensor at night, it
may cause the transformer to continuously switch on/off, and the load lamps
flash continuously, with a flash interval of 30s.
Figure 4 &Figure 5: COUNTDOWN MODE
In this mode, the transformer will also take 30s to detect the external
environment firstly. If it is night, the transformer will start output 30s later
