NDS3208 8 in 1 MPEG-2 Encoder User’s Manual
9 / 29

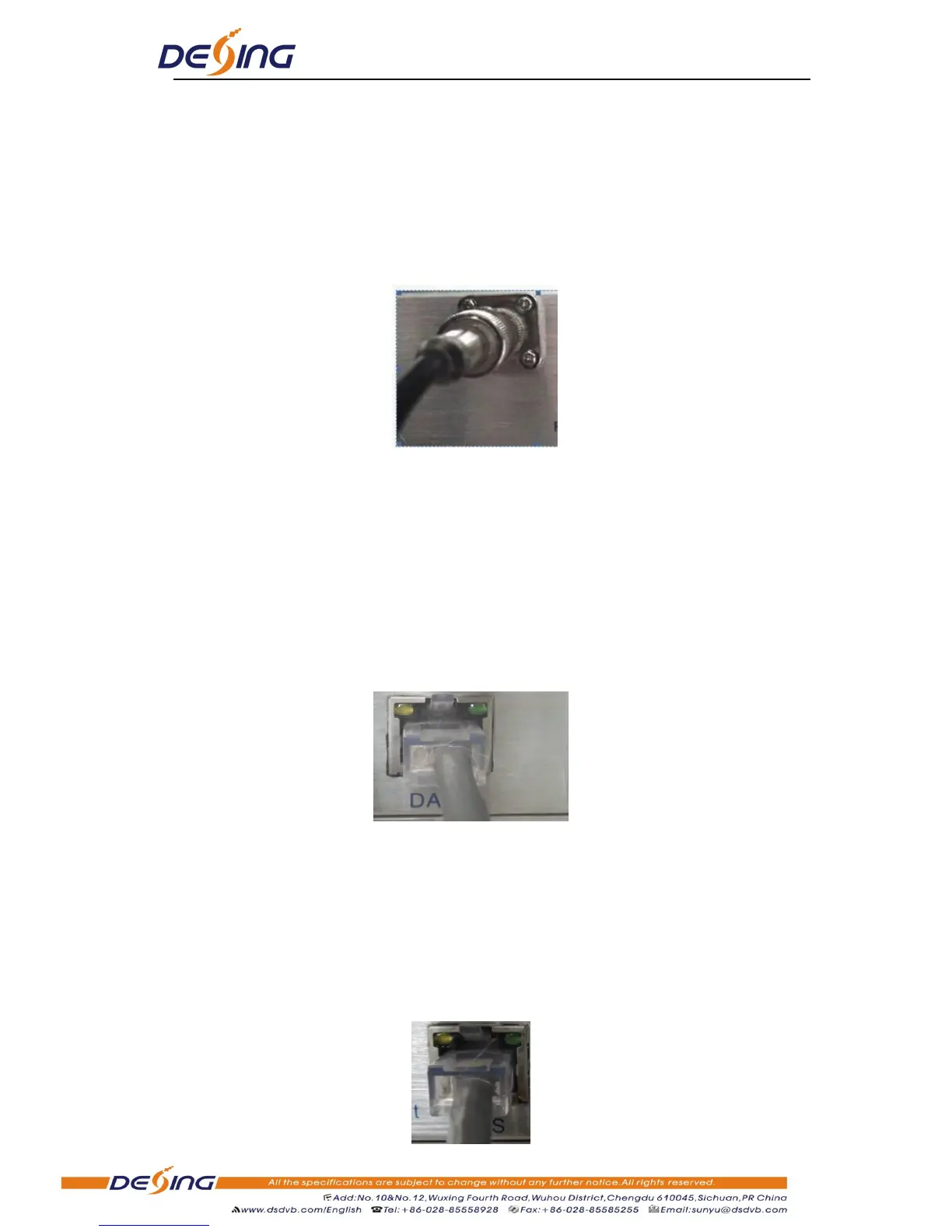

User can firstly find the ASI output interface on the device according to the connector mark
described on the rear panel illustration, and then connect the ASI cable (in the accessories). One
end is connected to the encoder‟s ASI out connector (ASI1, ASI2) while the other end to the TS
stream multiplexer or modulator‟s ASI input port. The encoder‟s ASI output interface and its
connection are illustrated as follow:
2.4.6 IP Output Interface connection
Users can firstly find the DATA interface on the device according to the connector mark
described on the rear panel illustration, and then connect the network (CAT5). One end of the
network cable is connected to the encoder‟s DATA output connector, while the other end to the
TS stream multiplexer IP input port or other device which can input IP signal. The encoder‟s
DATA connection is illustrated as follows:
2.4.7 NMS Connection
Users can firstly find the NMS interface on the device according to the connector mark
described on the rear panel illustration, and then connect the network (CAT5). One end of the
network cable is connected to the encoder‟s NMS connecter, while the other end to the
computer or the PC. The encoder‟s NMS connection is illustrated as follows:
