NDS3208 8 in 1 MPEG-2 Encoder User’s Manual
3 / 29

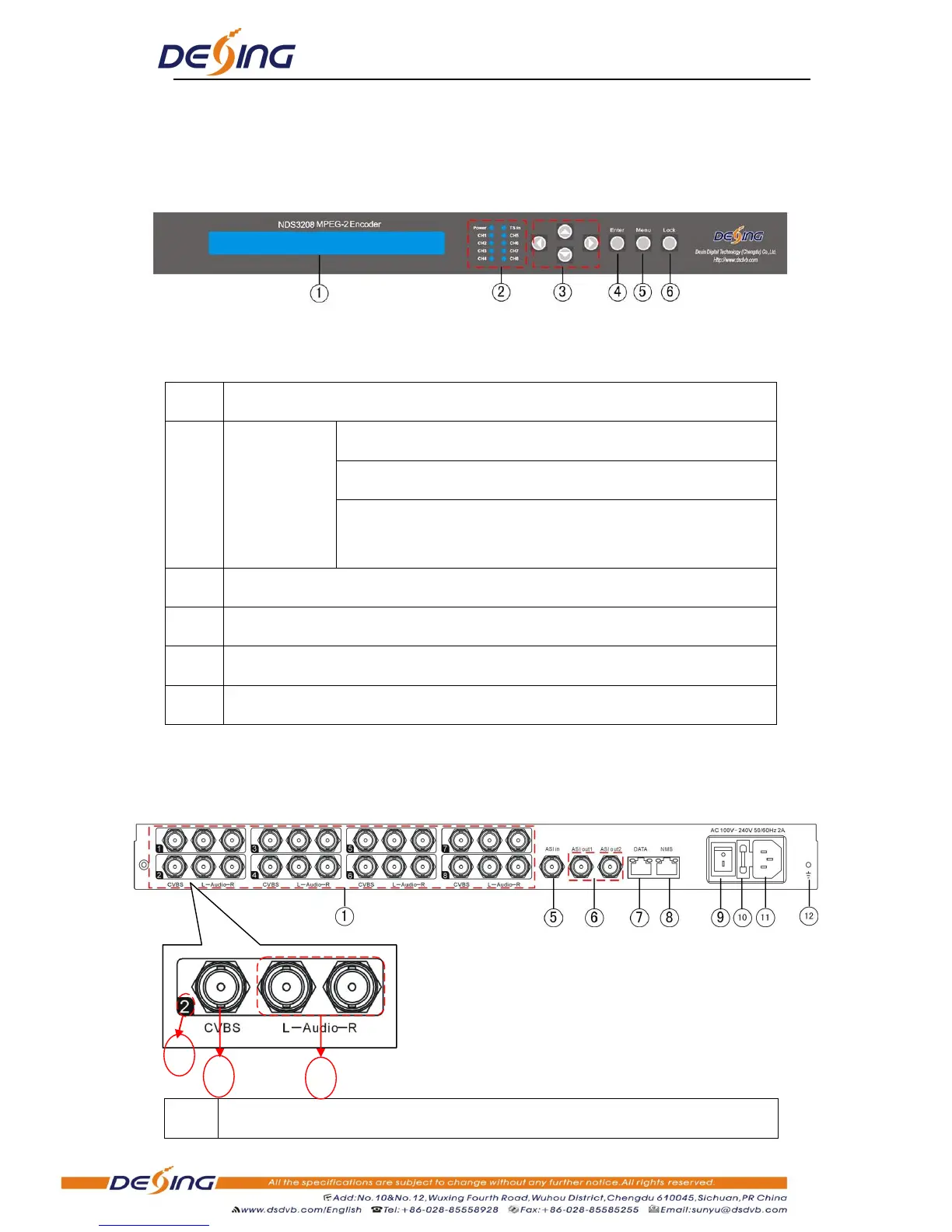

1.5 Appearance and Illustration
Front Panel Illustration:
Indicate area: All indicators will light on when the device is on the current working state.
1
LCD screen
2
Indicators
Power indicator
TS in: input lock indicator
CH1-CH8: When program has been multiplexed, the
indicator will be on.
3
UP/ DOWN, LEFT/RIGHT keys
4
Enter key
5
Menu key
6
Lock key
Rear Panel Illustration:
1
8 * CVBS input ports
2
3
4
