2.4 Factory Testing Jumper

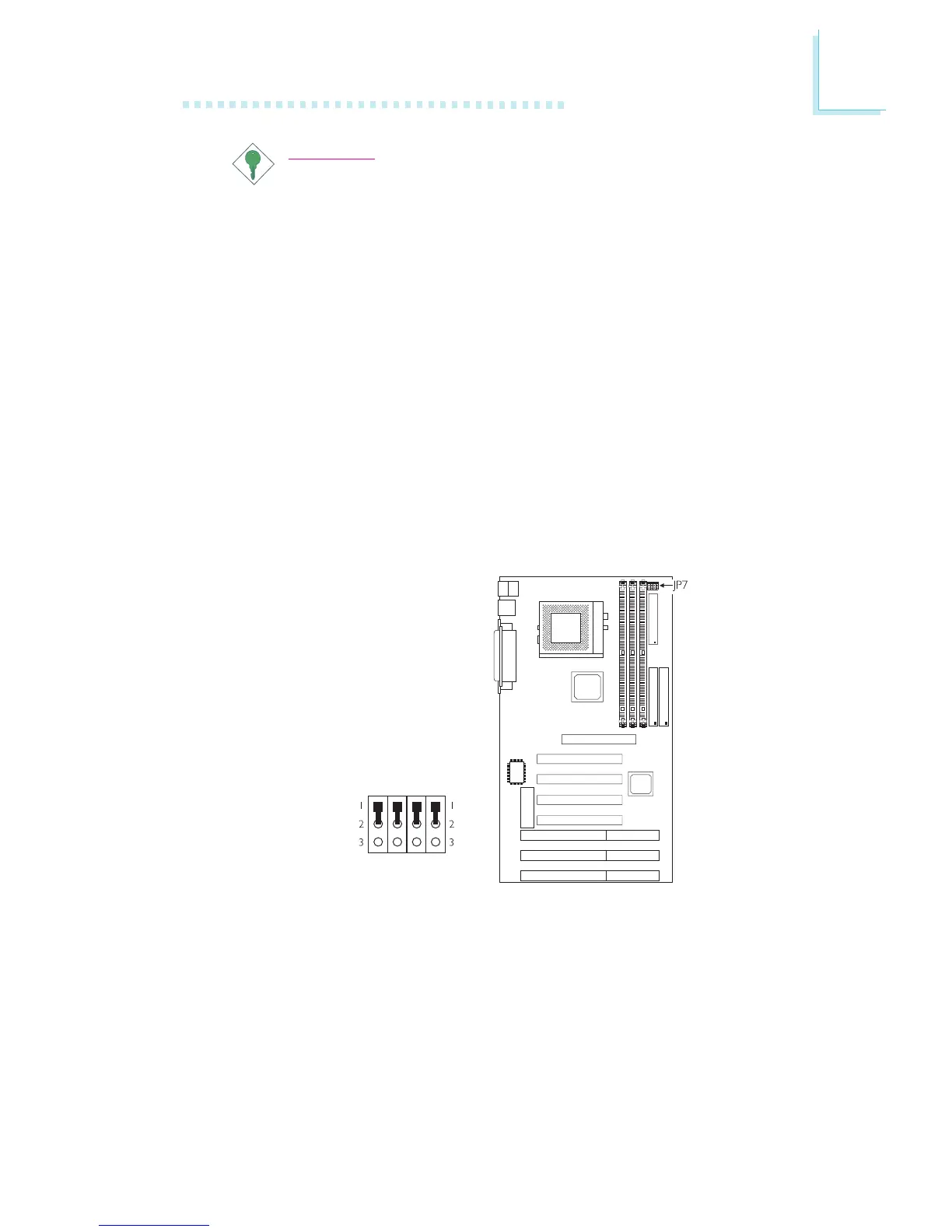

Factory Testing Jumper - Jumper JP7
This jumper is for factory use only. Please leave it in its default
setting - pins 1 and 2 On.
1-2 On: Default
Important:
The frequency ratio of some processors shown in the table
may have been locked by the manufacturer. If you are using
this kind of processor, setting an extended ratio for the
processor (using SW1) will have no effect. The system will
instead use its factory default ratio.
The processors supported by the system board support
VID (Voltage Identification). The switching voltage regulator
on the system board will automatically set the voltage
regulator according to the voltage of the processor.
