DFPLayer Mini

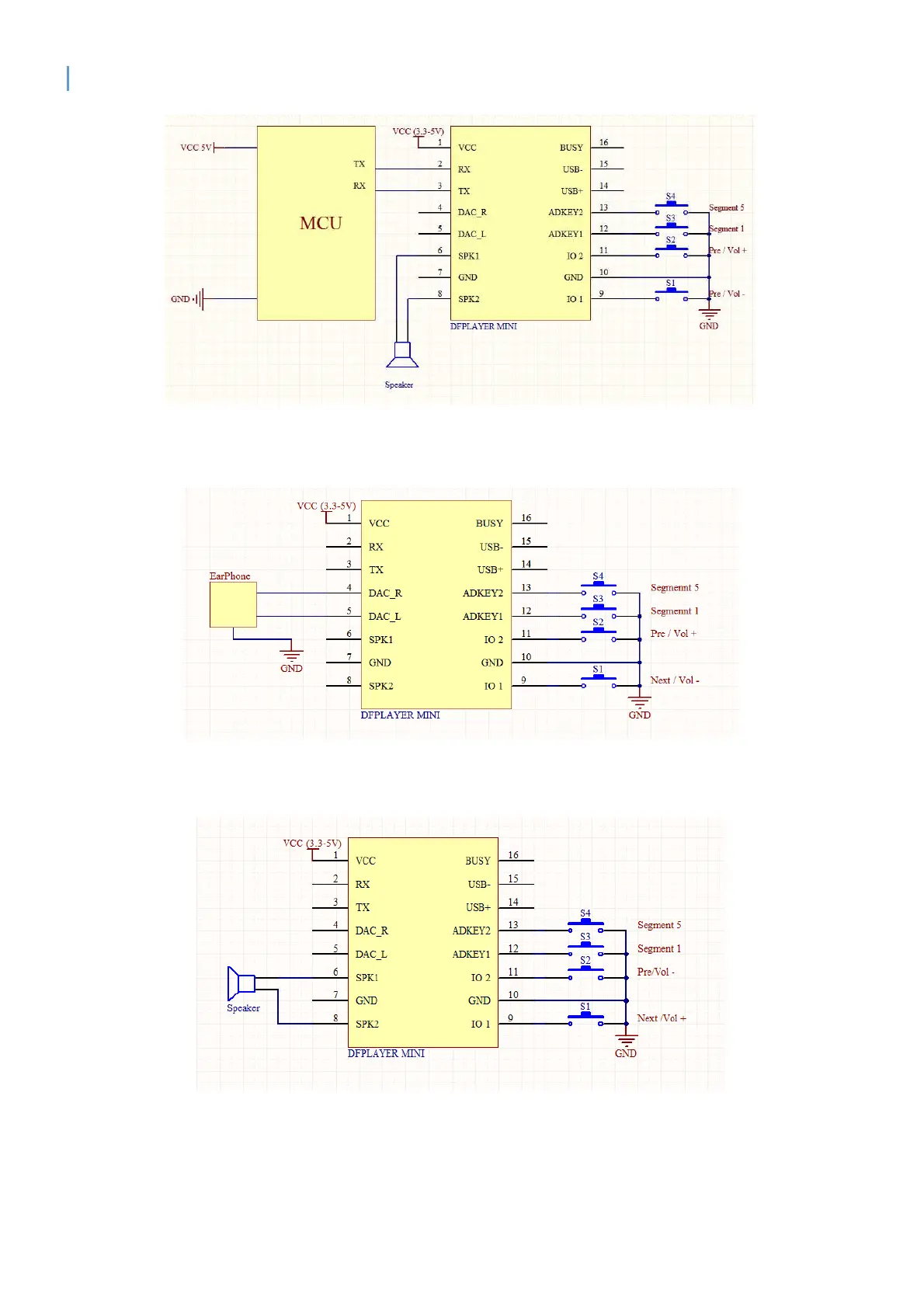

Figure 4.2 Serial Connect (5v)

4.2. Other Refer Diagram

Figure 4.3 headset connect module

Between the headset and the module can string a 100R resistor, make a limiting

Figure 4.4 speaker connect module
