DHD.audio SX2 - 52-1998 A Cabling Overview

Specications and design are subject to change without notice. The content of this document is for information only. The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed
without notice. No liability will be accepted by the publisher for any consequence of its use. Publication thereof does neither convey nor imply any license under patent- or other industrial or intellectual property rights.
Support
SX2 Mixing Console Bundle Information
© 2019 DHD audio GmbH - Version 1.0.0 - HE, 21.03.2019
Page 16
DHD Network, Ethernet CAT5/6
APC Audio, Power, Control, Ethernet CAT5/6
OFF OFF OFF OFF OFF OFF
ON ON ON ON ON ON
OFF OFF OFF OFF
ON ON ON ON
XS MultiI/O Box 52-1335Aempty
XS2 I/O Core 52-1830A
DHD Network, TCP/IP
external control option,
maintenance (configuration)
& Dante 4x4 channel interface
Fast Ethernet
100 Mbit/s
Link/Activity
52-5614A Central Module52-5620A Fader Module
APC 4
APC 1
APC 2
Gigabit Ethernet
1 Gbit/s
Link/Activity
Configuration note:
Make sure, that 52-1335 is selected at
APC 4 at the Hardware
page of the SX2config software.

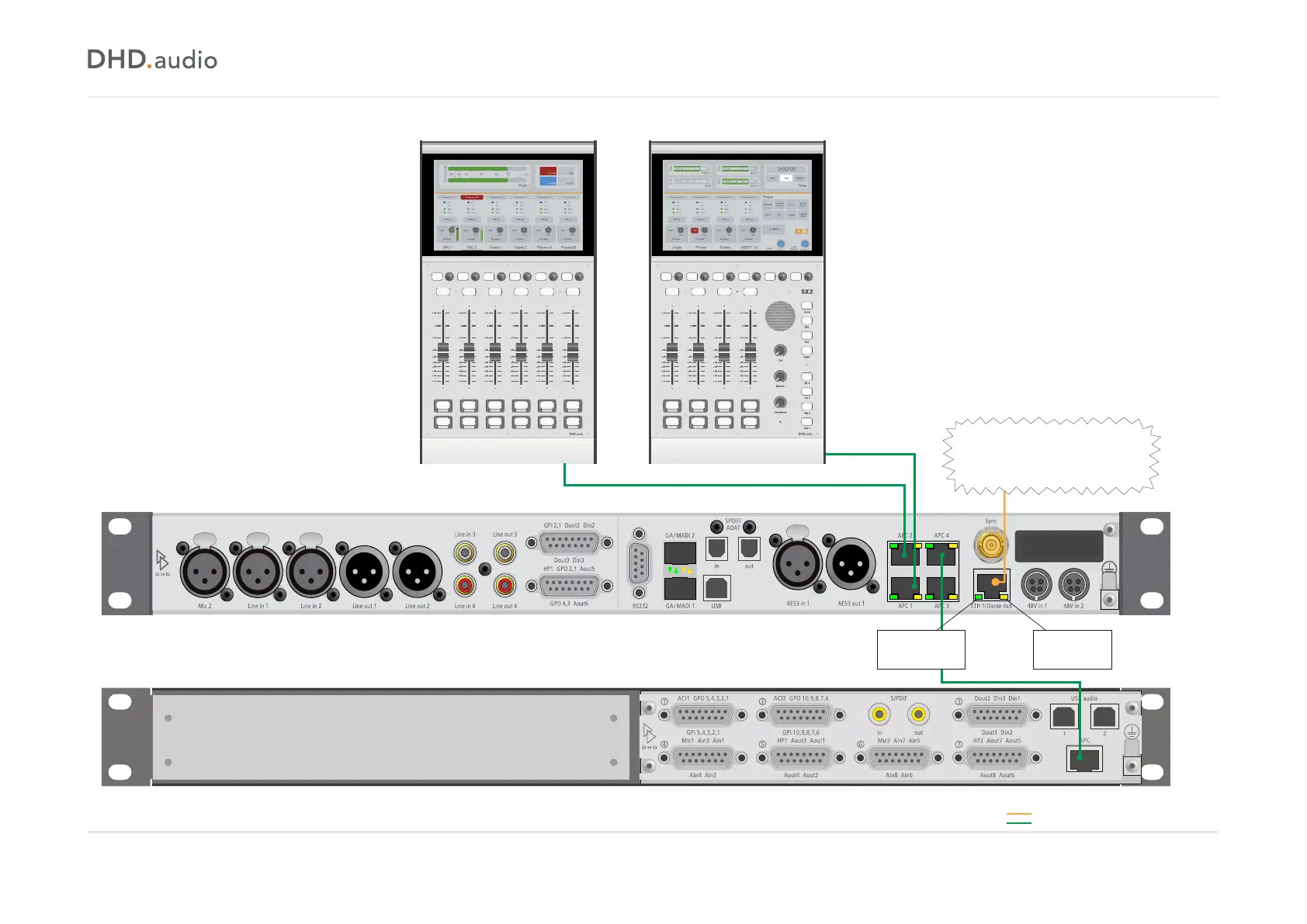

52-1998A - cabling overview
