DHD.audio SX2 - 52-1830 D-Sub 15 Lower Connector Pin Assignment

Specications and design are subject to change without notice. The content of this document is for information only. The information presented in this document does not form part
of any quotation or contract, is believed to be accurate and reliable and may be changed without notice. No liability will be accepted by the publisher for any consequence of its
use. Publication thereof does neither convey nor imply any license under patent- or other industrial or intellectual property rights.
Support
SX2 Mixing Console Bundle Information
© 2019 DHD audio GmbH - Version 1.0.0 - HE, 21.03.2019
Page 35

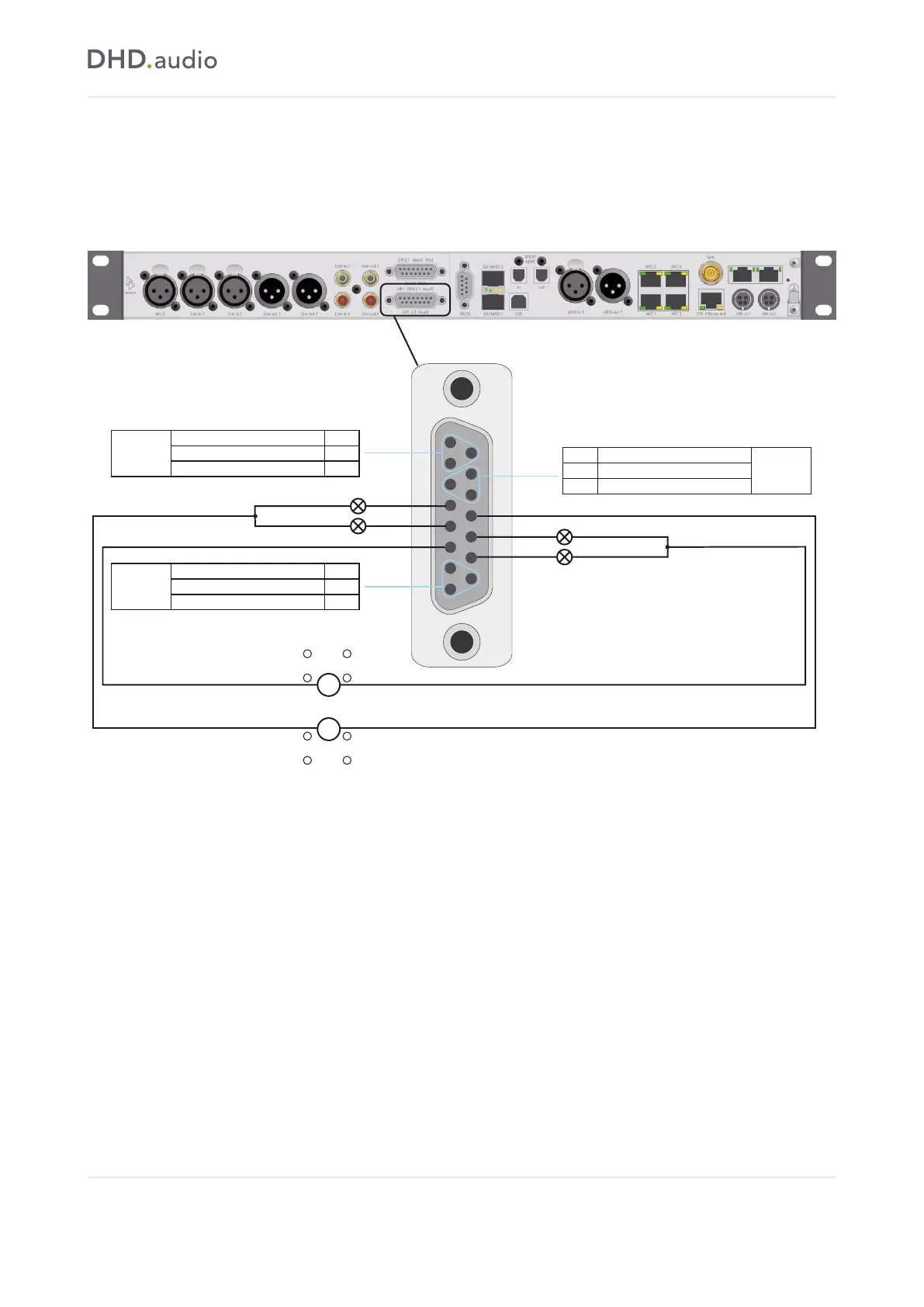

52-1830 Pin Assignment
D-Sub 15 - lower connector
Notes:
GPI and GPO sections are isolated from each other and from the modules internal circuits.
GPO section uses common wire GPO_COM_1-2 for GPO 1 and GPO 2 and
GPO_COM_3-4 for GPO 3 and GPO 4.
Polarity of DC between GPOs and GPO_COM is not relevant.
GPO: maximum rated current: 0,2A (resettable fuse), maximum peak switched
voltage: 30V AC or DC
GPI - general purpose input
GPO - general purpose output
1
8
9
15
Label Pin
TypePin Label
Aout5
1
2
9
10
11
3
LINE out 6+
LINE out 6-
SHIELD
Aout6
Type
LINE out 5+
LINE out 5-
SHIELD
HP1
7
8
15
HP 1 L
HP 1 R
HP COM RETURN
GPO 1
DC
+
or
-
5....30V
GPO_COM_1-2
GPO 2
GPO 3
5....30V
GPO 4
GPO_COM_3-4
+
or
-
DC
+
or
-
+
or
-
