DHP 5440096 - Assembly Step 2; Side Rail Connection; Front and Rear Rail Attachment

DETAIL 1
DETAIL 2
DETAIL 3
DETAIL 4
DETAIL 5
8 /15

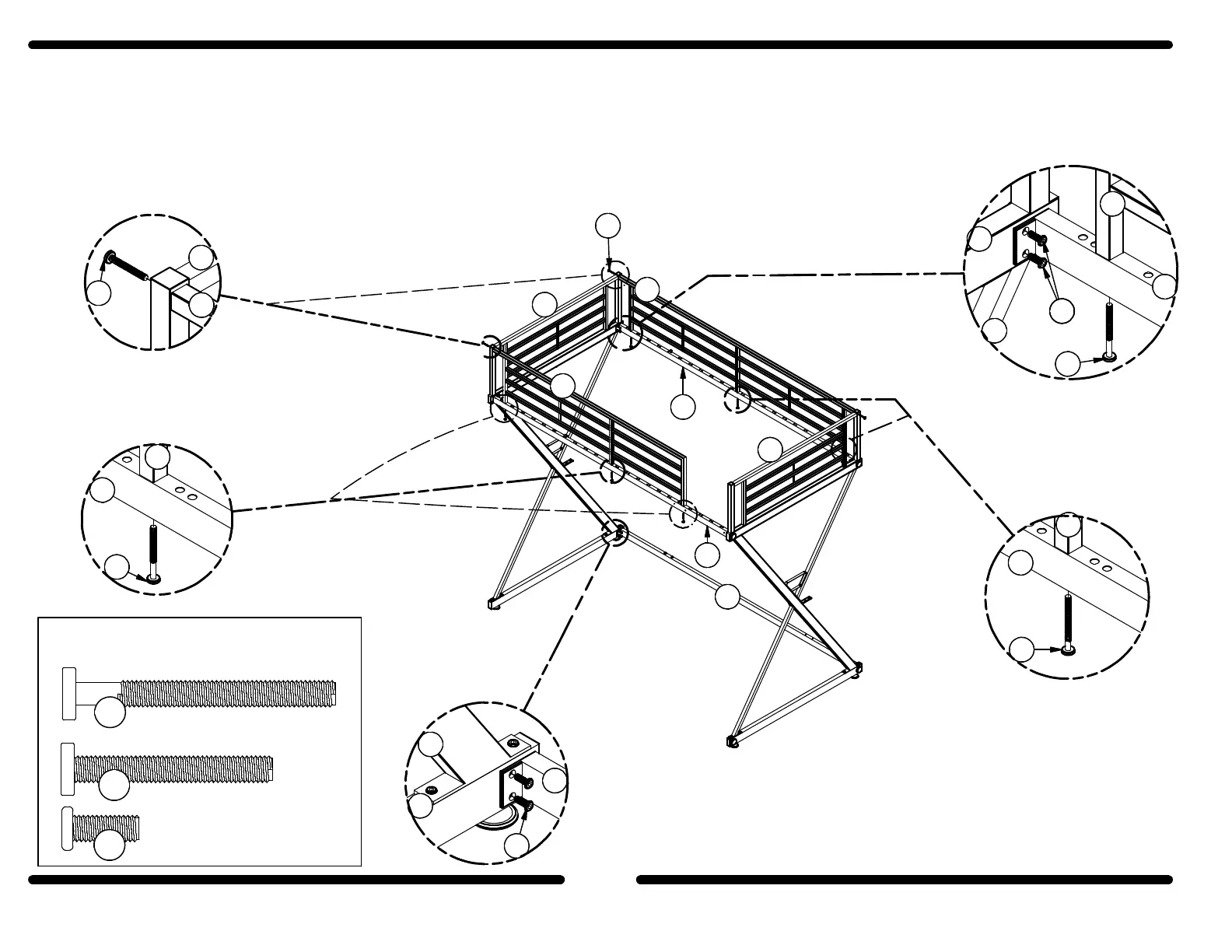

As shown in detail (1 & 2), attach Side Rails (H , G & I) to the Left and Right Guard Rails (E & F) with bolts (5).
As shown in details (1, 3, 4 & 5), attach the Front & Rear Guard Rails (K & L) to Left and Right Guard Rails (E & F) with bolts
(2), and to Side Rails (H & G) with Bolt (1).
2
Hardware Required
x 12
5
B34544009600
H
F
E
K
G
G
L
5
F
C
1
5
1
G
L
2
F
K
1
H
K
5
J
A
I
1
2
x 3
x 6
I
L
2
