DSP-22-2 User Manual Page 4 of 25 DSP-22-2_MAN_E
1. Introduction
The DSP-22-2 detector is intended to be a two-channel detector that can work with both inductive loops as well
as the new Diablo Control Free Exit Probe. The detector is powered by a high-performance 8-bit microcontroller
that does not skimp on performance. The DSP-22-2 detector has a small footprint and was designed to directly
plug into many DoorKing operators.
The detector uses a 3-pin Molex connector for its power connections and the Channel 1 solid state output. The
Channel 2 relay outputs have separate screw terminals for wired connections.

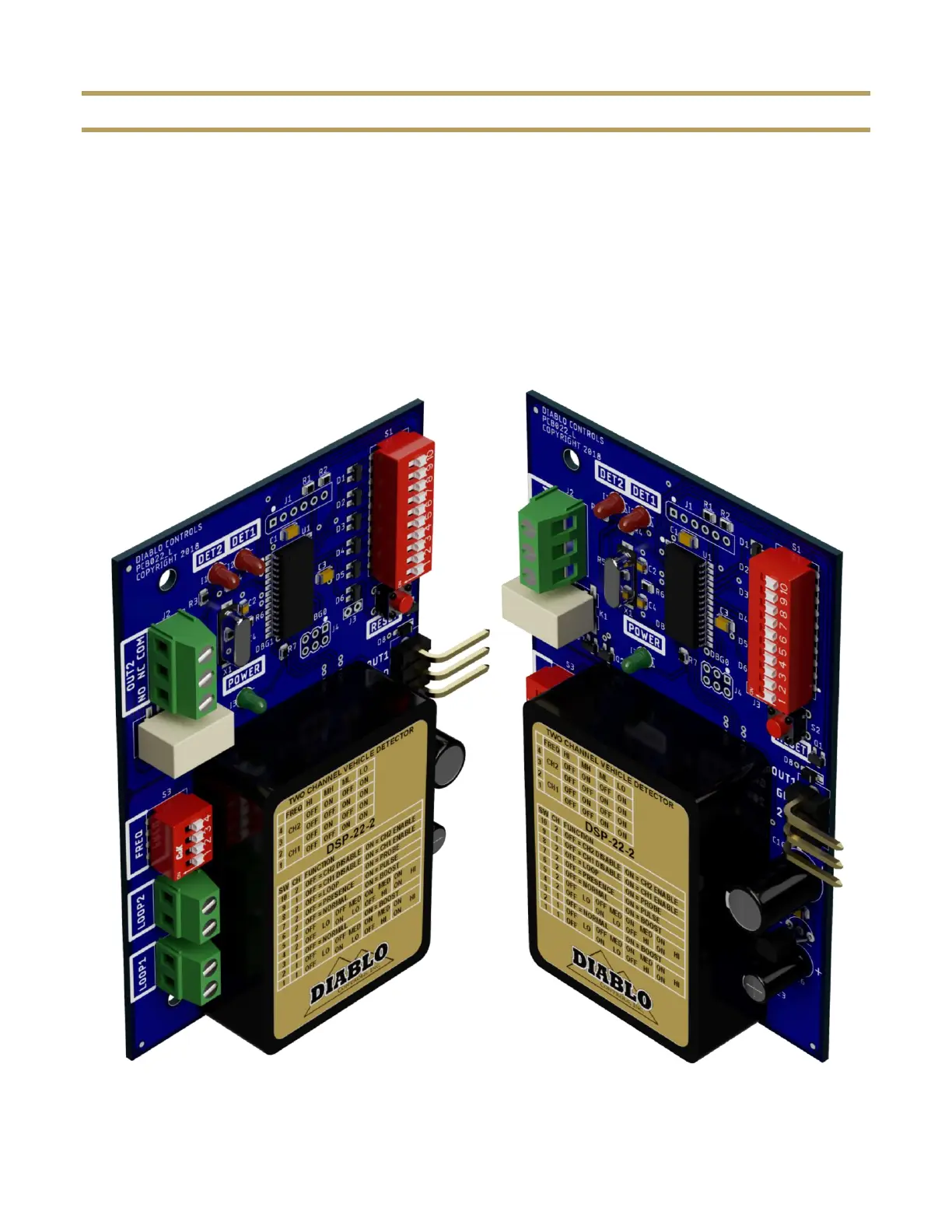

Figure 1: Product Views
