Mechanical Data
Mounting Position: Any
Housing Material: Lexan
Detector Size: 4.300 inches (High) x 2.950 inches (Wide) x .820 inches (Deep)
109.22 mm (High) x 74.93 mm (Wide) x 20.83 mm (Deep)

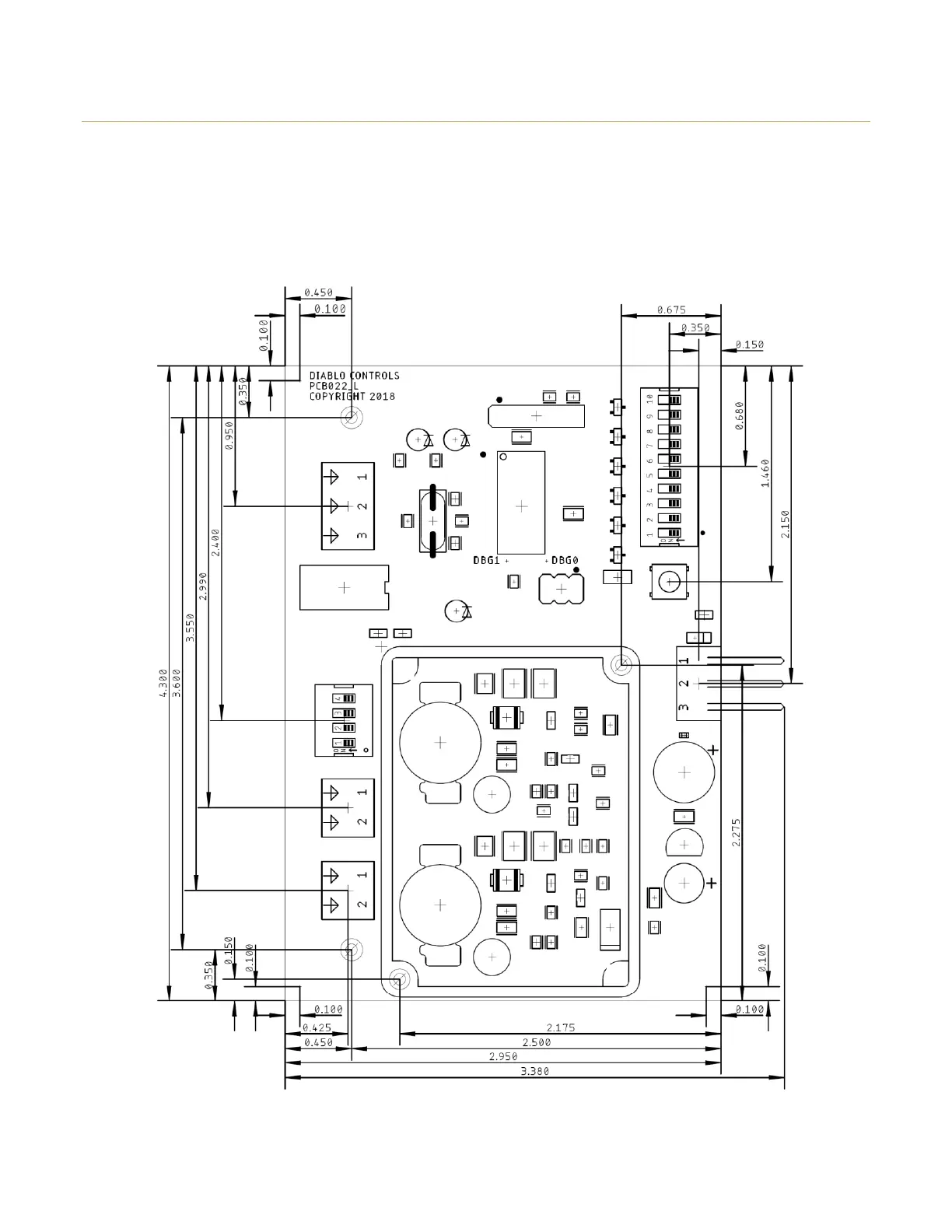

Figure 2: Physical Dimensions
