www.diamatic.eu 4/11 info@diamatic.eu
The choice of professionals
1. Introduction
It is important that all persons who are working with or maintaining this
machine must read this manual carefully and understand it fully. Keep this
manual near to the machine, so it can always be consulted.
Only authorized and trained personnel may operate this machine.
2. Machine description
The Diamatic 735PRO is an electrical driven planetary grinding machine.
This is a three headed machine for levelling and polishing of floors.
Application
The Diamatic 735PRO can be used on almost any floor to plane, to make
ready for coatings, or to remove coatings or glue residues.

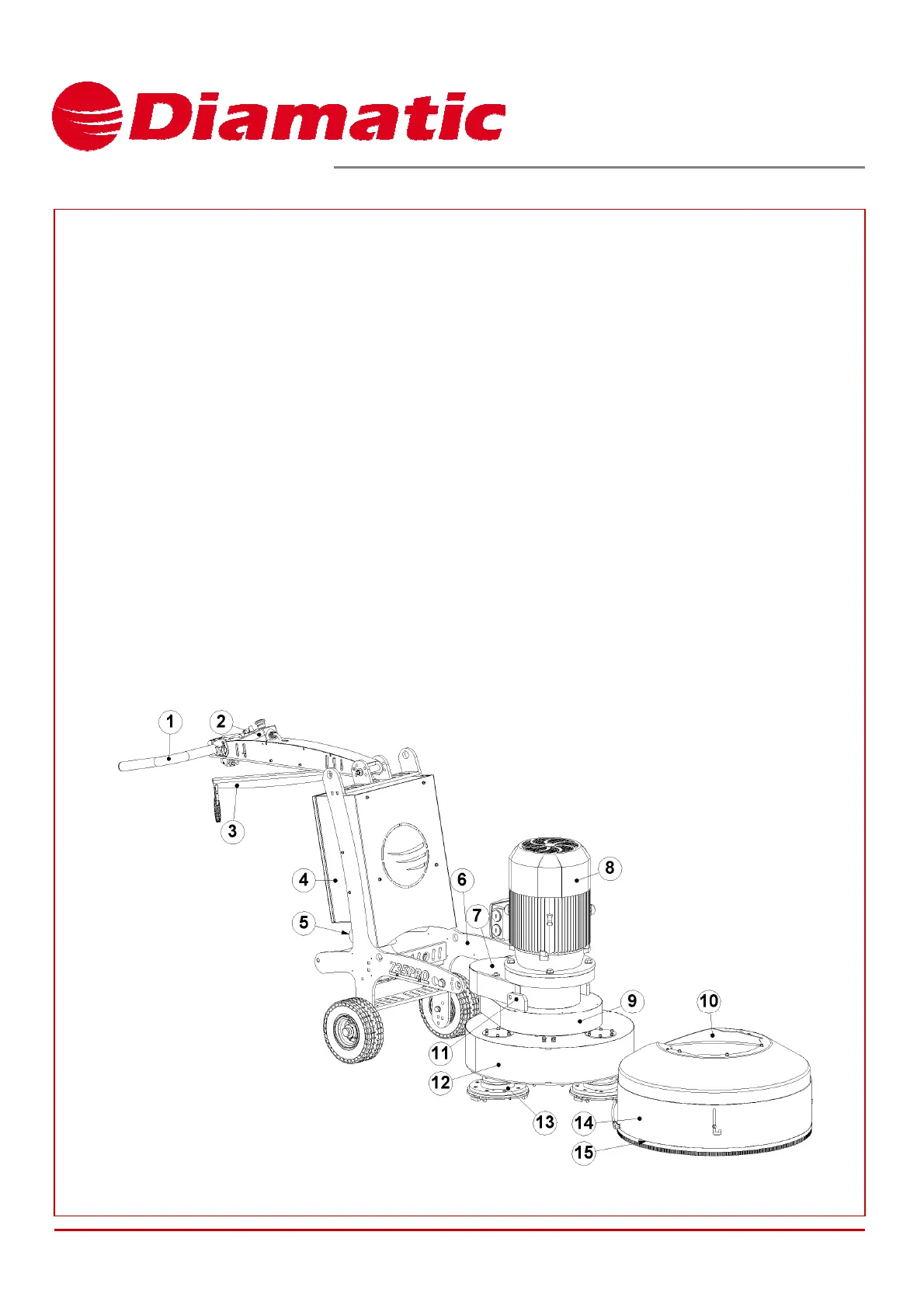

1 Steer handle 6 Machine frame 11 Frame mounting eyes
2 Operating panel 7 Protection cover 12 Lower drive
3 Swing arm for dust hose 8 Drive motor 13 Grinding buffer
4 Electric control box 9 Upper drive 14 Dust floating shroud
5 Electric supply connection 10 Dust cover 15 Brush for shroud
