INSTALLATION
4

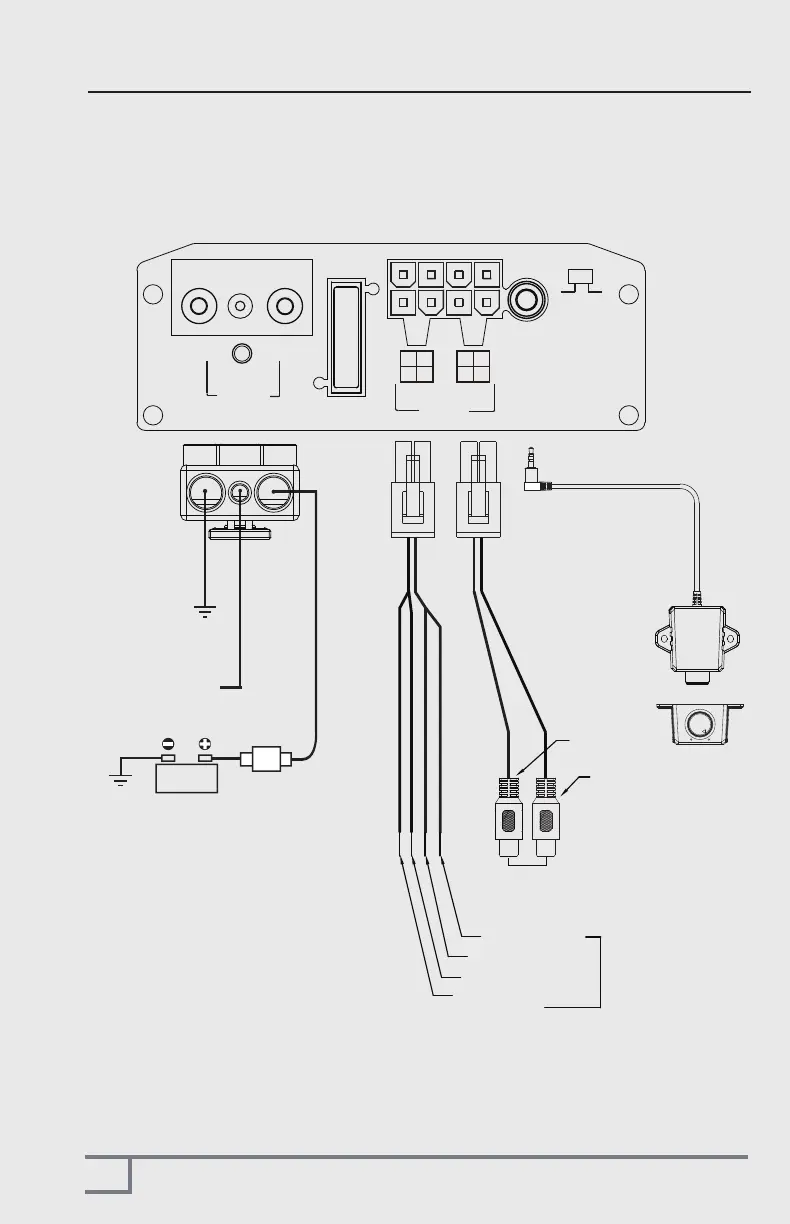

Remote Control
REMOTE CONTROL
MIN MAX
White
Red
To audio
Low Outputs
L-CH
R-CH
White/Black(L-)
White(L+)
Gray/Black(R-)
Gray(R+)
To Audio Hi Outputs
To REMOTE TURN-ON
Terminal Of Head Unit
Chassis
Ground
Point
Chassis
Ground
Point
Battery
Fuse
POWER
GND +12V
REM
REMOTE
R-
R+
L-L+
FUSE
R-
R+
L-
L+
LOW HI
OFFON
INPUTS
AUTO
POWER ON
PANEL CONNECTIONS AND FEATURES
