Low Level Input Wiring
Low-level (RCA) input wiring is preferred for best audio performance. Most trunk
or hatchback installations will require a 15-20 foot RCA cable, Always use a high
quality cable.
NOTE: Do not connect BOTH the high
level and low level inputs from your
receiver to your amplifier at the same time!
SPECIAL NOTE: Always route power and signal seperately
POWER AND INPUT SIGNAL WIRING
NOTE: DO NOT USE CCA wiring kits EVER!!!!!
Using this type of wire VOIDS your warranty!

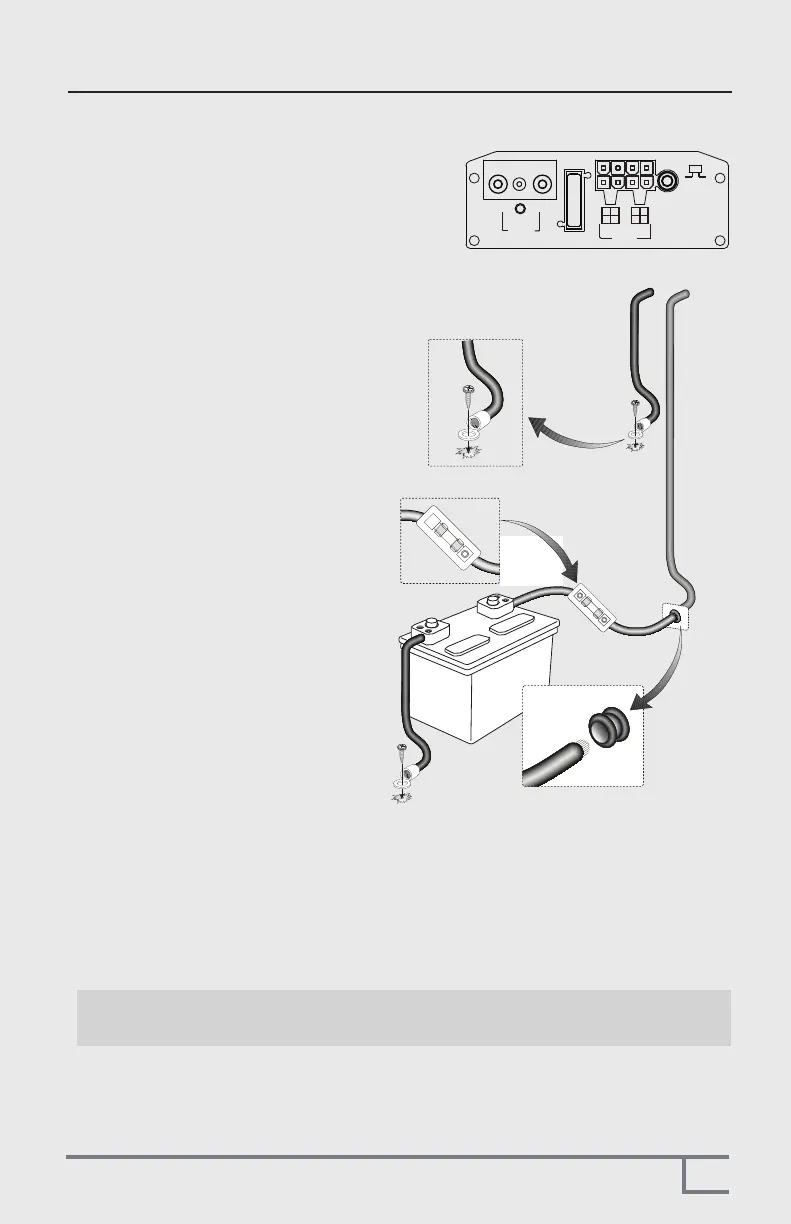

1. Connect your 8 guage power wire
DIRECTLY to the battery B+ terminal
with a high quality ring terminal. Make
sure that a fuse holder is approx. 18
inches from the battery and the fuse
should be NO larger than 20 amperes.
2. Make sure to run the power wire thru a
gromment in the firewall to eliminate any
possiblitity of shorts.
3. Route the Remote Control cable (phone
wire) thru your vehicle to the sparetire
area of you trunk.
4. Connect a remote turn on wire to your
head units remote output using 16
gauge blue wire (not included)
SPECIAL NOTE:
The DAST12 is equipped with an
automatic turn on circuit if NO
switched 12 volts is available for
turn-on.
Power wiring is very straight forward. Use a high
quality power kit (not supplied or included)
INSTALLATION
5
POWER
GND +12V
REM
REMOTE
R-
R+
L-L+
FUSE
R-
R+
L-
L+
LOW HI
OFFON
INPUTS
AUTO
POWER ON
To Next Page
