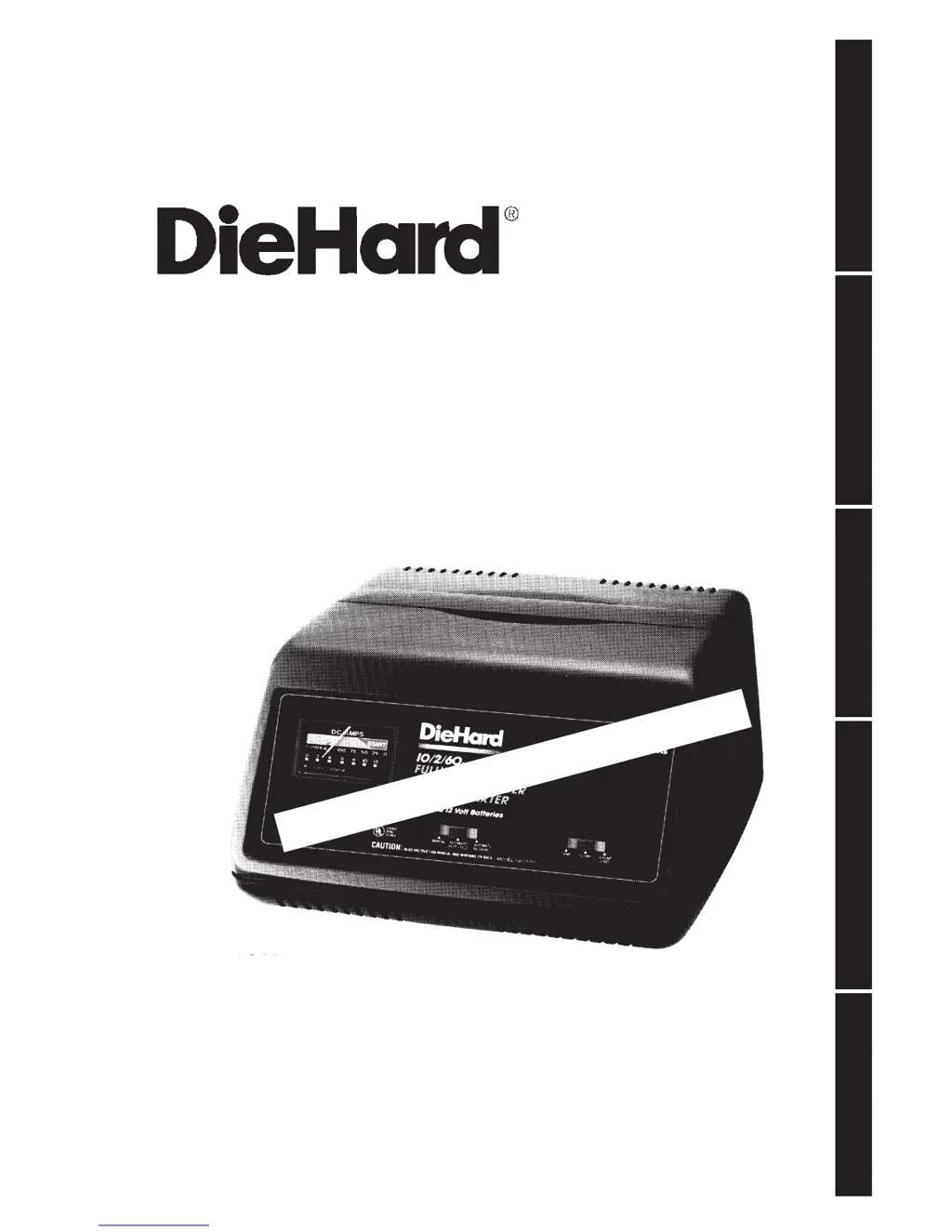

1
OPERATION
PARTS SAFETY
MAINTENANCE
TROUBLESHOOTING
CAUTION:
Before first use of charger, read this manual, and
follow all its Safety and Operating Instructions with
every charger use.
Save these instructions.
600-198
Made in U.S.A. of U.S. and imported parts.
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
OWNER’S MANUAL
Model No.
200.713201
20/15/10/2 AMP
FULLY AUTOMATIC
BATTERY CHARGER
THIS ART FOR PLACEMENT PURPOSES
ONLY

Table of Contents

Questions and Answers

  • L
    Lance StevensonJul 31, 2025
    What to do if my DieHard 200.713201 shows no ammeter reading?
    • L
      Lisa Mann DDSJul 31, 2025
      If the DieHard Battery Charger shows no ammeter reading, first ensure the clamps are making a solid connection to clean battery posts. A severely discharged battery might not accept an automatic charge; in this case, switch to the manual setting. Also, the 2-amp charge rate may show little activity on the ammeter. Verify that the AC outlet and extension cords are properly connected and that the outlet's fuse or circuit breaker is functional.
  • S
    Sean BallAug 5, 2025
    Why does the ammeter read less than selected charge rate on my DieHard 200.713201 Battery Charger?
    • G
      Gary StewartAug 5, 2025
      If the ammeter reads less than the selected charge rate on your DieHard Battery Charger, it could be due to several reasons. The extension cord might be too long or not heavy enough; try using a shorter or heavier gauge cord. The battery may have a weak cell or a sulfated plate. A sulfated battery may eventually take a normal charge if left connected. Continue charging the battery. If the battery still won't charge, have it tested by a technician.
  • J
    Joshua JohnsonAug 12, 2025
    What to do if the ammeter needle stays at the right side of the DieHard Battery Charger meter?
    • M
      mark46Aug 12, 2025
      If the ammeter needle stays on the right side of the meter on your DieHard Battery Charger, it could mean the battery is severely discharged or the battery size selector switch is in the wrong position. Try charging the battery for another two hours. If the problem persists, consult a qualified technician. Ensure the size selection is in the correct 12 or 24 volt position.
  • P
    Paula WilcoxAug 17, 2025
    What to do if the circuit breaker in my DieHard Battery Charger cycles on and off?
    • A
      allenkatherineAug 18, 2025
      If the circuit breaker in your DieHard Battery Charger cycles on and off with a clicking sound in the manual setting, it indicates that the current draw is too high. First, separate the clamps. Then, inspect the battery cables for wear and replace them if necessary. Have a technician test the battery. Ensure that the charger leads are correctly connected to the battery.
  • A
    Adam LarsonAug 23, 2025
    Why is my DieHard Battery Charger making a loud buzz or hum?
    • M
      Michael DiazAug 25, 2025
      If your DieHard Battery Charger is making a loud buzzing or humming noise, this is likely due to the transformer laminations vibrating. You can continue charging, as this buzz is not abnormal.

Summary

Safety Precautions

Important Safety Instructions

Essential safety precautions for using the battery charger and handling batteries.

Personal Safety Precautions

Specific safety measures for personal protection when working with lead-acid batteries.

Operation Guide

Before Using Your Battery Charger

Guidance on charger requirements, assembly, plugging in, and extension cord use.

Preparing Your Battery to be Charged

Steps for preparing a lead-acid battery before connecting it to the charger.

Setting the Controls

Instructions for selecting battery type, voltage, charge type, and charge rate.

Charging Your Battery

Procedures for charging a battery inside or outside a vehicle.

Calculating Charge Time

Methods to determine battery charging duration using rating or voltmeter readings.

Maintenance and Care

Troubleshooting Guide

Parts Identification

Wiring Diagram

DieHard 200.713201 Specifications

General IconGeneral
Model200.713201
Input Voltage120V AC
Battery Voltage6V/12V
Maintain Amperage2A
Battery TypeStandard, AGM, Gel
Automatic Shut-OffYes
Reverse Polarity ProtectionYes
TypeBattery Charger
Safety FeaturesOvercharge protection
