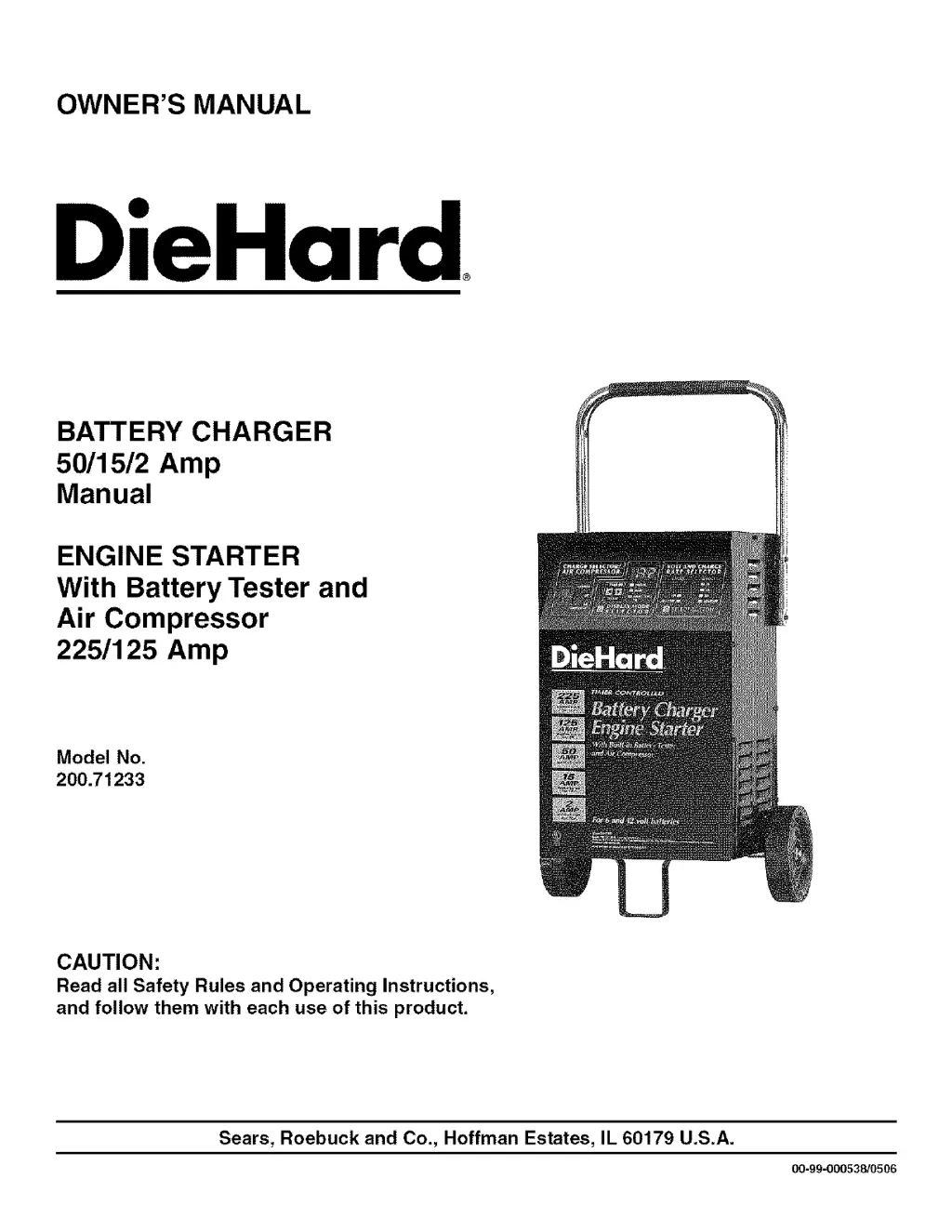

OWNER'S MANUAL

DieHard

BATTERY CHARGER

50/1512 Amp

Manual

ENGINE STARTER

With Battery Tester and

Air Compressor

225/125 Amp

Model No.

200.71233

CAUTION:

Read all Safety Rules and Operating Instructions,

and follow them with each use of this product.

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

00-99-000538/0506

Table of Contents

Questions and Answers:

P
pwarnerJul 28, 2025
What to do if DieHard Battery Charger digital display shows no reading or doesn't change?
- D
  Dennis OwensJul 29, 2025
  This could be happening because the battery is severely discharged, or the DISPLAY MODE SELECTOR and SELECT BUTTON may have been selected incorrectly. Continue to charge the battery for another two hours. If the problem continues, call Sears Service at 1-800-SEARS-64. Also, check if the DISPLAY MODE SELECTOR and SELECT BUTTON options are selected correctly. Continue to charge the battery for another two hours. If the problem continues, call Sears Service at 1-800-SEARS 64.
K
kevinbarberAug 2, 2025
What to do if DieHard 200.71233 Battery Charger circuit breaker cycles on and off?
- D
  dhammondAug 2, 2025
  The circuit breaker cycles when the current draw is too high. Here's what you can do: 1. Separate the battery clamps. 2. Inspect the cables for wear and replace them if necessary. 3. Have a Sears Service Center test the battery. 4. Ensure the connections are correct. 5. Verify that the Volt/Amp Selector is properly set.
C
Cody WalkerAug 6, 2025
Why does my DieHard 200.71233 display a lower charge rate than selected?
- K
  Kelly HerreraAug 6, 2025
  Several factors can cause the digital display to read less than the selected charge rate: * The extension cord might be too long or have a small wire gauge. Use a shorter or heavier gauge extension cord. * The battery may have a weak cell or sulfated plate. A sulfated battery may eventually accept a normal charge over time. If it doesn't, have a Sears Service Center test the battery. * The battery might only be partially discharged. Continue charging the battery.
M
Mark WilliamsAug 10, 2025
Why is the start cycle so short when cranking the engine with my DieHard Battery Charger?
- M
  Miranda BairdAug 10, 2025
  If cranking draws more than 225 amps, crank time may be less than 5 seconds. Ensure you wait 3 minutes before the next crank. Crank time varies with the amount of current drawn.
K
katelynwilsonAug 15, 2025
Why does my DieHard Battery Charger show 'OL' when using the air compressor?
- J
  Jessica McclainAug 15, 2025
  The 'OL' display indicates that the total pressure exceeds 120 PSI or the pressure exceeded 80 PSI before the air compressor started. Do not use the air compressor at pressures greater than 120 PSI. Start the air compressor first, then attach the nozzle to the product you want to inflate.
D
davisamyAug 19, 2025
Why does the DieHard 200.71233 Battery Charger digital display read 'HOT' when the compressor is selected?
- M
  Michael JohnsonAug 19, 2025
  The time limit on the compressor has expired. Let the compressor cool down for 20 minutes; it will automatically reset. Alternatively, turn the compressor switch OFF, and it will reset after 1 minute.
M
morrismarissaAug 23, 2025
Why is my DieHard Battery Charger making a loud buzzing or humming noise?
- E
  Elizabeth LunaAug 25, 2025
  The transformer laminations are vibrating. This buzzing sound is not abnormal, so you can continue charging.

DieHard 200.71233 Specifications

General

Model	200.71233
Input Voltage	120V AC
Charging Amperage	2A
Maintainer	Yes
Automatic Operation	Yes
Reverse Polarity Protection	Yes
Battery Type	Lead-acid, AGM, Gel
Type	Battery Charger
Output Voltage	6V/12V
Output Current	2A
Battery Compatibility	12V lead-acid batteries
Battery Voltage	12V

Summary

Important Safety Instructions

Personal Safety Precautions

Personal safety measures to follow when working with lead-acid batteries and the charger.

Before Using Your Battery Charger

Assembling Your Charger

Instructions for assembling the battery charger components before initial use.

Plugging It In

Preparing Your Battery To Be Charged

Maintenance And Care

Using Your Battery Charger

Setting The Controls

Guide to adjusting the touch pad controls and digital display for charging and testing.

Battery Test

Procedure for testing the battery's voltage and condition.

Alternator/Generator Test

Procedure for testing the vehicle's alternator or generator output.

Volt And Charge Rate Selector

Timer Functionality

Using The Compressor

Using The Engine Start Feature

Charging Your Battery

Charging Your Battery In The Vehicle

Step-by-step instructions for charging a battery while connected to the vehicle.

Charging Your Battery Outside The Vehicle

Step-by-step instructions for charging a battery when removed from the vehicle.

Calculating Charge Times

Troubleshooting
