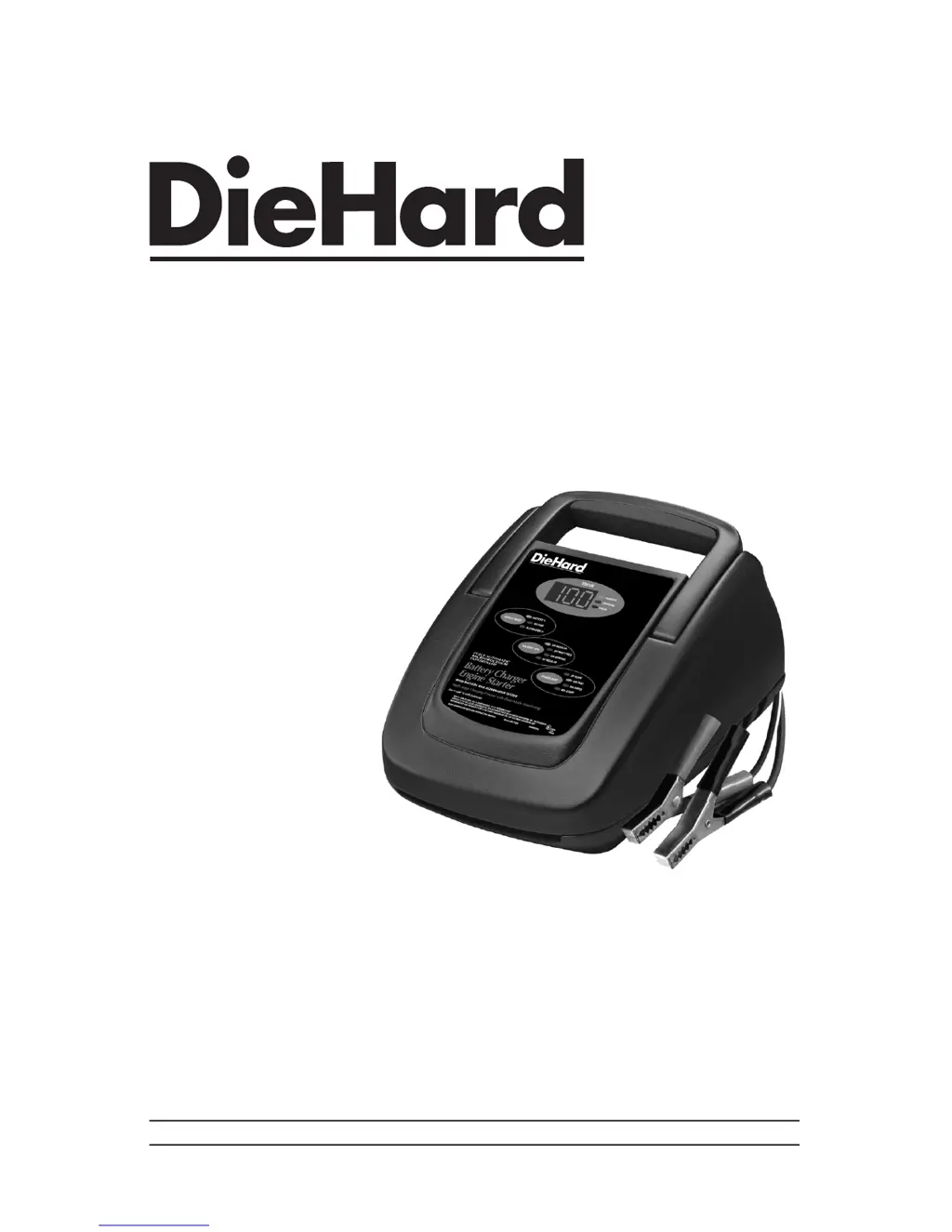

Microprocessor Controlled,

Fully Automatic Operation

Battery Charger

with Engine Starter

Plus Battery and Alternator

Tester

00-99-000878/0808

Model No.

200.71225

CAUTION:

Read all Safety Rules and Operating Instructions,

and follow them with each use of this product.

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

OPERATOR’S MANUAL

®

2-amp slow charge

12-amp fast charge

30-amp rapid charge

80-amp engine start

FOR 6 AND 12-VOLT

BATTERIES

Other manuals for DieHard 200.71225

Owner's Manual16 pages

Questions and Answers:

W
Walter HendersonJul 30, 2025
Why does the green charged LED light up quickly on my DieHard Battery Charger?
- B
  Brittany HudsonJul 30, 2025
  If the green Charged LED lights up shortly after connecting the DieHard Battery Charger to the battery, it could mean the battery is already fully or recently charged, resulting in a high voltage. To address this, if the battery is in a vehicle, turn on the headlights for a few minutes to lower the battery voltage and then try charging again. You can also reset the charger by unplugging it or briefly disconnecting the negative battery clip. Make sure to select the correct charge rate and battery type afterward.
K
Kimberly TorresAug 5, 2025
How to activate charging on my DieHard 200.71225 Battery Charger?
- C
  Cody LongAug 5, 2025
  If the battery is connected, the DieHard Battery Charger is on, but it isn’t charging, it might be in tester mode instead of charge mode. To fix this, press the CHARGE RATE button to start charging and choose a charge rate.
H
hmartinAug 11, 2025
What to do if the check LED flashes on my DieHard 200.71225 Battery Charger?
- K
  kanemeganAug 12, 2025
  If the Check (red) LED always flashes on your DieHard Battery Charger before the battery is fully charged, it could be due to selecting the wrong battery type. This can also occur if the battery doesn't fully charge within 24 hours, possibly because it's too large or requires more power than the charger can provide in that time. The battery itself might also be faulty. To resolve this, reset the charger by unplugging it and plugging it back in, or briefly disconnecting the negative battery clip. Then, select the correct charge rate and battery type, if necessary.
K
Kerry BoltonAug 17, 2025
What to do if the engine crank time is less than specified with my DieHard 200.71225?
- T
  Tonya SolomonAug 17, 2025
  If your engine crank time is less than specified when using the DieHard Battery Charger, the starter motor might be drawing more than 80 Amps. To resolve this, charge the battery at the 30A rate for 10 to 15 minutes, then try cranking the engine.
S
Sandra DavisAug 23, 2025
Why are the indicator lights on my DieHard 200.71225 flashing erratically?
- J
  Jack MillerAug 23, 2025
  If the indicator lights on your DieHard Battery Charger are lit erratically in a way not described in the operating instructions, you may have accidentally activated a special diagnostic mode, or the charger could be defective. Ensure nothing is touching the control panel, then unplug the charger and plug it back in. If the issue persists, return it to the place of purchase for a replacement.
