5 mainTenance
ALWAYS ENSURE THAT THE HYDRAULIC MOTOR IS PRIMED WITH HYDRAULIC FLUID PRIOR TO USE FOLLOWING
ANY REPAIRS TO THE TRENCHER, OR THE PARENT MACHINE IF A LEAK IS DETECTED WHILE CONNECTED TO
THE TRENCHER. DO NOT ALLOW THE TRENCHER TO RUN WITHOUT OIL AT ANY TIME.
NOSE ROLLER BEARING REPLACEMENT
1. To replace the nose roller bearing,
rstly remove circlip using a pair of
straight circlip pliers Fig 1.
2. Use a press to push the
bearing out ensuring the pipe
underneath is larger than the
bearing Fig 2.

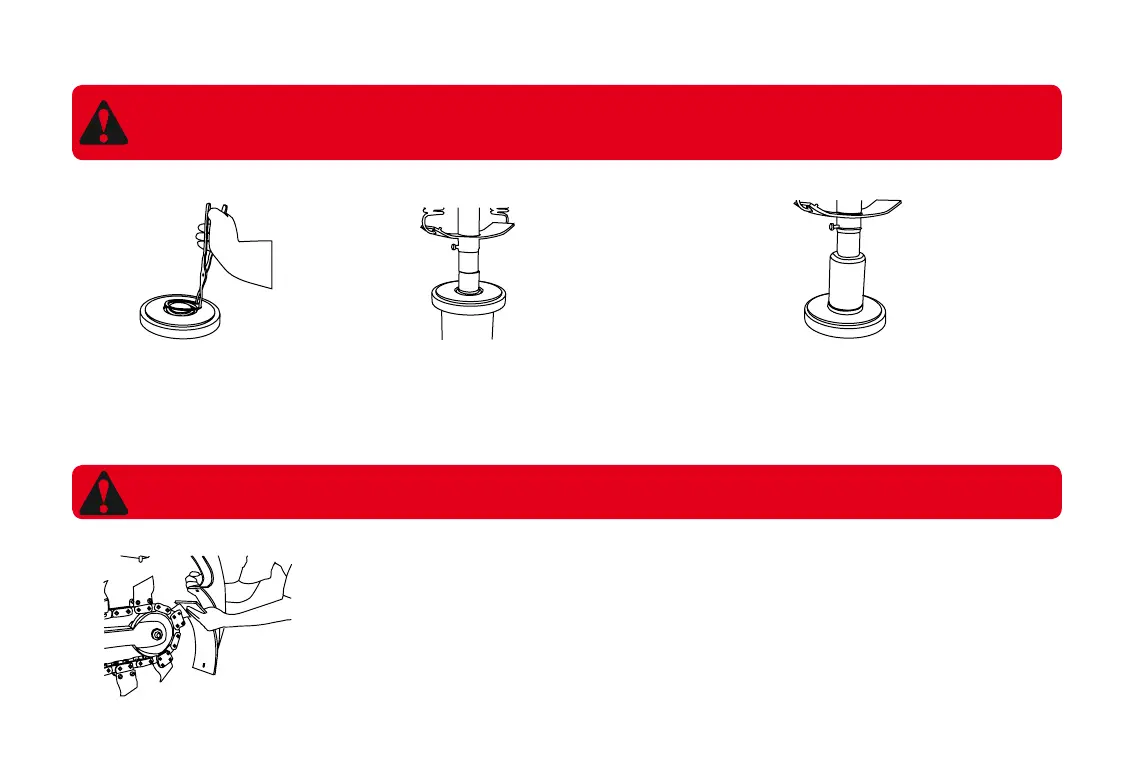

Fig 1 Fig 2 Fig 3
SCRAPER SHOE REPLACEMENT
SCRAPER SHOE (PLASTIC)
The Scraper shoe is designed to be able to ip end for end when worn. This gives the operator an
extended use before replacing. To either ip or replace the shoe remove the 3 bolts. With a new shoe,
it may be at when purchased. To mould this into an arc form simply place shoe between the jaws of a
vice and over bend , replace bolts – bottom rst.
HEAVY DUTY SCRAPER SHOE (METAL)
The Heavy Duty scraper shoe is designed to be used with the Hydrive XD and the Bigfoot XD.
3. When pressing the new bearing in ensure the drift used is
the correct size. ie; The drift must sit against the outside shell of
the bearing being careful not to damage the ring that holds the
bearing together, make sure the bearing is sitting against the lip on
the opposite side of the nose roller and replace circlip.
NOTE: A HAMMER IS NOT RECOMMENDED FOR THIS PROCEDURE AS IT CAN DAMAGE THE
NEW BEARING.
